Compete line to produce metallized labels, packaging paper, gift wrap papers, metallized foils

Consisting of the following main components:

- Laquering machine

Speed: max. 700 m/min
Working width: max. 1.735mm
Capacity: max. 100t/day
Amount of application: 1 – 1,5 g/m²
Outer diameter: max. 1250 mm

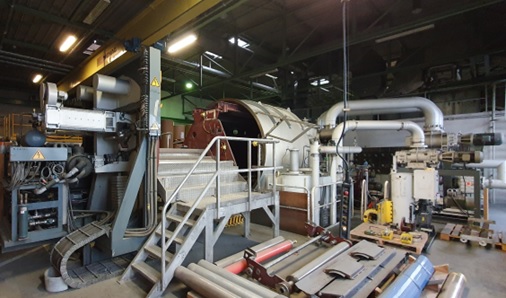

- Vacuum metallizer 1

Speed: max. 12 m/s (720 m/min)
Working width: max. 1.720 mm
Working vacuum: 10-4 mbar
Aluminium layer thickness: 40 mg/m²
Outer diameter: max. 1230 mm

- Vacuum metallizer 2

Speed: max. 17 m/s (1020 m/min)
Working width: max. 2.250 mm
Working vacuum: 10-4 mbar
Aluminium layer thickness: 40 mg/m²
Outer diameter: max. 1250 mm

- Goebel Optislit rewinder

Speed: max. 1.600 m/min
Working width: max. 2.000 mm; min. 440 mm
Cutting width: 170 – 1995 mm
Outer diameter: max. 1250 mm

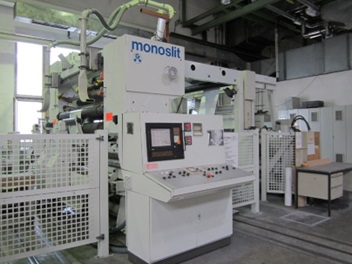

- Goebel Monoslit rewinder

Working width: max. 1.800 mm; min. 400 mm
Cutting width: 350 – 1.800 mm
Roll weight: max. 1.500 kg
Material thickness: 8 - 100µm
Outer diameter: unwind max. 1200 mm; rewind max. 1000 mm

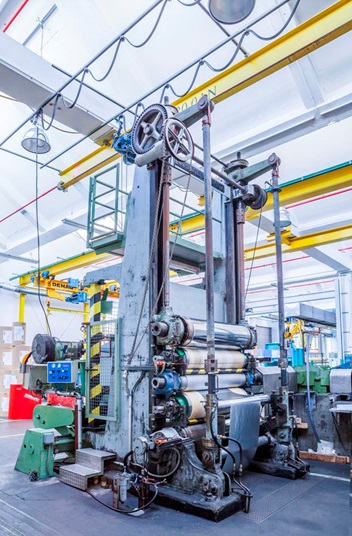

- Embossing calander

Design Speed: max. 540 m/min (Production Speed 450 -500 m/min)
Design Linear load: 20 – 220 N/mm (Production linear load. 70 N/mm)
Working width: max. 1.200 mm
Roll weight: max. 1.200 kg
Outer diameter: unwind max. 1040 mm; winding max. 1060 mm

- Sheet cutter

Speed: max. 120 m/min (approx. 70 m/min)
Working width: max. 1.630 mm
Cutting width: 400 – 1.630 mm
Cutting length: 400 – 1.650 mm
Reels: min. 3 reels
Outer diameter: max. 1060 mm
