Used paper bags machine W&M + Alina 650 flexo printing 4 colors

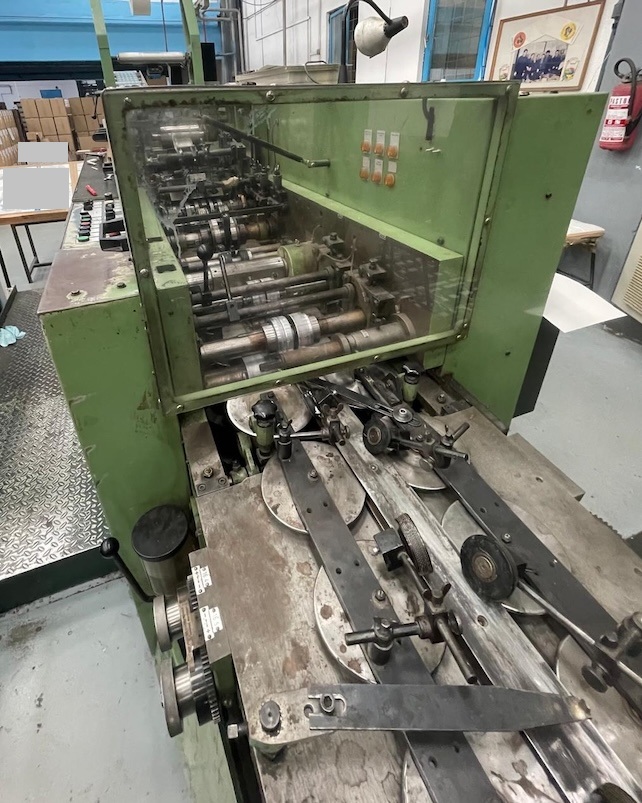

It is one of the world’s most sought-after and robust block-bottom bag machines for producing small-format paper bags.

The configuration in question consists of a combination of a paper bag machine and a flexographic printing unit.

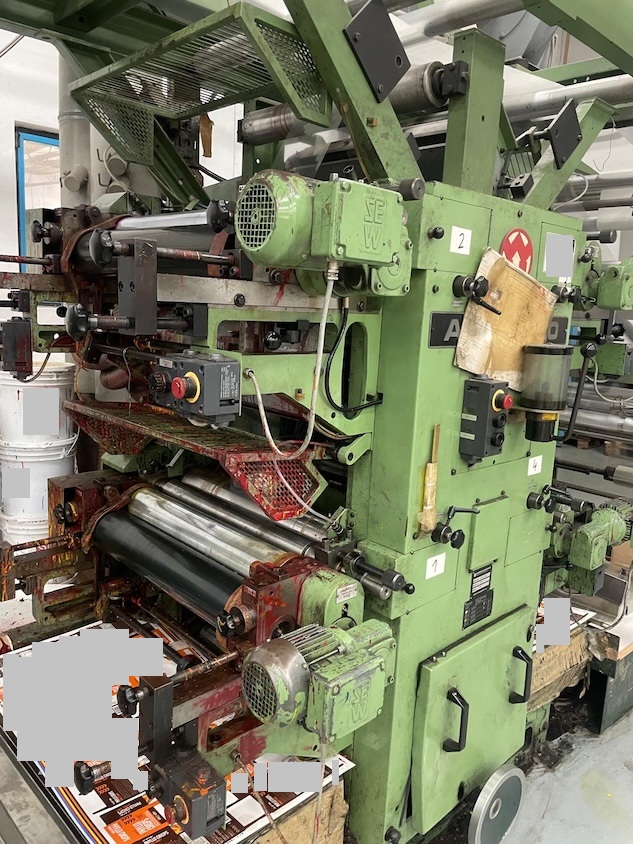

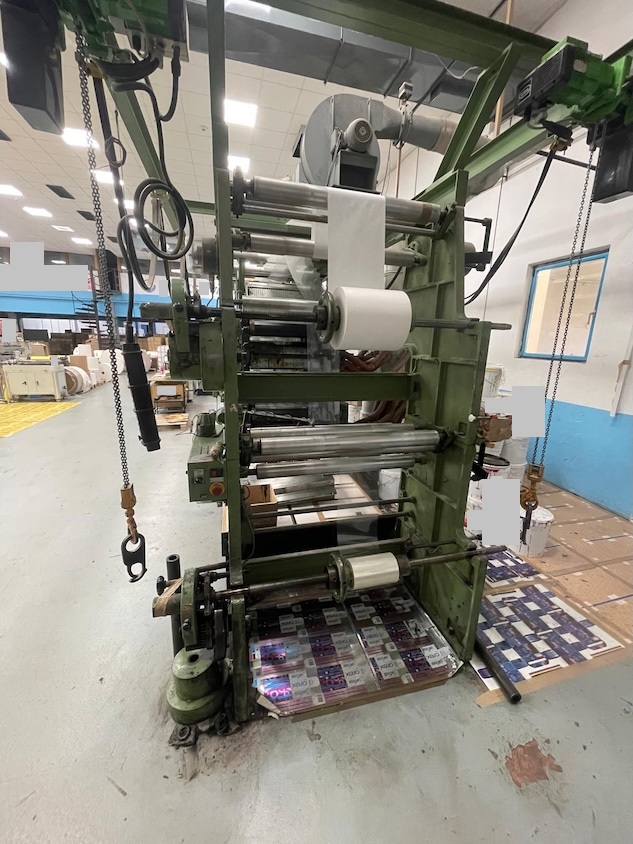

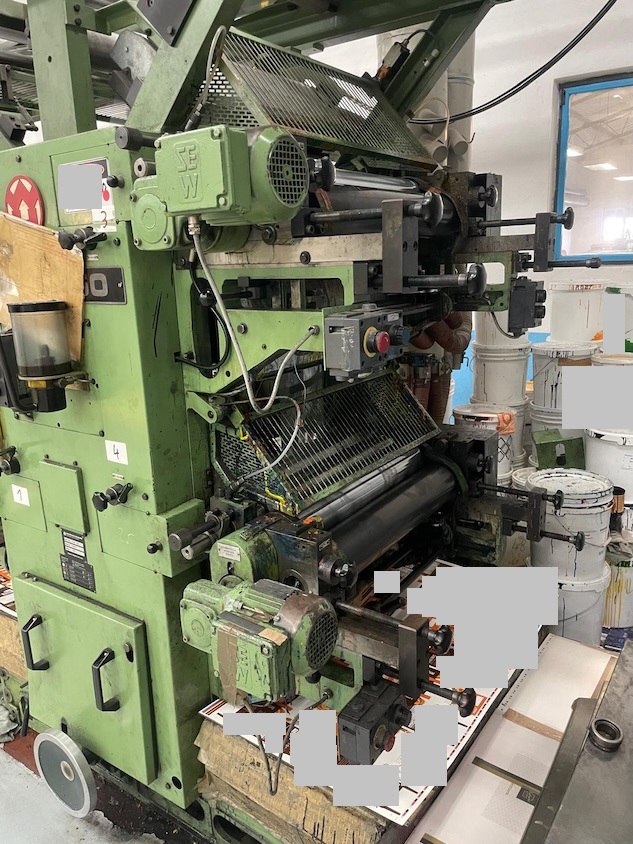

The Alina 650 is a flexographic printing unit designed for inline operation.

It is positioned directly upstream of the bag machine to print the paper web prior to the bag-forming process.

Print width / web width: Maximum 650 mm

Printing units: 4-color stack configuration

Function: Enables precise, synchronized printing of the packaging paper during the production process, controlled via gear-driven format lengths or modern registration control systems (photocells).

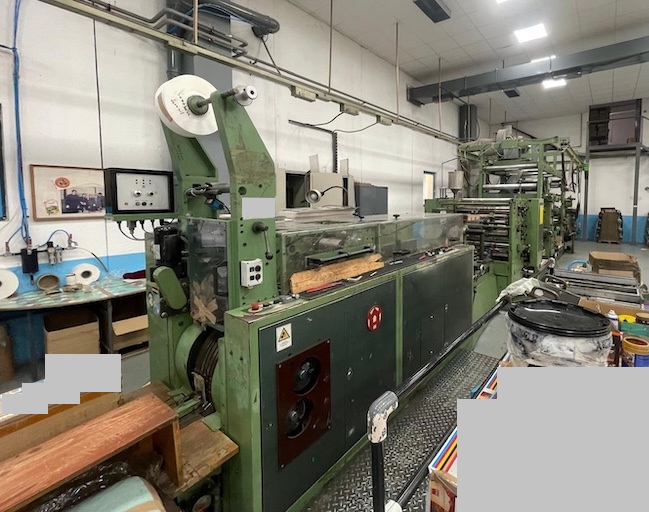

In summary, this setup constitutes a highly efficient, classic production line for the direct manufacture of printed paper block-bottom bags from the reel.

Fully equipped

Parameter Range / Specification

Bag width 70 – 230 mm

Bottom width 40 – 140 mm

Cut length 200 – 470 mm

Reel width max. 770 mm

Reel diameter max. 1300 mm

Production output Depending on year of manufacture/model: up to 12,000 bags/hour (older or used mechanical versions)
