Querschneider

Gebrauchte Querschneider für die Papierindustrie. Gebrauchte Querschneider für Papier aller Hersteller. Querschneider werden dazu verwendet um fertige Papier- oder Kartonrollen zu Bogen zu verarbeiten.

Hauptbild Name Hersteller Typ Größe Kapazität

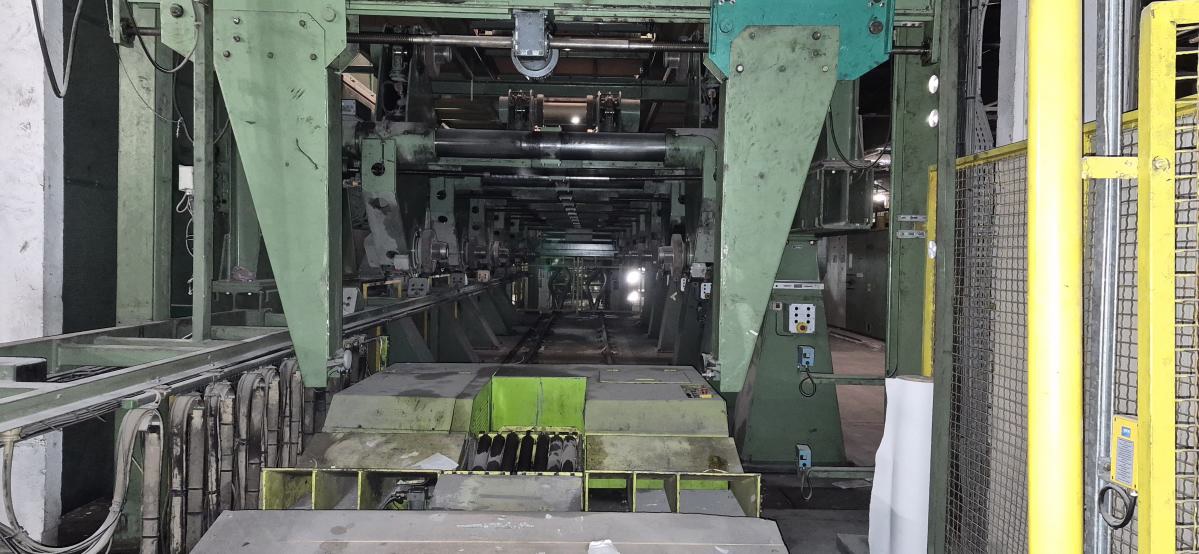

Kartonquerschneider Jagenberg 2150 mm

Jagenberg 2150 mm width 2150 mm 350 m/min

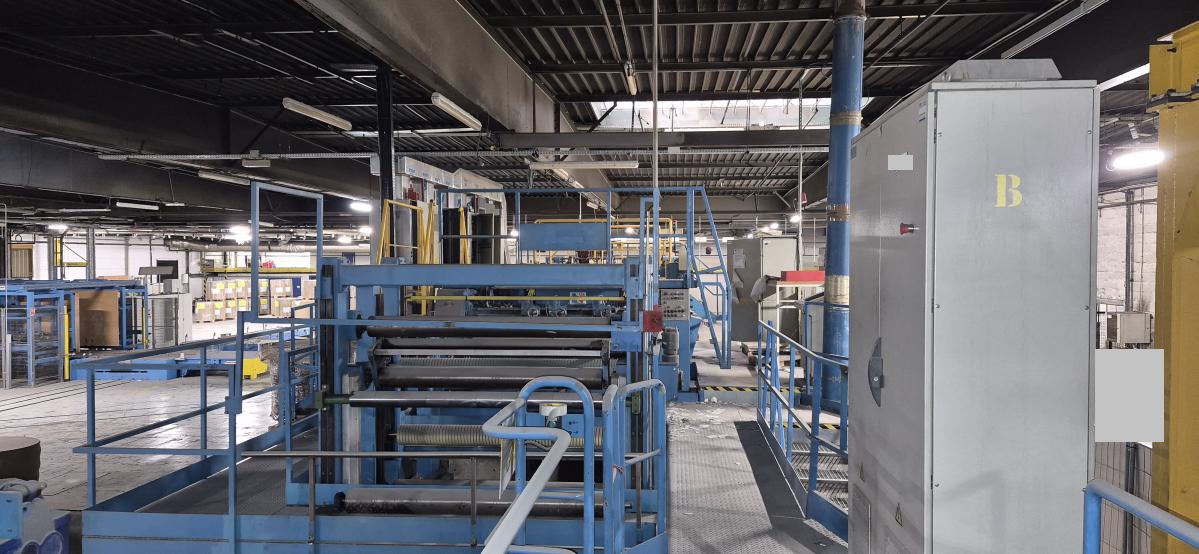

Synchro Querschneider Jagenberg 1600 mm

Manufacturer: Jagenberg Type Syncro Sprint 300 - 1650 Year: 1990 ies Number of unwind stands 2 x 8 Splicing detector: 1 Laser (trimmer position) Number of circular blocks: 1 Auto format adjustment: no Pallet stacking: palletomat Reverse speed: stopped Diam reel min. technical: 430 mm Diam reel min. work: 500 mm Diam reel max. 1350 mm reel width min.: 480 mm reel width max.: 1600 mm (max. roll weight: 2500 kg) Standard core: 150 Min length cut 450 mm Max. length cut: 160 mm Width min. cut - single format: 450 mm Width min cut - multiple format: 2x320 mm Width max. cut: 1480 mm Min. trimming: 20 mm (30mm for roll < 950 mm) Max. trimming: 100 mm (110 mm for roll < 950 mm) Max.pallet height: 1700 mm No. of pal. max stacking: 2 Pallet format max 1210 x 1610 mm min single stack 440 x 660 mm Max. knife load: 920 g Calculation of the knife load: 8 x 115 Min. mechanical speed 120 m/min Max. mechanical speed 250 m / min

Jagenberg Synchro 1650 1600 mm 250 m/min

Kompakter Querschneider 1400 mm SHM

Comapct sheet cutter

Manufacturer:       SHM - Strachan Henshaw Machinery
Cut width:            1400 mm
Working speed:    200 m/mm max. (depending on material and sheet length)
Knife load:           600 g/m²
Cut length:           400 mm – 1.500 mm

Unwind stands:
Unwind reel diameter:    1.000 mm
Reel width:        1.400 mm

Pile height:        1.300 mm (with pallet)
Power supply:    standard three-phase
Air supply:         5,5 bars
Air consumption:   0,085 m³/mn

Machine dimensions:
-    High speed:   Length: 5,2 m
-    Compact:      Length: 3,1 m, Width: 1,9 m, Heigth: 1,9 m

SHM Strachan Henshaw 1400 mm 200 m/min

ECH Will DIN A4 Linie mit Verpackung



Gebrauchte DIN A4 Papier Linie,  mit Verpackungslinie

Manufacturer Will

Manufacturing Year    1974
Paper width mm    1150

Type    SLK 115
Speed m/min    250

Max unwind.    1500

Complete A4-Line with wrapping line

Five reel unwinding stand
lifting carriage from floor level
reel centering cart in the floor
Over head paper transfer, five paper web decurlers

Main Will machine
Punching unit for holes, DIN 2, DIN 4, as well as Scandinavian standards
Slitting station with six slitters
trim suction with trim fan
Dust removal
Syncro Fly rotary cutting head set up for cutting length of 297 mm
(max rotary 1000 cuts per min)
Max knife load 420 gsm
Paper delivery in 5 pockets
PLC-Siemens S-7 300, added in 2009
Main drive: AC motor 30 Kw with Vacon VFD

possibility to add a cover sheet

Wrapmatic A4 ream wrapper
Nordson gluing station.
Unwinding stand for either paper or plastic, cutting with "cut to print" possible
Heat sealing at exit of wrapper
PLC - Siemens S7-300
Label machine

Possibility to bypass ream wrapper to put directly in boxes

Stacker, made Will
Type ACCU-25, made in 1993
rebuilt with safety gates in 2004
PLC- Siemens S7-300

Cartoniser
Made by Meco Pack AB (Sweden)
Carton box maker and lid making boxing machine
Made in 1996
Label machine at exit, also with possibility for ink marking

Mosca strapping machine
with one turning table before and one after.
Able to put one or two straps, either cross or lengthwise.
Siemens PLC

Palletising machine
Automatic with possibility for several different patterns of palletising.
Made by Leng in 2004, (Sweden)


Will SLK115 1150 mm 250 m/min

Querschneider Jagenberg Synchro 1650 mm, refurbished



Gebrauchter Querschneider vom Hersteller Jagenberg. Diese Maschine wurde  2010 komplett überholt.
Baujahr:                         1991
Überholungen:                 2010 -  Komplette Maschine - Siemens S7
Arbeitsbreite:                  1.650 mm
Abrollungen:                     5
Max Abrolldurchmesser:  1.500 mm
Max Schneidelänge:        1.600 mm
Min Schneidelänge:         420 mm
V -max:                          350 m/min.

Jagenberg 35 - 165 1650 mm 350 m/min

Kartonquerschneider Pasaban 1600

Gebrauchter Kartonquerschneider vom Hersteller Pasaban  1600

Diese Maschine kann im Betrieb besichtigt werden.

Pasaban 1600 mm 1600 mm
