Ausrüstung und Verarbeitung

Gebrauchte Maschinen für die Druck- und Papierindustrie; Gebrauchte Maschinen zum Schneiden von Papier, Pappe und Zellstoff, Wickelmaschinen für Papierrollen; Gebrauchte Riesverpackungsmaschinen, Gebrauchte Abwickelmaschinen für Papierrollen, Gebrauchte Papierkalander us.w.

Hauptbild Name Hersteller Typ Größe Kapazität

Wellpappenmaschine Peters 2150 mm Flute B, C, BC.

Width:                2.150 mm

Max cut length:   5.000 mm

Min cut length:      600 mm

Flute type     B, C, BC          B FLUTE: 3mm    C FLUTE: 4mm    BC FLUTE: Double Wall – 6mm -Combination of B + C flute



The corrugator itself is consisting of the following main components:



Component

Manufacturer

Type

Single Facer 1

Peters

Single Star 209

Roll stand 1

Favalessa

Typ PBF 182

Splicer 1

Torres

Typ 964

Roll stand 2

Favalessa

Typ PBF 182

Splicer 2

Torres

Typ 964

Single Facer 2

Peters

Single Star 209

Roll stand 3

Favalessa

Typ PBF 182

Splicer 3

Torres

Typ 964

Roll stand 4

Favalessa

Typ PBF 182

Splicer4

Torres

Typ 964

Glue unit

Peters

Gluemaster S Typ 313

Roll stand Glue unit

Favalessa

Typ PBF 182

Splicer Glue unit

Peters

Typ 964

Triple
Peheater

Favalessa

TYP PRF 900

Double backer

Peters

Thermoplan Typ 311

Rotary shear

Peters

Maxi-Cut Typ 318

Slitter scorer

Göpfert

125 RSA

Cut-off knife

Peters

Speed-Cut Typ 514

Stacker

Favalessa

RAF 602

Peters Corrugated board sheets - Flute B, C, BC. 2150 mm ca 200 m/min

Corrugator / Wellpappenmaschine 2500 mm

Manufacturer:                                              BHS

Type:                                                             WPA 2500

Width:                                                           2500 mm

Max. Size:                                                     4500 mm

Min Size:                                                      500 mm

Flute types:                                                  E, EE, B, BB, EB, C, BC

Speed max.                                                  300m/min

Basis made in the 1990 ies

Consisting of the following main components:



Single Facer 1

BHS

MCF

Roll stand 1

BHS

ASR-M

Splicer 1

BHS

ARW-M 300

Roll stand 2

BHS

ASR-M

Splicer 2

BHS

ARW-M 400

Single Facer 2

BHS

MF

Roll stand 3

BHS

ASR-M

Splicer 3

BHS

ARW-M 300

Roll stand 4

BHS

ASR-M

Splicer4

BHS

ARW-M 300

Glue unit

Kohler

Coating

Iso Bar

Glue Machine

Roll stand Glue unit

BHS

ASR-M

Splicer Glue unit

BHS

ARW-M 300

Triple
Preheater

BHS

VZR-M

Double backer

BHS

DWR-M

Rotary shear

BHS

KQ-M

Slitter scorer

Göpfert

RSA 1.1 145

Com 669/90-01

Cut-off knife

Göpfert

RSK-225

Stacker

BHS

AAR - H

Additional units

Kohler Coating

Waterdeck

Tear tape applicator

MUK Elmshorn

208/308

( incl- Trimmaster)

Steam system

Baviera

-

Glue kitchen

Emslandstärke

-

BHS cutted sheets corrugated board 2500 mm 300 m/min

Produktionslinie für metallisiertes Papier

Compete line to produce metallized labels, packaging paper, gift wrap papers, metallized foils

Consisting of the following main components:

- Laquering machine

Speed: max. 700 m/min
Working width: max. 1.735mm
Capacity: max. 100t/day
Amount of application: 1 – 1,5 g/m²
Outer diameter: max. 1250 mm


- Vacuum metallizer 1

Speed: max. 12 m/s (720 m/min)
Working width: max. 1.720 mm
Working vacuum: 10-4 mbar
Aluminium layer thickness: 40 mg/m²
Outer diameter: max. 1230 mm


- Vacuum metallizer 2

Speed: max. 17 m/s (1020 m/min)
Working width: max. 2.250 mm
Working vacuum: 10-4 mbar
Aluminium layer thickness: 40 mg/m²
Outer diameter: max. 1250 mm


- Goebel Optislit rewinder

Speed: max. 1.600 m/min
Working width: max. 2.000 mm; min. 440 mm
Cutting width: 170 – 1995 mm
Outer diameter: max. 1250 mm



- Goebel Monoslit rewinder

Working width: max. 1.800 mm; min. 400 mm
Cutting width: 350 – 1.800 mm
Roll weight: max. 1.500 kg
Material thickness: 8 - 100µm
Outer diameter: unwind max. 1200 mm; rewind max. 1000 mm


- Embossing calander

Design Speed: max. 540 m/min (Production Speed 450 -500 m/min)
Design Linear load: 20 – 220 N/mm (Production linear load. 70 N/mm)
Working width: max. 1.200 mm
Roll weight: max. 1.200 kg
Outer diameter: unwind max. 1040 mm; winding max. 1060 mm


- Sheet cutter

Speed: max. 120 m/min (approx. 70 m/min)
Working width: max. 1.630 mm
Cutting width: 400 – 1.630 mm
Cutting length: 400 – 1.650 mm
Reels: min. 3 reels
Outer diameter: max. 1060 mm

Different european brand manufacturer All kind of metallized papers

Umroller Jagenberg

Slitter rewinder, pick up unwind stand, Shaft rewinding, width ca 1100 mm

Jagenberg ca 1100 mm 300 m/min

Planschneider Polar Mohr 76 cm

Polar Mohr 76 SDP 76 cm

Schneideanlage zum Schneiden von Folien

Max. Materialbreite: 1700 mm

Max. Rollendurchmesser: 800 mm

Innendurchmesser Hülsen: 152 mm (6'')

Max. Rollengewicht: 750 kg

Min. Stapellänge: 250 mm

Max. Stapellänge: 2200 mm

Netzanschluss: 3*400V / 50Hz + MP und Schutzleiter

Nennbetriebsstrom: 12 KVA

Absicherung: 32A

Druckluft Systemdruck: min. 5 bar

Drukluft Verbrauch: ca. 100-150l (Normalliter / min)

Umgebungstemperatur: +18°C bis +24°C

Toleranz: bis 1000 mm Länge +/- 0,5 mm

              ab 1000 mm Länge +/- 0,5%

Robust FSM

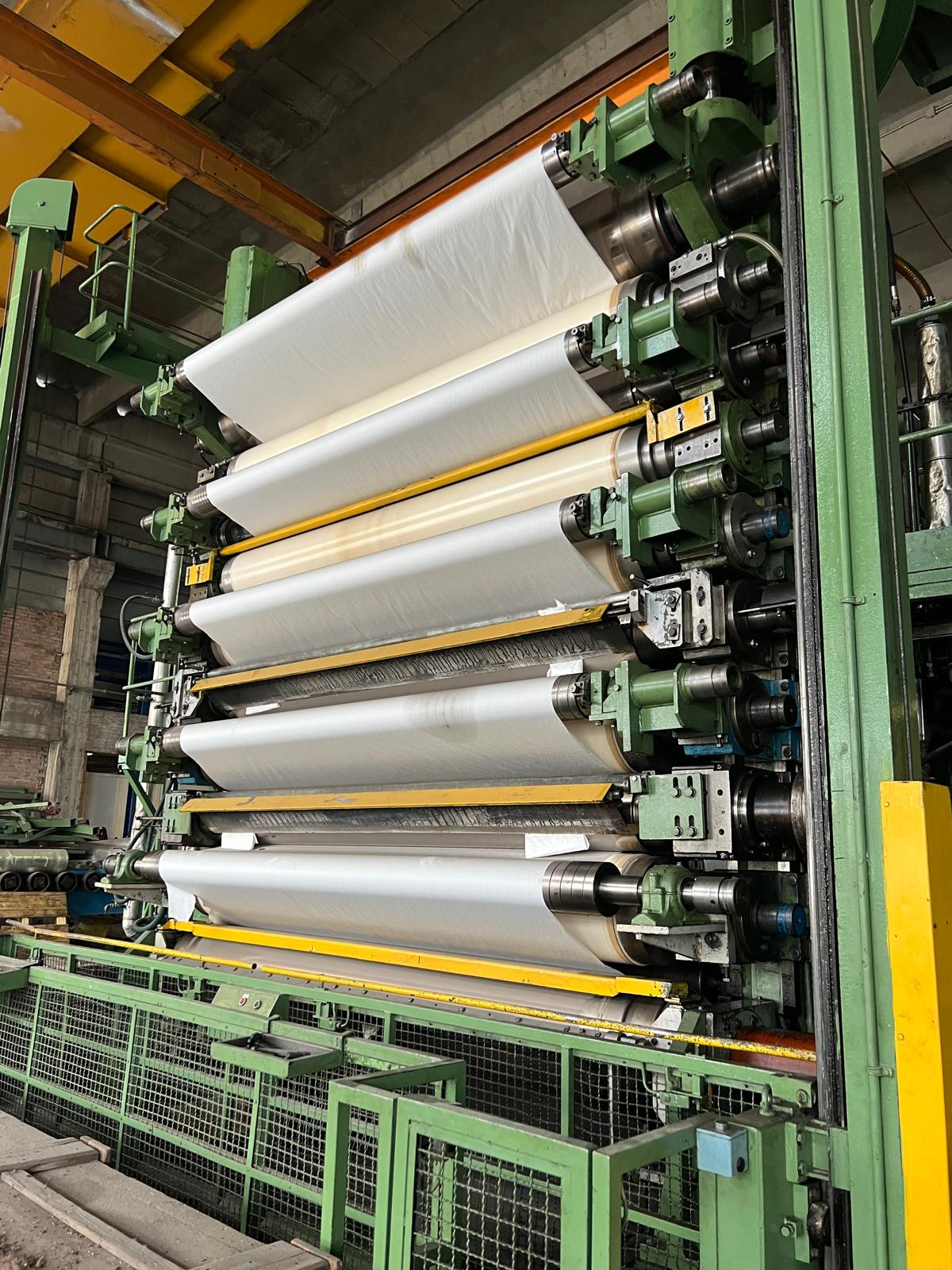

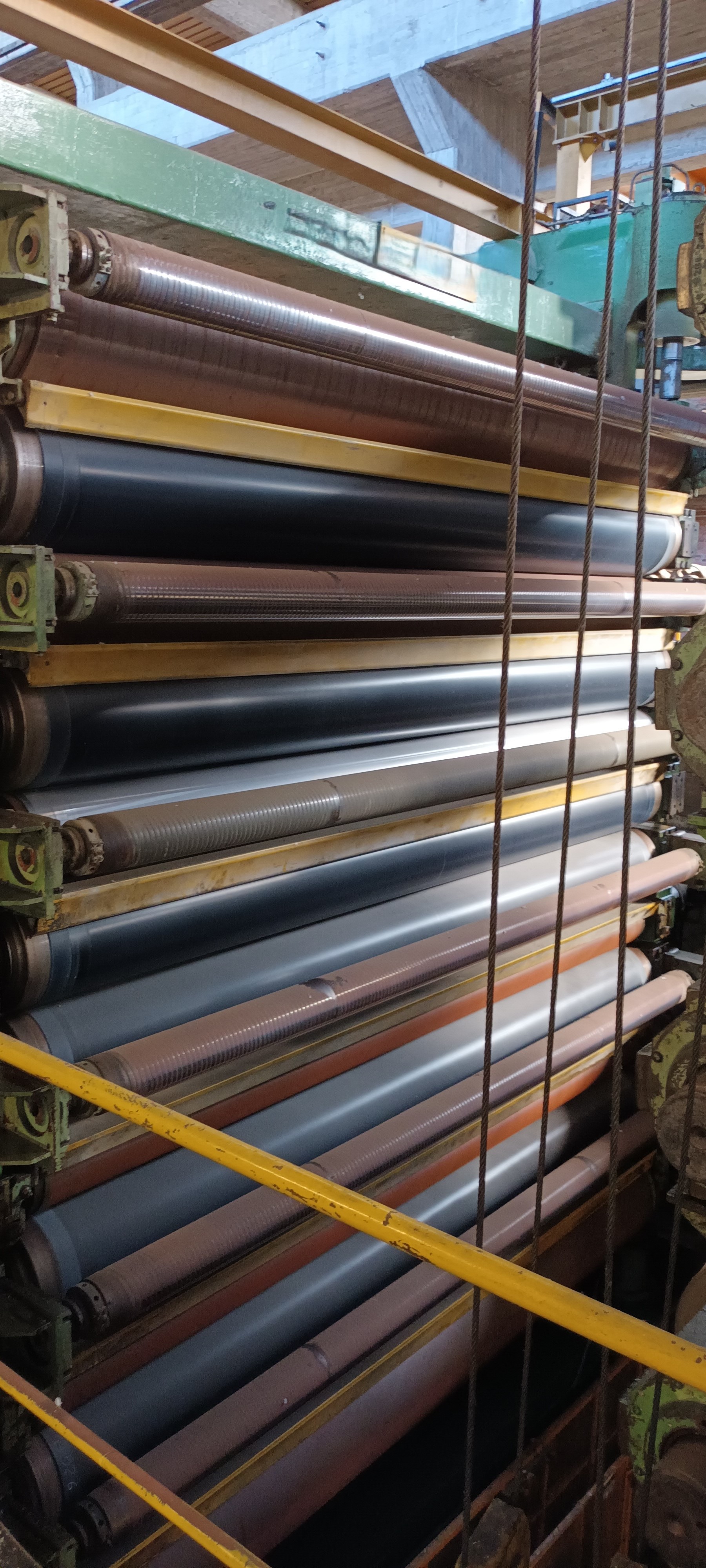

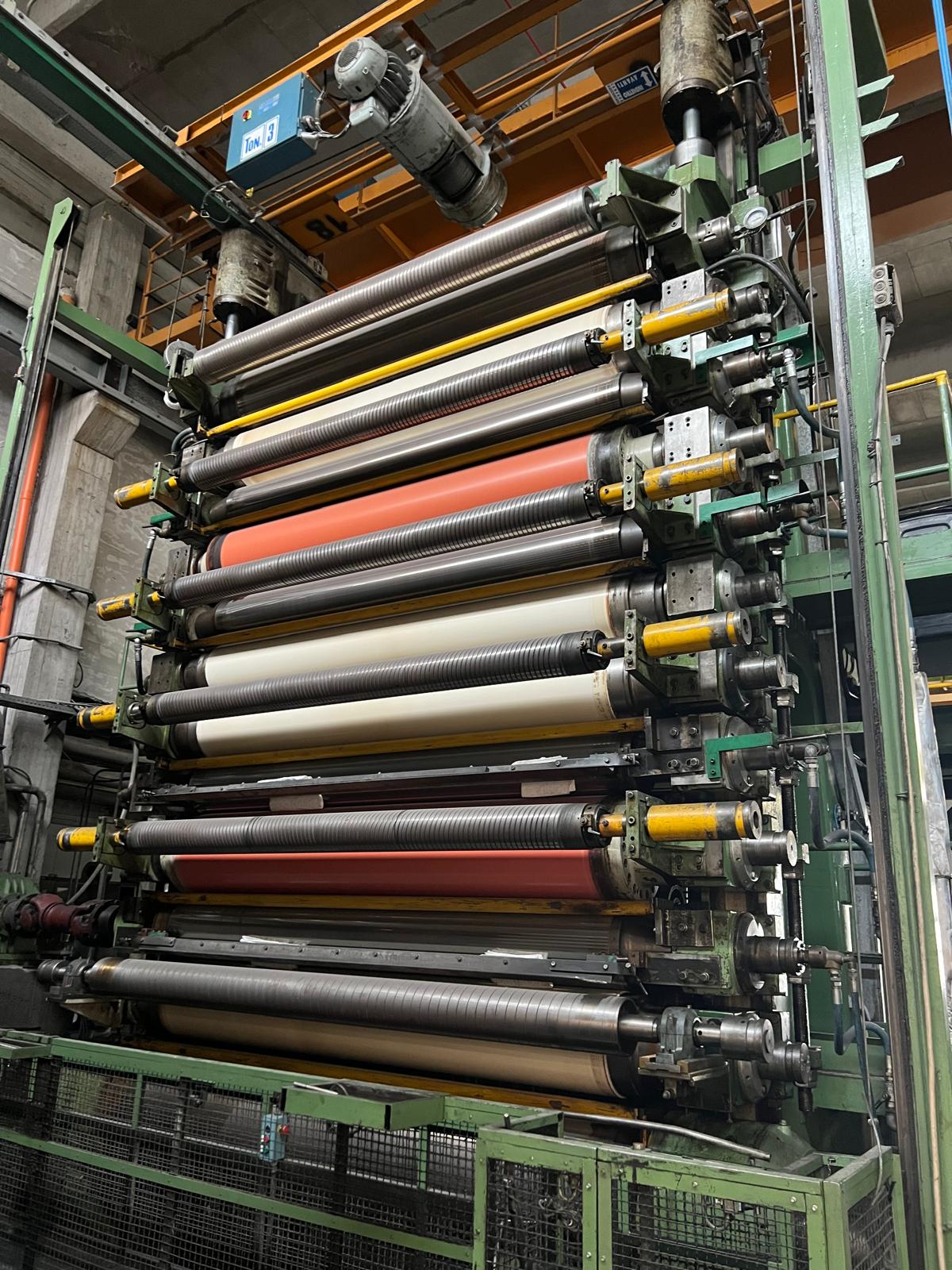

Superkalander Laborkalander / Pilotkalander 550 mm Breite

12 nips

Web width: 550 mm

Geschwindigkeit: 2500 m/min

30 - 550 kN/m

200°C

European brand manufacturer Supercalander ca 550 mm

Ballenpresse Paal Paal Pakomat 1S

Ballenmasse 80 x 80 cm, Länge einstellbar ca 100 - 120 cm

Die Presse hat eine automatische Verdrillung, eine Staubabsaugung der Firma Höcker-Polytechnik und ein Rohrleitungssystem.

Paal Paal Pakomat 1S

Wellpappenmaschine 140 -250 cm, E Welle

Flute Type : E
Processing : One-sided
Flute height : 1.23 (excluding paper thickness)
Pitch : 3.2mm
Wave Factor : 1.315

Working width : max: 250 cm min: 140 cm
Working width : from 74 to 140 cm possible with extra changeover time due to places
dummy
Roll width net: max: 245 cm min: 7.3 cm
Minimum ridge: total: 3.5 cm
Maximum row : 2 x 12 cm
Roll length : max: 800 mtr min: 90 mtr
Processable gr/m2 : max: 150 gr. min: 38 gr
Number of lanes maximum : 22 lanes
Printing options : no (1)
Core diameter : 15.3 cm (standard) 76 mm possible
Winding : Corrugation inside and/or outside, winding only on tube
Paper roll weight : max: 3000 kg dia: 125 cm
Diameter paper tube: max: 10 cm min: 7 cm

Peters, Garant, E flute min 1400 mm max 2500 mm

Corrugator 103 - 160 cm, B-Flute

Flute profile : B Flute
Processing : One-sided
Flute height : 2.34 (excluding paper thickness)
Pitch : 5.7mm
Flute Factor : 1.39

Working width : max: 165 cm min: 103 cm
Roll width net: max: 160 cm min: 7.3 cm
Minimum ridge: total: 3 cm
Roll length : max: 400 mtr min: 70 mtr
           480 mtr (squashed)
Processable gr/m2 : max: 150 gr. min: 38 gr
Number of lanes maximum: 14 lanes (more possible in consultation)
Number of crease lines : n.a.
Score distance : n.a.
T version: no
Score distances T-version : adjustable
Wrapping: inside and outside
Printing options: no
 Flatten wave: yes
 Core diameter : max: 15.3 cm min: 15.3 cm (10 cm possible )
 Winding : Only on core
 Paper roll weight : max: 2000 kg dia: 125 cm
 Diameter paper core : max: 7.5 cm min: 7 cm

European B -Flute 103 - 160 cm
