Tissueverarbeitung und Verpackung

Hauptbild Name Hersteller Typ Größe Kapazität

Several different tissue paper converting machines

1. Automatic handkerchief production line - fully automatic. Productivity – 35 packs per minute.

2. Bandsaw with self-sharpening tape for cutting toilet paper and kitchen rolls.

3. Napkin machine with one printing section. Productivity: 500 pieces per minute.

4. Napkin machine with two printing sections.  Productivity: 600 – 650 pieces per minute.

5. Napkin machine. Productivity: 650 – 700 pieces per minute.

6. Production line for cardboard spools. Capacity: 12 meters/~39ft per minute.

7. Production line for toilet paper and kitchen towel rolls. Productivity: 90 tons/198,416 lbs per month.

8.Production machine for toilet paper and kitchen towel rolls with Deco system and lamination. Productivity: 90 tons/198,416 per month.

9. Production machine for toilet paper and kitchen towel rolls. Productivity: 150 tons/330,693 lbs per month.

10. Production machine for V-shaped hand towels with a vacuum-folding system.

Productivity: 1) V – hand towels – 450 pieces per minute. 2) V - fold toilet paper 3x17g / 3x0.60oz - 450 pieces per minute.

11. Unrolling and slitting machine for sanitary paper. Productivity: 4000 – 5000 kilograms/8,818 - 11,023 lbs daily.

Several different tissue paper converting machines

CASMATIC Bundler CMB 150


Technical details:
Infeed:  Automatic
Operation:  Electro-mechanical/pneumatic
Max. machine speed:  14 cycles/min.
Max. production speed:  13 cycles/min.
Roll infeed height:  770 mm
Pack exit height:  1150 mm
Weight:  5500 kg (approx)
Av. size change-over time:  35 min. (approx) 2 Operators
Av. size adjustment time:  20 min. (approx) 2 Operators
Roll change time:  5 minutes
Ambient conditions
• Temperature from +5 to +40°C
• Relative humidity Max. 70%

PNEUMATIC SYSTEM
Air pressure:  6 bar
Compressed air consumption Max.:  800 Nl/min


ELECTRICAL SYSTEM (STANDARD)
Installed power:  23.5 KVA
Standard voltage:  3x380/415/440 V (+/- 5%) + earth
Voltage variation:  +/- 5%
Frequency:  50/60 Hz
Neutral wire:  None
Electrical cabinet voltage:  220 V AC
PLC I/O card voltage
• Inputs/outputs 24 V DC
• Solenoid valve outputs 24 V DC
• Contactor outputs 24 V DC


PRODUCTS TO BE PACKED
Pack height (H) from 95 to 305 mm
Pack width (W) from 95 to 560 mm
Pack length (L1) from 190 to 560 mm

FINISHED PACKAGE DIMENSIONS
Pack width (W):  From 330 to 780 mm
Max.:  850 con H 250mm
Max.:  700 con H 345mm
Max.:  720 con H 400mm
Pack length:  (L) From 200 to 800 mm
Pack height:  (H) From 195 to 305 mm
400 mm (Optional)



CASMATIC S.p.a CMB 150

Damenbindemaschine BICMA

Sanitary Napkins /  towel / pad machine made by BICMA (Germany) in very good condition

Working direction seen from the operator's side: from the right to the left
Fabrication of the products in the machine: lengthwise, (single layer)
Production centre: 225 mm from the mounting plate
Tranfer conveyor height to packaging machine: 1100 mm
production speed.: 120 m/min
air pressure: min. 6 - max.8 bar
air quantity: min. 1500 ltrs/min
water pressure: min. 3 – max. 4 bar
water quantity: min. 100 l/h

BICMA Hygiene Technologie GmbH BI 13-00

Tissue paper converting machines to produce toilet rolls

Consiting of following components

Core Machine
Core Loader
1° Unwinding Stand
2° Unwinding Stand
3° Unwinding Stand
Print set 1  Colour
Print set 2  Colour
Embossing Set
Rewinder
Tail Sailer
Accumulator 1
Accumulator 2
Log Unloader
Log Saw 1
Log Saw 2







Perini

Tissue converting machinery - doubling machine - Embossing calander - small rewinder

Machinery to produce for example high grade table cloths rolls or sanitary requirements

Consisting of

- 4 lay tissue doubling machine

- Embossing calander

- Small rewinder for product rolls

Serviettenmaschine Hobema 14 H 30 x 30 cm

Gebrauchte Serviettenmaschine Hobema 14 H-1

Hobema Napkin machine 14 H-1 30 x 30 cm

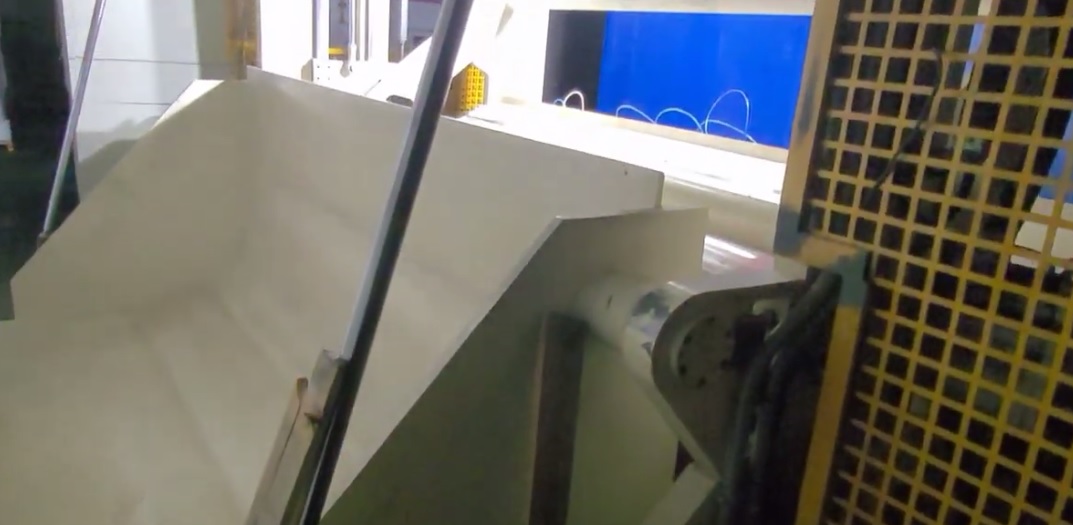

Tissue paper converting line for Toilet paper and kitchen rolls

Used tissue paper converting line, to convert tisssue mother rolls into toilet paper or kitchen rolls packed in plastic bags

Perini / Gambini Conveting line for Toilet paper / kitchen roll 2200 mm

Tissue paper converting line to produce and pack toilet paper rolls

Second hand tissue paper converting line to produce packed toilet paper rolls from tissue mother rolls, paper width 2200 mm

Perini Tissue converting line for toilet paper rolls 2200 mm

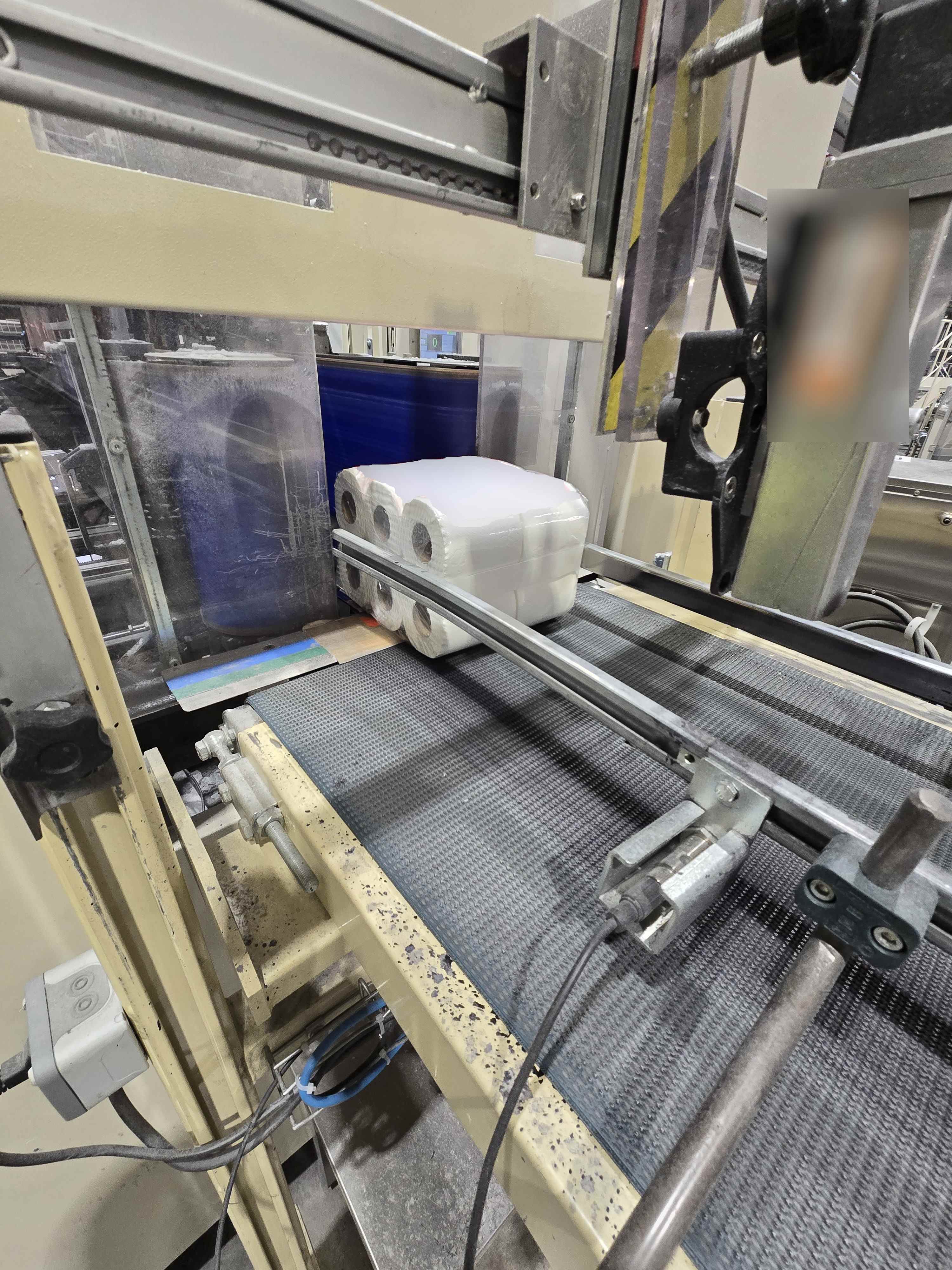

Verpackungsmaschine Casmatic CMB 150

Bundler machine Casmatic CMB150.

Machine model CMB 150
Condition: perfect(running on max speed 24h/day)
Available end of 2022.

CHARACTERISTICS
PRODUCTS TO BE PACKED
Pack height (H) from 95 to 305 mm
Pack width (W) from 95 to 560 mm
Pack length (L1) from 190 to 560 mm
FINISHED PACKAGE DIMENSIONS
Pack width (W) From 330 to 780 mm
Max. 850 con H 250mm
Max. 700 con H 345mm
Max. 720 con H 400mm
Pack length (L) From 200 to 800 mm
Pack height (H) From 195 to 305 mm
400 mm (Optional



Casmatic - Körber Paperlink CMB 150

Converting line for cosmetic tissue

- Working width: 1260 mm, no edge trimming
- tissue format: 210 mm x 205 mmm , 6 clips/log
- Core diameter: 152 mm, max. unwind diameter 2200 mm
- Formats: 100 tissue 2 – layers , 150 tissue 2 – layers
- Capacity:  72-/50 towels/minute (approx. 3000 T/a)
- Repair of folding area / transfer table necessary, spare parts available

Consiting of:

Unwind stand

Calender /Folding machine

Transfer table

Prodec Box Filler

Prodec Carton Filler

European 3000 T/a
