Converting line:

Manufacturer: Fabio Perini

Type: 702G semi-automatic slitter rewinder

Year: 1990's

Refurbished: 2000's

Line type: Start & Stop, single-roll winding

Max. line speed: up to 450 m/min

Finished roll diameter range: 110 - 600 mm

Parent-roll width: Typically around 2,680 mm, working width1800-2800mm (on documentation)

Max parent-roll diameter: approx. 1.500mm

Inner core diameter: 254 mm, 76 mm

Expandable shaft for parent reels: 76 mm with adaptors for  254 mm

Number of unwinder: 1

Embossing: Dot 13 dots cm²

Perforating length: 1 blade 630mm, 2 blades 315mm, 4 blades 157mm. Option for no perforation

Plies joining: ply-bonders

Log cutting: integrated longitudinal slitting. The minimum distance between these blades is 70 mm; accordingly, the minimum height (width) of the finished roll is also 70 mm. The step increment for changing the roll height is 10 mm.

N° of slitters: 23 working

Available core diameters: 60mm, 71mm. But the working range with specific adapters is 25-85mm.

Core types: Removable or not removable core, coreless (coreless mandrels) *Can be used variable diameters of cores. Core height must be prepared before winding.

Tail sealing: by traversing glue applicator

Rated voltage: 400V

Installed capacity: 42 kW

Number of phases: 3

Frequency: 50 Hz

Short-circuit breaking capacity of the protective device for machine avercurrents: 50 KA

Packing line:

Manufacturer: MacDue

Type: H.100/A

Year: 2000's

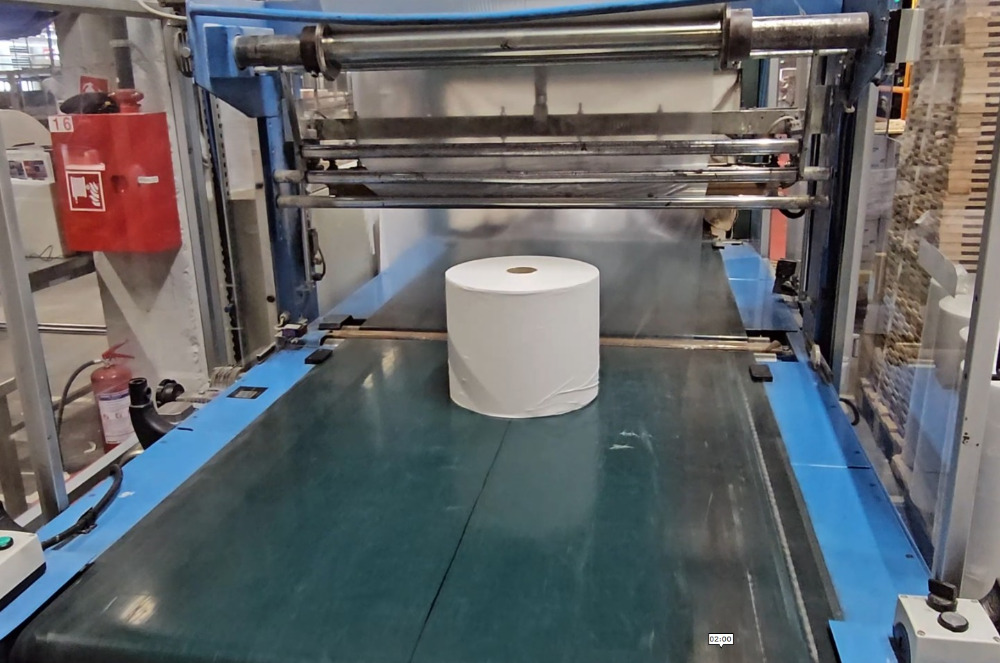

Packaging: semi-automatic bag sealing/cutting unit. Requires manually load product

Voltage: 400V

frequncy: 50 Hz

Installed capacity: 3 kW

Max. packaging bag dimensions: Width 1000mm, Height 400mm, Length up to 800mm

Termotunnel: The semi-automatic heat tunnel shrink-wraps bags of paper rolls by applying circulating hot air, and the finished package is removed manually.

Type: T.100-40

Year: 2000's

Voltage: 400V

frequency: 50 Hz(adjusted by potentiometer)

Installed capacity: 32 Kw

Max. Packaging bag dimensions: Width 1000mm, Height 400mm, Length up to 800mm
