Pumpen

Hauptbild Name Hersteller Typ Größe Kapazität

Vakuumpumpe E14 Voith

überholt

neuwertigen Läufer verfügbar

Voith E14 E14

Vakuumpumpe E9 Voith

überholt

Voith E9

Vakuumpumpe Siemens 2BE3 400 - 2BY4

Vacuum high: 3,0 mWS  - 6,8 mWS  - 4,5 mWS

Motor power: 110 kW  - 132 kW  -  90 kW

Pump rotation speed: 392/min  - 390/min  - 335/min

Motor rotation speed: 1485/min  - 589 /min

Ring water quantity: 90 l/min  - 160 l/min  - 120 l/min

Siemens 2BE3 400 - 2BY4

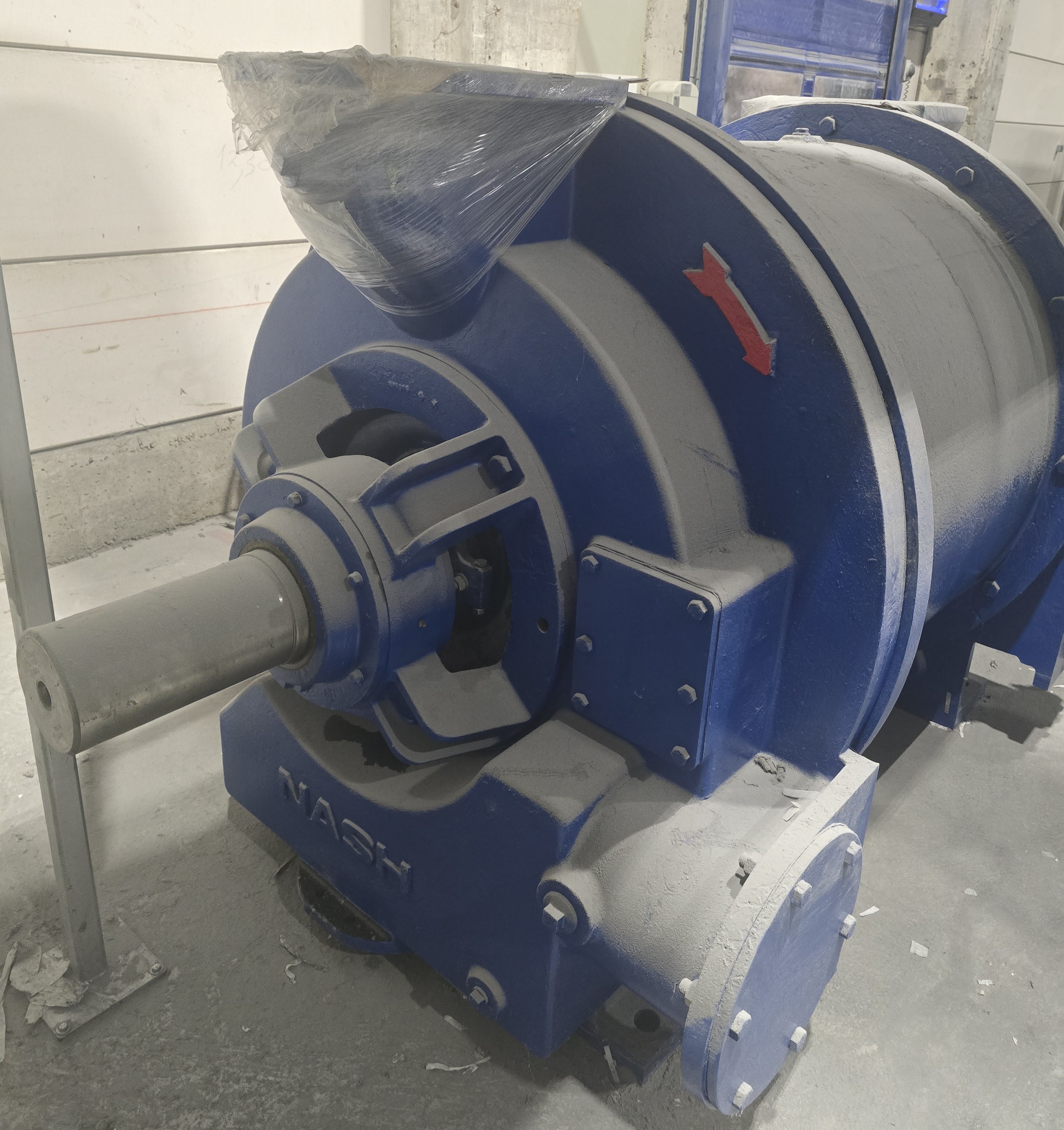

Vakuumpumpe Nash 904 P

Vacuum high: 6,8 mWS

Power imput at the shaft: 158 kW

Motor power: 200 kW

Pump rotation speed: 265/min

Motor rotation speed: 989/min

Ring water quantity: 400 l/min

Nash 904 P

Vakuumpumpe Nash CL1402

735 RPM

268 m³/h

-0,5 bar

75KW

Nash CL 1402 258 m³/h

Vakuumpumpe Siemens 2 BE1 506-BY3-Z

Vacuum high: 50 kPa / 55 kPa

Power imput at the shaft: 130 kW

Motor power: 160 kW

Pump rotation speed: 300/min / 260/min

Motor rotation speed: 990/min

Ring water quantity: 150 l/min / 230 l/min

Ring water pression: 0,5 bar

Stuffing box lubrication: 5 l/min

Stuffing box lubrication pression: 0,2 bar

Siemens 2 BE1 506-BY3-Z

Vakuumpumpe Siemens 2 BE1 505-BY3-Z

Flow rate: 125 m³/mm

Vacuum high: 50 kPa - 55 kPa

Motor power: 160 kW

Pump rotation speed: 260/min

Motor rotation speed: 990/min

Ring water quantity: 230 l/min

Ring water pression: 0,5 bar

Stuffing box lubrication: 5 l/min

Stuffing box lubrication pression: 0,2 bar

Siemens 2 BE1 505-BY3-Z

Liquid Ring Vacuum Pump IG3002

Model IG3002
Suction Flow 3600 - 6000 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 132 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN200
Supply connection DN150
Liquid ring connection 1”G
Shaft diameter 100 mm

Igasi

Liquid Ring Vacuum Pump IG3001

Model IG3001
Suction Flow 3600 - 6000 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 132 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN200
Supply connection DN150
Liquid ring connection 1”G
Shaft diameter 100 mm

Igasi IG3001

Liquid Ring Vacuum Pump IG2002

Model IG2002
Suction Flow 2400 - 3900 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 90 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN150
Supply connection DN125
Liquid ring connection 1”G
Shaft diameter 90 mm

Igasi IG2002
