Vakuumpumpen

In dieser Kategorie finden Sie gebrauchte Vakuumpumpen aller gängigen Hersteller und Typen wie z.B gebrauchte Nash Vakuumpumpen oder gebrauchte Siemens Vakuumpumpen. Sie erhalten gebrauchte Vakuumpumpen von Paptec optional inklusive Überholung.

Hauptbild Name Hersteller Typ Größe Kapazität

Vakuumpumpe Siemens 2 BE1 606

Second hand pump Siemens

Type: 2 BE1 606

With motor, pulley and separator

Siemens 2BE1 606

Vakuumpumpe E14 Voith

überholt

neuwertigen Läufer verfügbar

Voith E14 E14

Vakuumpumpe E9 Voith

überholt

Voith E9

Vakuumpumpe Siemens 2BE3 400 - 2BY4

Vacuum high: 3,0 mWS  - 6,8 mWS  - 4,5 mWS

Motor power: 110 kW  - 132 kW  -  90 kW

Pump rotation speed: 392/min  - 390/min  - 335/min

Motor rotation speed: 1485/min  - 589 /min

Ring water quantity: 90 l/min  - 160 l/min  - 120 l/min

Siemens 2BE3 400 - 2BY4

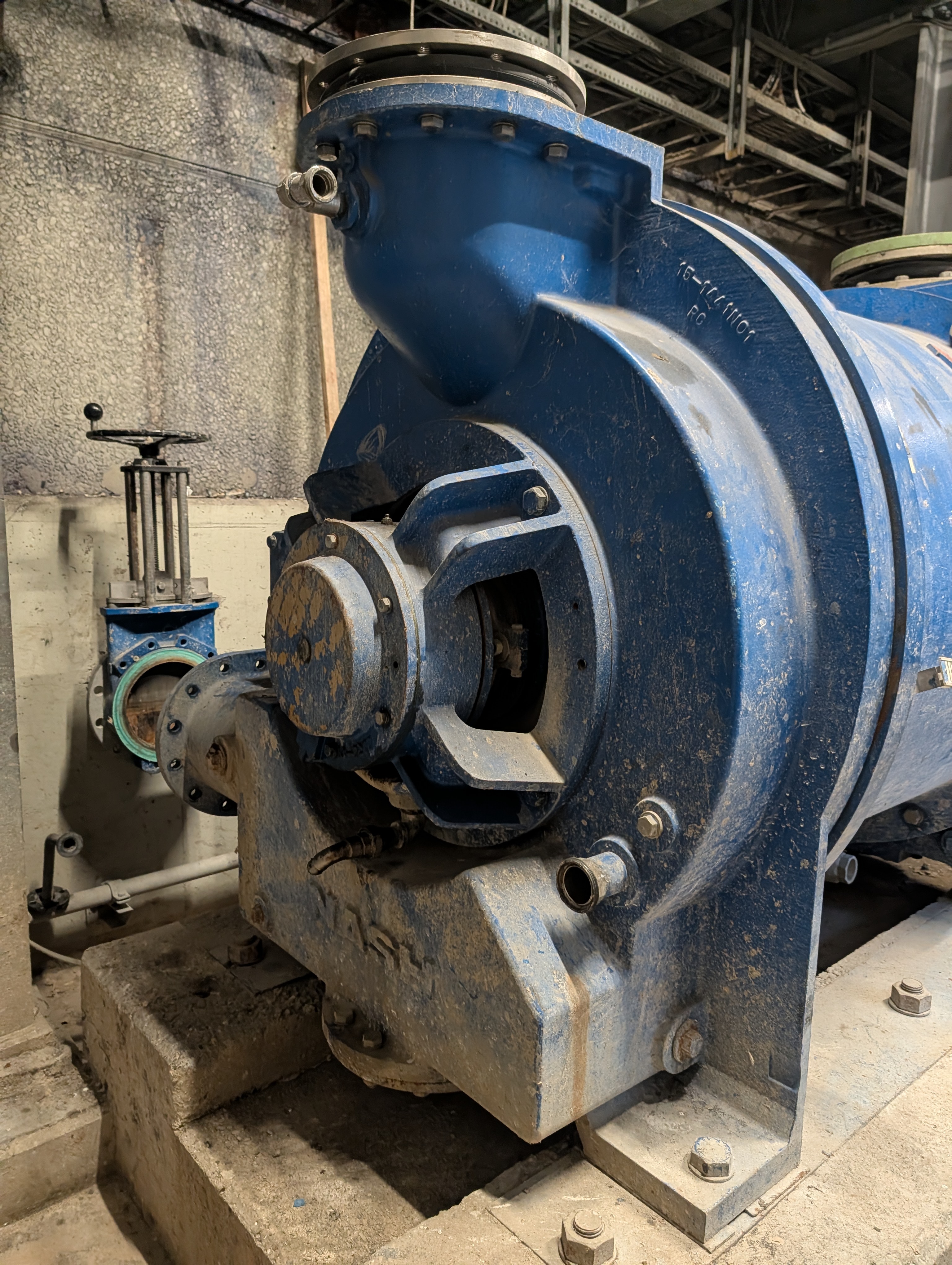

Vakuumpumpe Nash 904 P

Vacuum high: 6,8 mWS

Power imput at the shaft: 158 kW

Motor power: 200 kW

Pump rotation speed: 265/min

Motor rotation speed: 989/min

Ring water quantity: 400 l/min

Nash 904 P

Vakuumpumpe Siemens 2 BE1 506-BY3-Z

Vacuum high: 50 kPa / 55 kPa

Power imput at the shaft: 130 kW

Motor power: 160 kW

Pump rotation speed: 300/min / 260/min

Motor rotation speed: 990/min

Ring water quantity: 150 l/min / 230 l/min

Ring water pression: 0,5 bar

Stuffing box lubrication: 5 l/min

Stuffing box lubrication pression: 0,2 bar

Siemens 2 BE1 506-BY3-Z

Vakuumpumpe Siemens 2 BE1 306-BY3-Z

Flow rate: 70 m³/mm

Vacuum high: 40 kPa

Motor power: 90 kW

Pump rotation speed: 650/min

Motor rotation speed: 1490/min

Ring water quantity: 90 l/min

Ring water pression: 0,5 bar

Stuffing box lubrication: 5 l/min

Stuffing box lubrication pression: 0,2 bar

Siemens 2 BE1 306-BY3-Z

Liquid Ring Vacuum Pump IG3002

Model IG3002
Suction Flow 3600 - 6000 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 132 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN200
Supply connection DN150
Liquid ring connection 1”G
Shaft diameter 100 mm

Igasi

Liquid Ring Vacuum Pump IG3001

Model IG3001
Suction Flow 3600 - 6000 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 132 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN200
Supply connection DN150
Liquid ring connection 1”G
Shaft diameter 100 mm

Igasi IG3001

Liquid Ring Vacuum Pump IG2002

Model IG2002
Suction Flow 2400 - 3900 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 90 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN150
Supply connection DN125
Liquid ring connection 1”G
Shaft diameter 90 mm

Igasi IG2002
