Papier- Wellpappe- Kartonverarbeitungsmaschinen

Gebrauchte Maschnen zum Verarbeiten von Papier, Wellpappe und Karton

Hauptbild Name Hersteller Typ Größe Kapazität

Paper converting / finishing line

Cerutti Laminator/Coater

  • Wet (waterbased) or dry Lamination (waterbased or solvent based)

  • Lens/holographic optima register system – Weko re-wetting system

  • Metpol/aluminium foil/transmet

  • Two gravure heads  - 1st head for the adhesive & 2nd head usually applies the lacquer if required (waterbased or solvent based)

  • Two rewinds – one for laminate and one for stripped film on transmet

  • 1240mm max substrate – board/paper

  • 1.5m max OD

  • 1.0m max OD topstrate – film/foil etc

Can use 76mm core on board unwind also (only laminator that can)

Drying Systems – Hot Oil Drying on both Cerutti Laminator/Coaters



Kroenert Laminator

  • Wet Lamination only (waterbased)

  • Metpol/foil – not currently transmet

  • Workhorse for drinks market

  • Roller coating (rubber & steel) for adhesive and gravure for lacquer

  • Clear lacquers only (not golds)

  • One rewind though has an additional in-house rewind added also

  • 1229mm max substrate – board/paper

  • 1800mm max OD

1.0m max OD topstrate – film/foil etc

SLITTERS

WICKELTECHNIK - Jumbo Slitter

  • Max slit width – 1250mm

  • Min slit width – 300mm

  • Board Thickness  Min 60 microns  Max 800 microns

  • Max reel OD – 1800mm

  • Max reel OD  - 1800mm

  • Slit width min. 500mm

  • Slit width  max. 1250mm

  • Lens/Holographic registration monitoring capability for reels

  • 152, 302 & 305mm cores sizes

  • Used for board mainly



Atlas Slitter

  • Max slit width – 1250

  • Min slit width – 300mm

  • Max reel OD – 1800mm

  • Max rewind dia – 1800mm

  • Core sizes 152, 302 & 305mm

  • Used for board mainly

  • Rewind min slit width 350mm

  • Rewind max slit width 1050 mm



WICKELTECHNIK Coiler (Bobbins)

  • Max slit width – 1250mm

Min slit width – 455mm

  • Max OD – 1800mm

  • Smaller cores sizes – 76,152  302 and 305mm

  • Min slit width – 65mm

  • Has film stripping capability – used for a lot of paper film stripping



Splitter

  • Widest slit width

  • Has film stripping capability – used for some paper film stripping

  • Used for slitting PET film also

  • Has corona treatment capability





Sheeters & Guillotine



Valmet - sheeter

  • Max input width – 1450mm

  • Min input width – 260mm

  • Max reel input OD – 1800mm

  • Core sizes  -  152, 302 and 305mm

  • Min and max sheet chop length – 400 to 1500mm

  • Min and max sheet widths – 250 to 1300mm

  • Max pallet height 1520mm

  • Flying Splice System



SHM (Strachan Henshaw) - Sheeter

  • Max input width – 1170mm

  • Max reel input OD – 1800mm

  • Pallet height – 1700mm

  • Min and max sheet chop length – 550 to 1500mm

  • Min and max sheet widths – 250 to 1170mm



Guillotine Schneider

  • Max output sheet size of 1080 x 1250mm

Min trim 2mm

European manufacturers

Die cutting machine Titan Erba EM 4

Dimensions within frame 1000 x 1400 mm
Moving table dimensions 1030 x 1440 mm
Max. cutting dimensions (without frame) 1000 x 1420 mm
Max. sheet size 1015 x 1445 mm
Speed 750 - 1200 sheets/hour
Motor power 9 Kw
Total power 11 Kw
Dimensions 2560 x 2230 mm

Titan Erba EM4

Die Cutter Bobst 1600

Min: 460x 580 mm

Max: 1095x 1595 mm

Grammatur Max: <800g/m²

Wellen: E/B/C/EB/BC

Bobst 1600

Die Cutter Ashai 1600

Ashai1600

Min: 520x 560mm

Max: 1100x 1595 mm

Grammatur Max: < 1100g/m²

Wellen: E/B/C/EB/BC

Ashai 1600

Stacker Stamag

Stamag 0412-002

Folding Gluing machine Jagenberg Simplex 875II

Second hand / used Folding Gluing machine Jagenberg Simplex 875II

4 and 6 points for glue

Documentation available

Jagenberg Simplex 875 II

Etikettierer Markem A41014

Markem A 41014

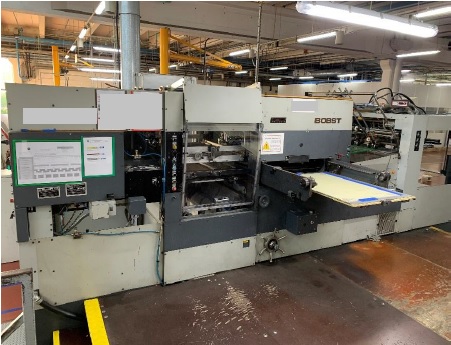

Automatic Die Cutter Bobst SP102-EII

Gebrauchte Automatic Die Cutter from Bobst SP102-EII

Manufacturing place: Switzerland

In production: 13.000 hours

Turns: 50.000.000

Sheet format max.: 720 x 1020cm

Sheet format min.: 300 x 350cm (super mini device)

Centerline II

Power unit Cube

Manual non stop grid at the reception

Material:

- Paper min 80-90gsm

- Compact carboard up to 2.000g/m²

- corrugated cardboard up to 4mm

Speed: up to 7500 s/h

3 levels + podium



Bobst SP102-EII

Kartonverpackungsmaschine Savoye

Gebrauchte Kartonverpackungsmaschine Savoye:

•  1 Kartonaufrichter Savoye 60-12 DM 2F
•  1 Kartonaufrichter Savoye 60-12 DM 3F
•  2 Schrumpftunnel Savoye 9564
•  1 Deckelmaschine Savoye 6028
•  1 Volumenoptimierer Savoye Jivaro 4016
•  Schaltschränke / Steuerungen

Savoye

Etiketten Konfektioniermaschine Flexor B 380

Gebrauchte Etiketten Konfektioniermaschine:


Max. Bahnbreite: 380 mm
Max. Geschwindigkeit: 300 m/min


Abwickler:
Max. Rollendurchmesser: 800 mm
Pneumatische Abwickelspindel: durchmesser 76 mm
Programmiierbares Rollenende


Einzel - Aufwickler:
Max. Aufwickeldurchmesser bei Einzelaufwicklung: 500 mm
Pneumatische Abwickelspindel: durchmesser 76 mm (einfacher Spindelwechsel)
Aufwickelspindel mit eigenem Servoantrieb für genaue Aufwickelspannung
Aufwickelspannung wird in Newton angegeben: 1 Modul


Schneideeinheit:
Längsschnitteinheit mit Querregister +/- 7 mm und Kassetteneinschub: 1 Satz
Einstelleinheit für die Scherenmesser ausserhalb der Maschine
Scheremessersatz (Ober und untermesser) 12 Stück
Min. Breite des Längsschnitts: 20 mm
Schneiden zwischen zwei Servo angetriebenen Vorzugswellen: 1 Modul


Bahnspannungskontrolle:
Komplete Kontrolle der Aufwickelspannung dank servogesteuerter Aufwickler
Pneumatisch gesteuerte Vorzugswelle mit eigenem Servomotor
Durchmesserkontrolle auf alle Wellen (Abwickelwelle, Aufwickelwelle, Gitterwelle): 1 Modul


Zähler:
Meter und Decimeter Zähler
Etikettenzähler für transparente Etiketten
Automatische Berechnung des Bremswege
Tagesproduktionszähler (zählt nur wenn die Maschine läuft)
Gesamte Maschinenlaufzeitzähler
Gesamt umgewickelte Meter


Ergonomie:
E+L-Bahnkantensteuerung mit verbauten Splice-Tisch mit pneumatischen Klemmleisten
SPS kontrolliertes System /Touch panel in deutscher Sprache
Rollenendehalterung
Antistatische Bürste
Fusspedal (Jog / Stopp)
Zusätzlisches Bedienpanel im hinteren Bereich
250 Jobspeicher


Austattung:
Fehletiketteneinheit max. 12 Bahnen: 1 Modul
Fehletikettensensoren für normale Etiketten: 10 Stück
Makulaturaufwicklung mit 76 mm Spannwelle
      - Max. Aufwickeldurchmesser 400 mm
      - Max. geschwindigkeit 30 m/min
      - 76 mm Spannwelle
      - Position kann noch definiert werden


Technische Daten:
Länge: 3550 mm
Breite: 1620 mm
Höhe: 1900 mm
Masse: 3000 Kg
Spannung: 3x400 V/50HZ
Leistung: 16,5 kW
Luftanforderung: min. 6 bar

Flexor Fleor B 380 380 mm 300 m/min
