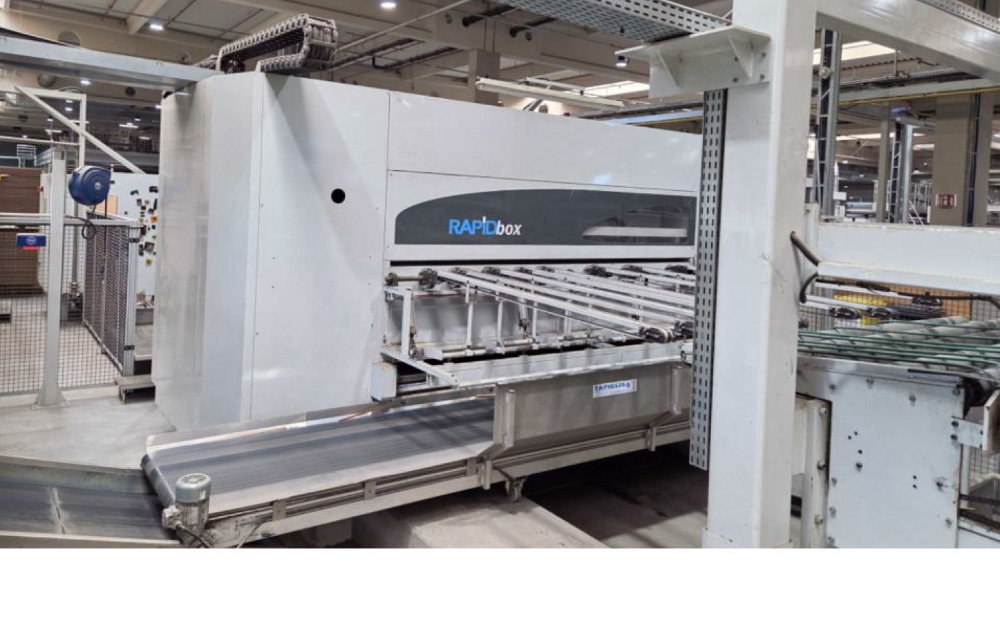

Boxmaker Bobst Rapidbox / Rapidprint
Papier- Wellpappe- Kartonverarbeitungsmaschinen
Technische Daten:
Maschine:
Boxmaker Bobst Rapidbox / Rapidprint
Artikel-Nr.:
6659
Hersteller:
Bobst
Typ:
Rapidbox / Rapidprint - Boxmaker
Größe:
Max. sheet size: 10000 x 2800
Kapazität:
60 m/min
Jahr:
ca 2010s
Beschreibung:
Corrugated cardboard: E - CAA flute
Max. speed: 60m/min
Anilox roll: chrome
Flute combinations:
Single-wall: E / B / C
Double-wall: EE / EB / BC / CA / CA laminated
Triple-wall: CAA
Printing unit:
1 flexo printing unit
18-line screen
printing plate thickness: 4.34mm
Technical specifications:
Working width: min. 500 mm / max. 2.800 mm
Feed length: min. 850 mm / max. 10.000 mm
Print width: min. 0 mm / max. 2.800 mm
Print length: min. 0 mm / max. 3.800 mm
Die-cutting width: min. 0 mm / max. 2.800 mm
Die-cutting length: min. 0 mm / max. 1.400 mm
