Rollenschneider Umroller

Sie finden in dieser Kategorie gebrauchte Maschinen zum Schneiden der Papierbahn in Längsrichtung. Rollenschneider, Rollenschneidmaschine, Rollenschneid- und Wickelmaschine, Umroller.

Hauptbild Name Hersteller Typ Größe Kapazität

Rollenschneider von SRC, 1800 mm

Basic Material Specifications

Wet laid nonwovens + others

Thickness ranges from 350gsm – 450gsm

Minimum product tensile 100N/m



Unwind Section

Max web width 1800mm

Max rewind/unwind weight 250/300kgs

Max unwind roll diameter 1200mm

Braked unwind with load cell tension control

Automatic edge guider (+/- 50mm)

Reel lift arms on the unwind

Shaft-less unwind unit (min web width 400mm – max web width 1800mm)

Web splice and inspection table

Unwind cores i/d 76mm and 152mm chucking facilities



Nip Section

Driven draw rollers, with pneumatically actuated nip roller



Slitting Section

Rotary shear slitting (tangential)

16 individual shaft mounted female knives

16  individual pneumatic dovetail mounted shear slitting knives

Minimum slitting width 50mm

Normally slitting 300-400mm widths



Rewind Section

Simplex centre-surface rewind

Maximum rewind diameter 1200mm

Rewind mode – locked core (airshaft) – 1 off rewind airshaft 76mm

Off-loading the rewind support arms will lower to floor (similar to the Parkland system)

Rewind roll removal by pump truck with bogey arrangement as currently in use on the parkland system (not part of selling scope)

Two drive machine – one draw roller drive and one rewind roller drive

Machine speed 200mpm (maximum mechanical speed).

SRC 1800 mm

Hülsenschneidmaschine Interroll Joki inkl. Staubabsaugung

Gebrauchte Hülsenschneidemaschine inkl Staubabsaugung

Inkl Auflage für ca. 5 m Hülsen

Interroll Joki

Umroller 3300 mm

Max. Abrolldurchmesser: 1420 mm

Breite: 500 - 3300 mm

Rollengewicht (Max.). 800 kg

Aufwickelachse BM: 76 / 152

Aufrollduchmesser (Max.): 1000 mm

Breite (Min): 50 mm





Beca 3300 mm

Umroller für tissue Papier 2650 - 3500 mm

Umroller für Tissue Papier

Breite: 2650 - 3300 mm

V  max: 2200 mm

Grammaturbereich: 13 - 40 GSM

Abrolldurchmesser: 2200 mm



A. Celli AC 860 D 2650-3500 mm 1500 m / min

Umroller 4200 mm Quattrotec

 Tambourabrollung

• Geschwindigkeit bis 1800 m/min

• Bahnbreite bis 4200 mm

• Abrolldurchmesser max dia 2100mm

• Aufrolldurchemsser max dia 2100mm

• Soft drum technology

• Min Schneidbreite 50mm

• Rider Roll gesteuert mit Steuerung

• Trommeldrehmomentsteuerung

• Bahnspannungsregelung

• Automatische Sequenzen

Quatrotec Double drum rewinder 4200 mm 1800 m/min

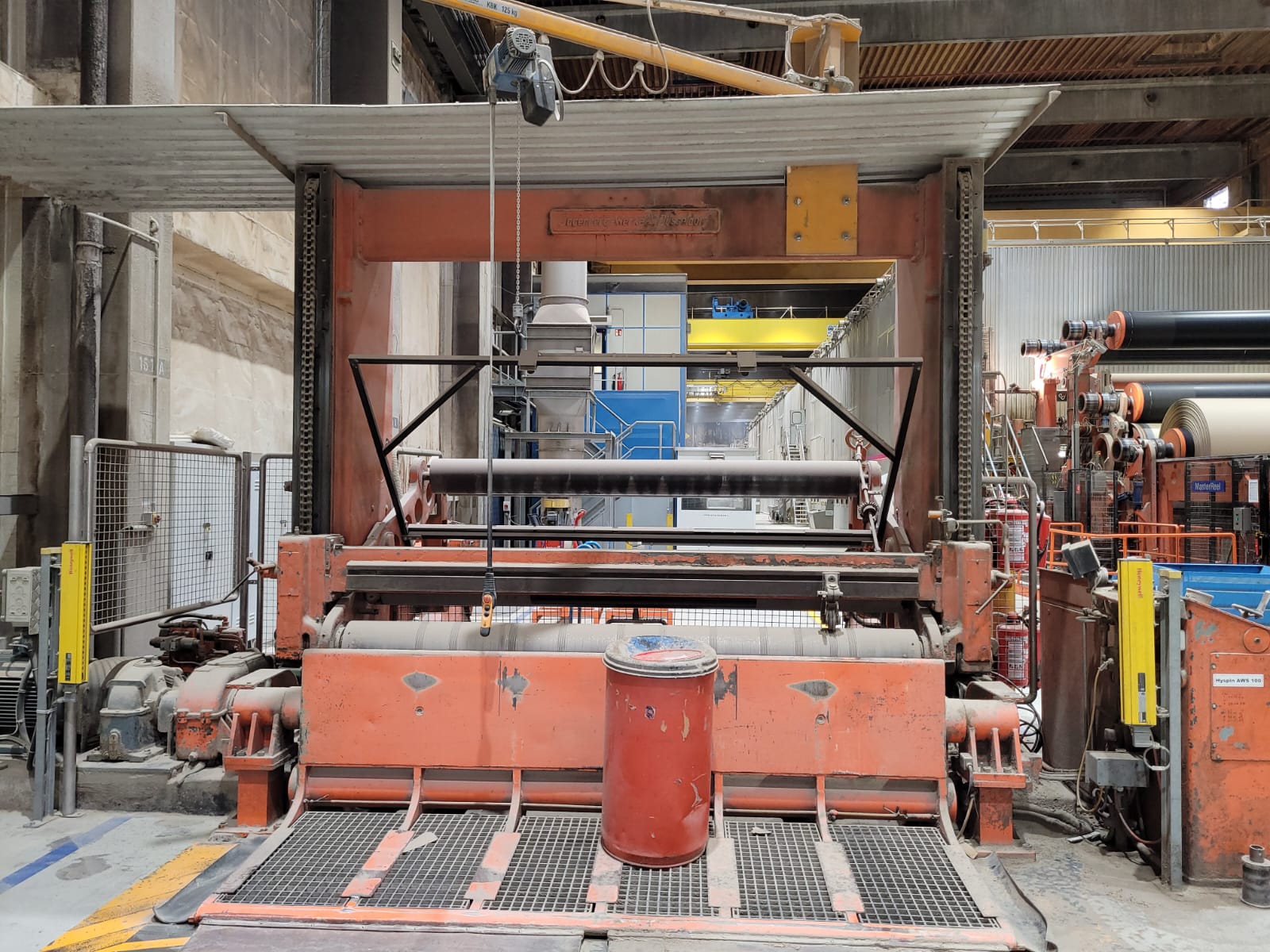

Umroller Jagenberg Vari Dur 1800mm



Double drum rewinder
Series:                        VARI Dur
Type:                         TR 33 – 15/500
Working width:             1.800 mm
For Grammage range:         52 Gsm
Max speed:                 1.500 mm
Max unwind diameter:         1.525 mm
Max roll weight:            6 tons
Min roll diameter:             500 mm
Min reel width:            350 mm
Max. RPM:                3.400 / min
Usual min cut width:             150 mm
single rolls:                 100 mm
Max rewind diameter:        1.525 mm
Min:                    470 mm

Jagenberg Vari Dur 1800 mm

Umroller Voith 3300 mm

Used rewinder from Voith.

Tambour unwinding

In 2006, electric motor drives and cutting knives (Tidland) were completely replaced
Drive speed after reconstruction (max):1200 m/min.

Right hand drive
Parent roll diametar (max): 2500 mm
Paren roll width (max): 3300 mm
Roll diametar after cutting (max): 1800 mm
Rol width after cutting (max): 3200 mm
Rol width after cutting (min): 300 mm
Core inner diametar: 76 mm i and 150 mm
Number of knives: 6 (six)

Voith Double drum rewinder 3300 mm 1200m/min

Umroller Valmet 2700 mm

Gebrauchter Umroller:

Manufacturer: Valmet

Manufacturing Year: 1980 ies

Type    Twin Carrying rolls type KL 200
Paper width mm    2700
Speed m/min    1500
Max rewind.    1500

Max unwind.    1500
Knives (no)    5
Salvage winder, Valmet, double drum winder Unwind stand:
max 2700 mm reel width, possibility to run to 3000 mm after modifying the unwind Shaftless unwind lifting from floor, hydraulic brake system, web tension control Min roll to be lifted: dia. 460 x 500 mm Fife Edge Guide system Knife system with four to five knifes, driven bottom slitters Shaftless rewinding Carrying roll dia. 787 x 3150 mm, Molybdenum coated Min winded roll dia. 360 mm Rider roll dia. 267 x 3150 mm Dual motor drive, ABB DC motors of 49 kw each, 867 rpm, 620 V DC, Exc. 220 V DC drives: ASEA Thyrak L
Control: Siemens Simatic S5 115U

Valmet Twin Carrying rolls type KL 200 2700 mm 1500 m/min

Umroller Titan 1500 mm

Max. Stegbreite (mm): 1600
Arbeitsbreite (mm): 1500

Abroll -Typ : Spindel
Max. Abrollung: 1000
Max Durchmesser Rollen - Abwicklung: 800
Abroll - Typ: Double shaft center driven
Max Abwicklung: 610
Max Durchmesser Rollen - Abwicklung: 600
Strom: 45 KVA Elektrische Spannung: 380-415 V elektrischer Strom: 63A Max Hydraulisch: 100BAR Max Pneumatisch: 7 BAR

Überholung: 2012

Titan SR6 1500 mm

2-facher Wendeabwickler

2-facher Wendeabwickler

Rollen-Breite: 1800mm

1Rolle max. Ø 1200mm

Zwischen den 2 Abwickelstangen beträgt der Abstand 95cm

2Rollen mit einem max. Ø 90cm

Turrent unwind station 1800 mm
