Hauptbild Name Hersteller Typ Größe Kapazität
—

Laminating machine 2050 mm

laminating line for processing paper, thermoplastic films, polyester and fleece, with a two-section dryer, applicator unit and separate laminating station.

2,050 mm

50 m/min

1,000 mm

79 kW

max. web width

production speed

max. roll diameter

installed drive power*



Technical highlights

Working width

630–2,050 mm; special minimum 300 mm*

Roll width

2,150 mm

Design / drive speed

100 m/min

Production speed

50 m/min

Creep speed

4 m/min

Wet run

4–10 m/min

Acceleration / deceleration

Approx. 10 s to 100 m/min

Installed drive power

45 kW DC drives + 34 kW AC drives = 79 kW

Electrical supply

3-phase, 380 V, 50 Hz; control voltage 220 V

Compressed air

6 bar; 10 bar for laminating

Cooling water

15 °C, 2–4 bar

Unwind and rewind

Unwind 1 – material

Paper and thermoplastic films

Unwind 2 – material

Polyester and fleece

Unwind roll diameter

Max. 1,000 mm

Unwind core inner diameters

70 / 76 / 150 mm

Unwind max. roll weight

1,800 kg each

Web tension – unwind 1

2–40 kp

Web tension – unwind 2

1–40 kp

Rewind – material

Laminate

Rewind roll diameter / weight

Max. 1,000 mm / max. 1,800 kg

Rewind core inner / outer diameter

70 / 76 / 150 mm inner; 90 / 185 mm outer

Rewind web tension

6–150 kp





Process units

Applicator unit 1 – metering roll

Ø 300 mm

Applicator unit – pressure roll

Ø 180 mm

Applicator unit – support roll

Ø 300 mm

Dynamic bearing load

Max. 2 × 10 t

Applicator roll torque limit

Up to 45 mkp

Dryer

2 sections, 2 m length per section

Dryer temperature zones

2

Air circulation

7.5 m³/s per section

Dryer blowers

Two-stage, variable-speed

Dryer heat transfer medium

Hot water, 14 bar / 180 °C

Air outlet velocity

45 / 25 m/s

Heated cylinder

1 × Ø 500 mm; thermal oil

Cooling cylinder

1 × Ø 400 mm; cooling water, 20 °C inlet

Laminating station pressure roll

Ø 120 mm

Laminating station steel support roll

Ø 210 mm

Utilities and operating data

Heating energy – dryer

120,000 kcal/h (as stated in documentation)

Heating medium / exchanger test

Hot water 14 bar; heat exchangers tested at 25/40 bar

Electrical protection

DC motors: Ex-proof execution noted; other DC motors IP23; cabinets outside Ex area IP54

Power supply

Three-phase current, 380 V, 50 Hz

Pagendarm — 2050 mm —

Serviettenproduktion und Verpackungslinie

Used NAPKIN PRODUCTION & PACKAGING LINE

9 SEPTEMBAR MO-PRINT 330/1200 + CASMATIC PAC 340
Complete production line for printed and folded paper napkins
Folding Machine: 2010 s  | Packaging Machine: 2000s


1. GENERAL DESCRIPTION
For sale is a complete napkin production and packaging line consisting of a 9 SEPTEMBAR MO-PRINT 330/1200 folding machine and a CASMATIC PAC 340 packaging machine.
The line is designed for the production of printed, embossed and folded paper napkins in 330 × 330 mm format.
The MO-PRINT machine features a 4-colour flexographic printing system, embossing unit and automatic folding and cutting system. The finished napkins are transferred via the included conveyor system to the CASMATIC PAC 340 packaging machine.
The complete line is currently installed and operating in production. Inspections and live video demonstrations are welcome.
2. TECHNICAL DATA – FOLDING MACHINE
Manufacturer: 9 SEPTEMBAR
Model: MO-PRINT 330/1200

Technical specification    Details
Maximum production speed – white napkins    1,000 napkins/min
Maximum production speed – coloured napkins    750 napkins/min
Napkin format currently equipped    330 × 330 mm
Folding type currently equipped    1/4 fold
Printing system    4-colour flexographic printing
Embossing unit    Yes
Number of paper plies used    1 ply
Typical paper grammage    17 g/m²
Maximum parent reel diameter    1,200 mm
Parent reel width    330 mm
Additional format possibilities:
The machine can potentially be adapted for other napkin formats, such as 250 × 250 mm, by installing suitable folding and cutting heads. Other format equipment is available at the seller's facility from a similar 9 SEPTEMBAR machine.
The machine is currently equipped for 1/4 folding. Conversion to 1/8 folding is possible by installing an appropriate triangle shaper, plate and transfer hands.
The machine has mainly processed single-ply paper at approximately 17 g/m². Processing of multiple plies or other paper grammages has not been verified by the current operator and should be confirmed with the manufacturer.


3. TECHNICAL DATA – PACKAGING MACHINE
Manufacturer: CASMATIC
Model: PAC 340

Technical specification    Details
Maximum packaging speed    30 packs/min
Minimum napkins per pack    40
Maximum napkins per pack    100
Packaging format currently used    Single pack
Conveyor system    Included
Conveyor configuration    Designed for two folding machines
The packaging machine has previously been operated with both single-pack and double-pack/stack configurations. In recent years, production has been limited to single-pack operation. The alternative configurations have not been verified by the current operating personnel.

INCLUDED EQUIPMENT
The sale includes:
•    9 SEPTEMBAR MO-PRINT 330/1200 folding machine
•    CASMATIC PAC 340 packaging machine
•    Complete connecting conveyor system
•    Conveyor configuration for two folding machines
•    Existing machine equipment and accessories

Photos and video available on request



9 SEPTEMBAR + CASMATIC MO-PRINT 330/1200 + CASMATIC PAC 340 330 × 330 mm 1/4 fold 1,000 napkins/min

Boxmaker Bobst Rapidbox / Rapidprint

Corrugated cardboard: E - CAA flute

Max. speed: 60m/min

Anilox roll: chrome

Flute combinations:

Single-wall: E / B / C

Double-wall: EE  / EB / BC / CA / CA laminated

Triple-wall: CAA

Printing unit:

1 flexo printing unit

18-line screen

printing plate thickness: 4.34mm

Technical specifications:

Working width: min. 500 mm / max. 2.800 mm

Feed length: min. 850 mm / max. 10.000 mm

Print width: min. 0 mm / max. 2.800 mm

Print length: min. 0 mm / max. 3.800 mm

Die-cutting width: min. 0 mm / max. 2.800 mm

Die-cutting length: min. 0 mm / max. 1.400 mm





Bobst Rapidbox / Rapidprint - Boxmaker Max. sheet size: 10000 x 2800 60 m/min

Waste paper handling equipment - Shredder - bale press - conveyors

  • Paper shredder: Mehrmesser-Rotorzerkleinerer mit separater Hydraulikeinheit und Schaltschrank.

  • Ballenpresse: Automatische horizontale Hydraulikpresse mit 5-facher Drahtabbindung.

  • Förderanlage: Stahlgliederkettenförderer mit einer angegebenen Kapazität von 10 Tonnen/Stunde, Entladegrube und Staubabsaugung.

Prozess: zuführung → zerkleinerung → ballenpressung.

— Waste paper handling line — approx. 10 t/hr
—

Rollenverpackungsanlage Voith Twister 500 - 3.400 mm

Rollenbreite: 500 - 3.400 mm

Rollendurchmesser: 900 - 1.500 mm

Max. Rollengewicht: 4.500 kg

Die Anlage umfasst Rollentransport, Faltstation, Packpresse und robotergestützte Stirndeckelhandhabung.







Voith Twister 500 - 3.400 mm —

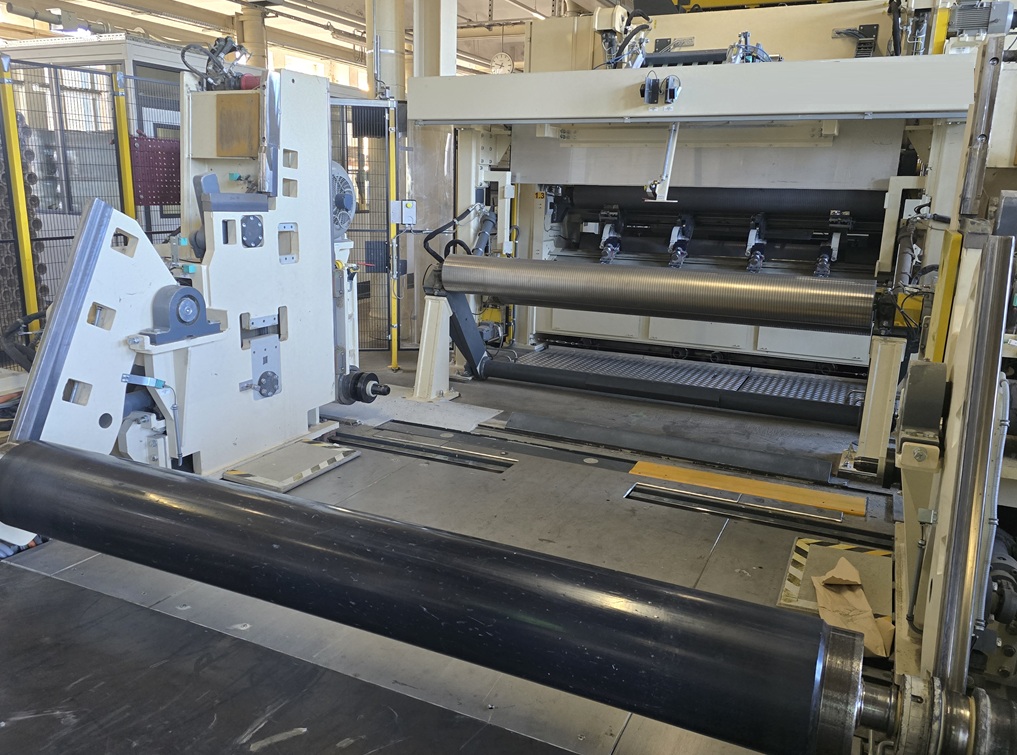

Umroller Goebel 2800mm

Hersteller Göbel
Modell U16M
Arbeitsbreite 2.800 mm
Tragwalzenbreite 2.880 mm
Max. unbeschnittene Bahnbreite 2.730 mm
Max. beschnittene Bahnbreite 2.700 mm
Min. Schnittbreite 150 mm
Max. Abwickeldurchmesser 2.000 mm
Max. Wickeldurchmesser 1.500 mm
Max. Betriebsgeschwindigkeit 2.000 m/min
Tragwalzenantriebe 2 × 58 kW
Bremsgeneratorleistung 81 kW
Stromversorgung 3 × 400 V, 50 Hz
Goebel Slitter rewinder 2800mm 2000m/min

Tissue Verarbeitungs- + Verpackungslinie AFH-Papiere / Hygienepapiere für den professionellen und industriellen Bedarf

Converting line:

Manufacturer: Fabio Perini

Type: 702G semi-automatic slitter rewinder

Year: 1990's

Refurbished: 2000's

Line type: Start & Stop, single-roll winding

Max. line speed: up to 450 m/min

Finished roll diameter range: 110 - 600 mm

Parent-roll width: Typically around 2,680 mm, working width1800-2800mm (on documentation)

Max parent-roll diameter: approx. 1.500mm

Inner core diameter: 254 mm, 76 mm

Expandable shaft for parent reels: 76 mm with adaptors for  254 mm

Number of unwinder: 1

Embossing: Dot 13 dots cm²

Perforating length: 1 blade 630mm, 2 blades 315mm, 4 blades 157mm. Option for no perforation

Plies joining: ply-bonders

Log cutting: integrated longitudinal slitting. The minimum distance between these blades is 70 mm; accordingly, the minimum height (width) of the finished roll is also 70 mm. The step increment for changing the roll height is 10 mm.

N° of slitters: 23 working

Available core diameters: 60mm, 71mm. But the working range with specific adapters is 25-85mm.

Core types: Removable or not removable core, coreless (coreless mandrels) *Can be used variable diameters of cores. Core height must be prepared before winding.

Tail sealing: by traversing glue applicator

Rated voltage: 400V

Installed capacity: 42 kW

Number of phases: 3

Frequency: 50 Hz

Short-circuit breaking capacity of the protective device for machine avercurrents: 50 KA

Packing line:

Manufacturer: MacDue

Type: H.100/A

Year: 2000's

Packaging: semi-automatic bag sealing/cutting unit. Requires manually load product

Voltage: 400V

frequncy: 50 Hz

Installed capacity: 3 kW

Max. packaging bag dimensions: Width 1000mm, Height 400mm, Length up to 800mm

Termotunnel: The semi-automatic heat tunnel shrink-wraps bags of paper rolls by applying circulating hot air, and the finished package is removed manually.

Type: T.100-40

Year: 2000's

Voltage: 400V

frequency: 50 Hz(adjusted by potentiometer)

Installed capacity: 32 Kw

Max. Packaging bag dimensions: Width 1000mm, Height 400mm, Length up to 800mm



Fabio Perini 702G — —

Blockbodenbeutelmaschine W&M + Alina 650 4 colour flexo printing

Used paper bags machine W&M + Alina 650 flexo printing 4 colors

It is one of the world’s most sought-after and robust block-bottom bag machines for producing small-format paper bags.

The configuration in question consists of a combination of a paper bag machine and a flexographic printing unit.

The Alina 650 is a flexographic printing unit designed for inline operation.

It is positioned directly upstream of the bag machine to print the paper web prior to the bag-forming process.

Print width / web width: Maximum 650 mm

Printing units: 4-color stack configuration

Function: Enables precise, synchronized printing of the packaging paper during the production process, controlled via gear-driven format lengths or modern registration control systems (photocells).



In summary, this setup constitutes a highly efficient, classic production line for the direct manufacture of printed paper block-bottom bags from the reel.

Fully equipped



Parameter Range / Specification

Bag width 70 – 230 mm

Bottom width 40 – 140 mm

Cut length 200 – 470 mm

Reel width max. 770 mm

Reel diameter max. 1300 mm

Production output Depending on year of manufacture/model: up to 12,000 bags/hour (older or used mechanical versions)

Windmöller & Hölscher Triumph 2B + Alina 650 — —
—

Gebrauchte Papierverarbeitungsmaschine zur Herstellung von V - Falzprodukte

Gebrauchte Convertinganlage zur Herstellung von Falzprodukten.

V-fold

Machine speed                                                            155 m/min

Sheet dimensions                                                          23x23 / 25x23 cm

Current sheets/pack                                                        160 - 250

Production average t/d                                                       30 - 34   

Working width:                                                             275 cm

Max. mother roll diameter, current 200 cm / possible with technical optimization   220cm

Bretting S014 23x23 / 25x23 cm 155 m/min

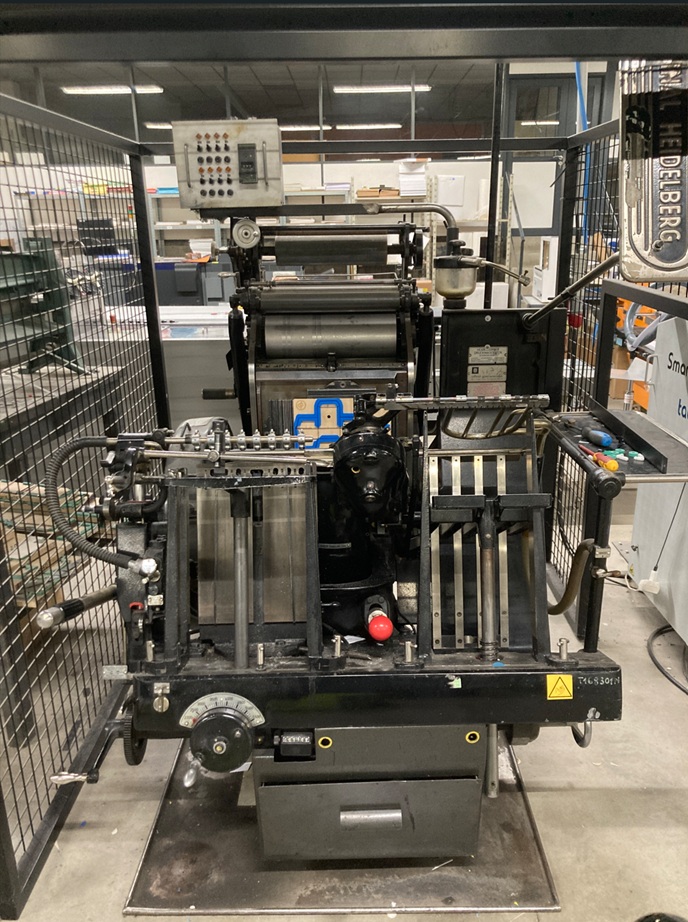

Heißfolienprägemaschine Tecso 46 × 58,5 cm

Heißfolienprägemaschine Tecso für Bogendruck

Type: KSBA-M3-CT-2PC-P |

Format: 46 × 58,5 cm

Zum Verkauf steht eine TECSO Heißfolienprägemaschine auf Basis einer Heidelberg KSBA, geeignet für die professionelle Heißfolienprägung / Heißvergoldung auf Papier und Karton.

Die Maschine eignet sich insbesondere für die Veredelung von bereits bedruckten Bogen und ermöglicht hochwertige Gold-, Silber- und Farbfolienprägungen.

Technische Daten

  • Hersteller / System: Heidelberg KSBA mit TECSO Heißfoliensystem
  • Modell: KSBA-M3-CT-2PC-P
  • Max. Bogenformat: ca. 46 × 58,5 cm
  • Heißfolienprägung: geeignet für Gold-, Silber-, Metallic- und weitere Heißprägefolien
  • Heizsystem: TECSO
  • Heizzonen: 3
  • Arbeitstemperatur: ca. 140–160 °C
  • Max. Geschwindigkeit: ca. 5.000 Bogen/Stunde, abhängig von Material und Auftrag
  • Stanzrahmen: 1
  • Anleger: 2
  • Antrieb: ca. 5 kW
  • Gewicht: ca. 3.030 kg

Einsatzbereiche

Ideal für:

  • Verpackungen und Faltschachteln
  • hochwertige Drucksachen
  • Visitenkarten
  • Einladungen und Karten
  • Buch- und Broschürencover
  • Etiketten
  • Zertifikate
  • Luxus- und Werbedrucksachen



Tecso KSBA-M3-2PC-P 46 × 58,5 cm —
