Pappenmaschine 2850 mm

PM Karton

Technische Daten:

Maschine:
Pappenmaschine 2850 mm
Artikel-Nr.:
2249
Hersteller:
European
Typ:
Cylinder mould
Größe:
2850 mm
Kapazität:
36 t/ 24 h
Jahr:
0

Beschreibung:

Grey millboard production machine


Grammage range: 1000 - 2000 GSM
Width: 2850 mm
Capacity: 36 t/day


Consisting of
Approach flow system:
1 Voith size 10 pressure screen
1 Finkh vibrating screen
1 Andritz Mixing pump

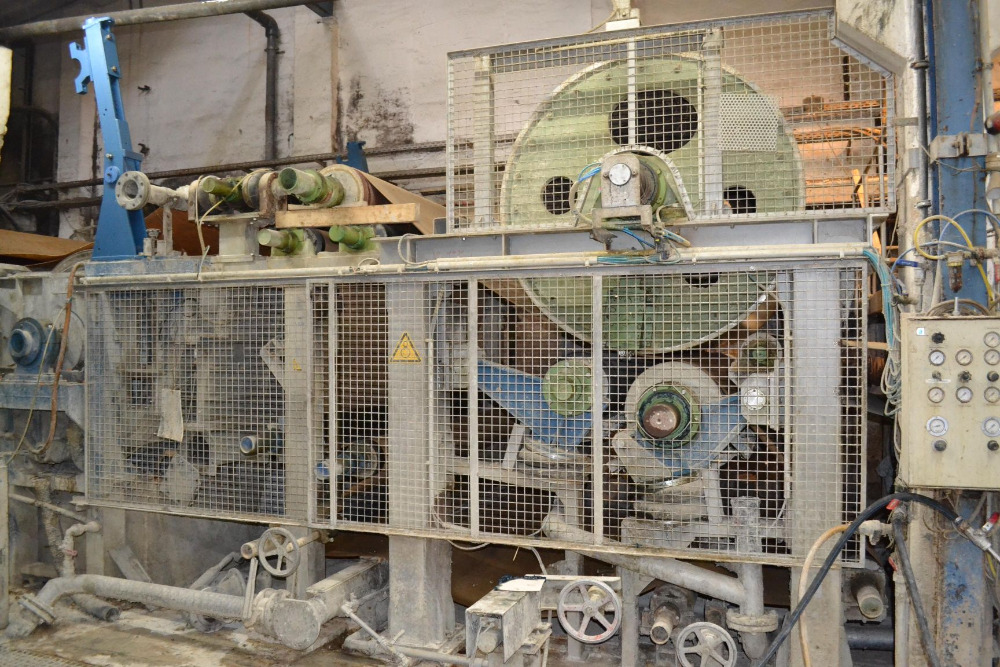

Board machine:
2 cylinder mould
Coutch roll


Forming section with:
Forming roll: 1500 mm diameter
Pre press roll: 350 mm diameter
Breast roll: 460 mm diameter
Complete with drive, spare rolls


General refurbishment: 1991
Refurbishment: year 2007, Renewing of cylinder mould with couch roll,

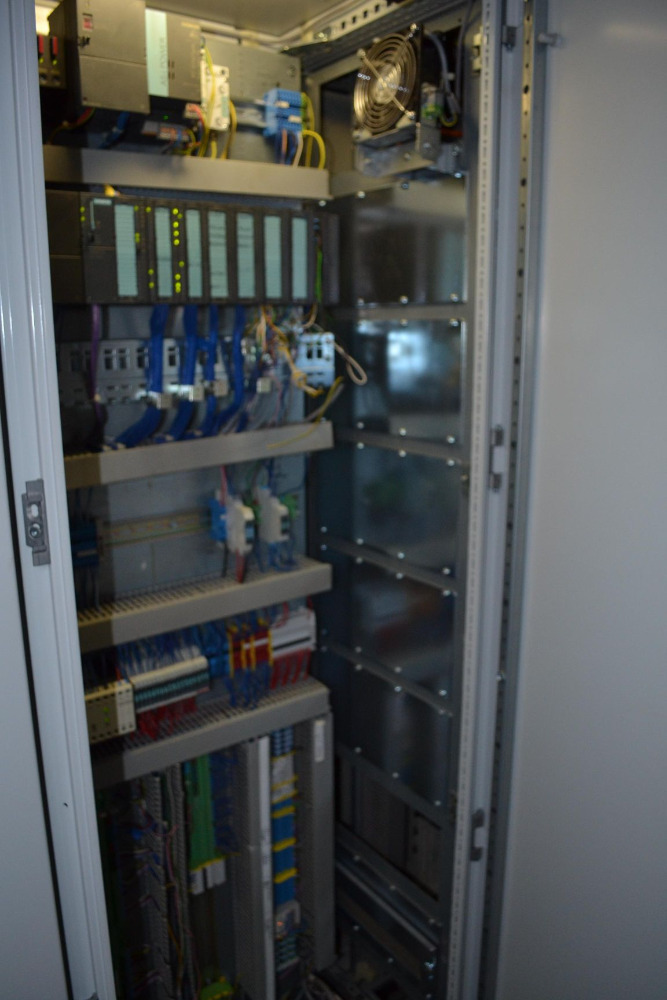

Installation of Siemens S7, Framing in stainless steel
Octopus distributor in stainless steel.
Table, working width 3.000 mm
Length: 6.000 mm


Table
Working width: 3.000 mm
Length: 7.000 mm
With guide roll and embossing calander


Table
Working width: 3.000 mm
Length: 5.500 mm


Length cutting unit
Working width: 4.00 mm
Length: 2.500 mm
With water jet cutting

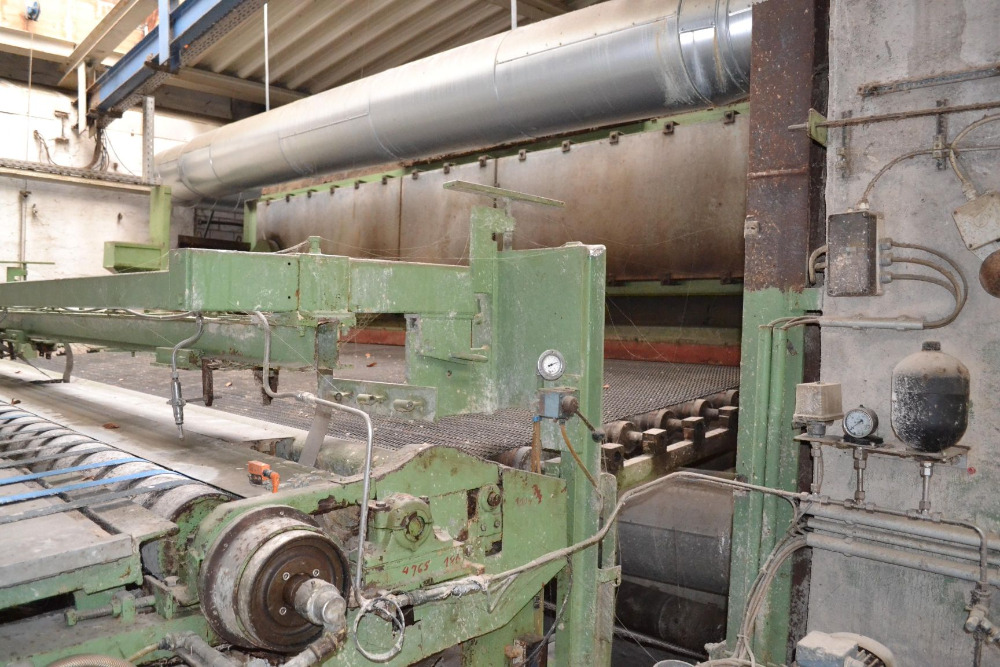

Steam - Flat dryer
Made by: Schilde
Transport with chains
Working width: 4.800 mm
Dryer length: 18.000 mm
With ventilators
Refurbished: 2008


Table
Working width: 4.800 mm
Length: 3.000 mm
Refurbished: 2007


Gas Dryer
Heating power: 1.400 kW
Made by: Dornier
Working width: 4.00mm
Dryer length: 14.000 mm
With heat exchange and heat recovery
Year: 2007


Flat dryer
Hot air drying
Made by: BSH
Working width: 4.800 mm
Length: 25.000 mm
With 5 Drying chambers
Gas burner Ventilators
Heat recovery
Refurbished: 2008


Table
Length cutting device
Made by: Schohr
Year: 1973


2 Hydraulical layboys
