Wasserfilter Sigma SF 200

Wasseraufbereitung

Technische Daten:

Maschine:
Wasserfilter Sigma SF 200
Artikel-Nr.:
4281
Hersteller:
O.M.C.
Typ:
SF 200
Größe:
-
Kapazität:
-
Jahr:
ca 2013

Beschreibung:

This  machine  was  designed  to  clear  the  water  and  to  recover  the separable solids by filtration.

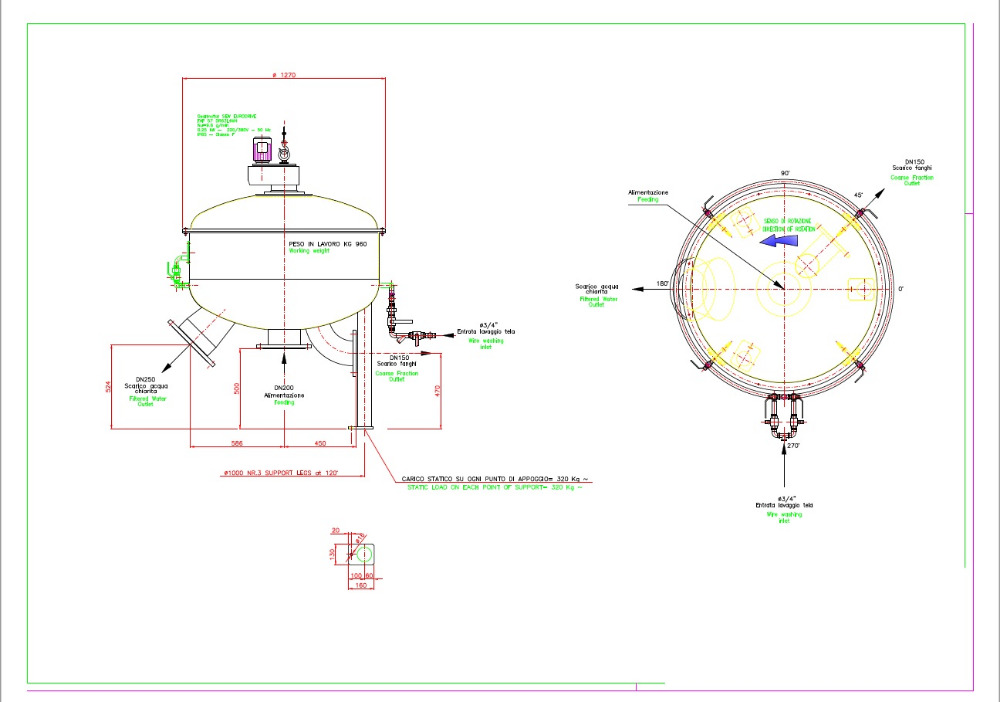

Technical sheet : SIGMAFILTER                                  mod. SF 200

 - Voltage                                                                       400     Volt

 - Frequency                                                                  50     Hz

 - Frequency range for drum rotation                      15 ÷ 60    Hz  (do not overtake the maximum value)

 - Installed power :

 - Power of the drum revolution motor                    0.25 kW

 - Pressures :

 - Raw water to be treated                                           1÷1,2  bar (max value)

 - Washing water (cleaning of wire)                            8  bar



 - Flow rate for specific application                            200       m³/h

 - Max. flow of the filtered water                               140 *    m³/h

 - Max. washing flow rate                                             27       l/m at 8 bar

 - Max. value of the coarse fraction                            60 *    m³/h



 - Acoustic pressure level                                               < 70 dB (A)



 - Max. diameter                                                            1.270     mm

 - Max. height                                                                 1.850     mm

 - Opening of filtering wire                                           30    micron



 - Empty total weight                                                     740     Kg

 - Working total weight                                                 910     Kg



The value marked with * can change according to the mesh size of the filtering wire.
