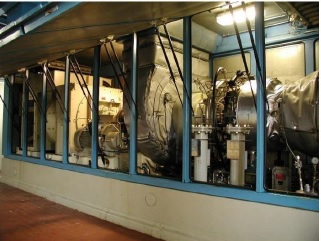

Gas turbine plant including generator & waste heat boiler

Kesselhaus

Technische Daten:

Maschine:
Gas turbine plant including generator & waste heat boiler
Artikel-Nr.:
5238
Hersteller:
Solar Turbines
Typ:
Centaur 50 SoLoNox
Jahr:
1990ies

Beschreibung:

Gasturbine

Manufacturer: Solar Turbines

Type: Centaur 50 SoLONox

year of construction: 1997

Electrical output: 4.200 kWel

Speed: 14.944min.-1 50H

Fuel: natural Gas H

Design temperature: 15°C

Turbine inlet temperature: 665°C (1.229°F)



Generator (in the package)

Manufacturer: ABB

Type: 3 phase synchronous

Year of manufacturing: 1997

Rated power: 5.450 kVA

Speed: 1.500 rpm

Cos phi: 0.98 (nominal 0.8)

Frequency: 50 Hz

Rated voltage: 10.5 kV



Waste heat boiler behind the GT - incl. chimney

Type of smoke tube boiler with ECO

Manufacturer: Koethen

Year of construction: 2008

Fuel: Flue gases from a turbine

Perm. heat output: 7.633 kW

Nominal steam output: 13 t/h

Nominal FD pressure: 14.5 bar (g)

Max. permissible FD pressure: 18 bar (g)

FD temperature: 210°C

Water contents: 1,475l

Heating surface: 2.577 m²
