Refiner DD3000 Beloit Jones
Refiner / Mahlung
Technische Daten:
Maschine:
Refiner DD3000 Beloit Jones
Artikel-Nr.:
5364
Hersteller:
Beloit Jones
Typ:
DD 3000
Größe:
42''
Jahr:
1990's
Beschreibung:
Refiners 42″ Beloit DD3000 Duo-Flo DF01 ; DF02 ; DF03 ; DF04
Min Refiner Flow = 3448 l/min
Max Refiner Flow = 10766 l/min
MOTOR CHARACTERISTICS
Manufacturer : SIEMENS
Tension = 5500 Volts
Power = 1200 Kw
Intensity = 150 A
Speed = 1489 RPM
Frequency = 50 Hz
Type = 1LA1 504-4HE 60-Z

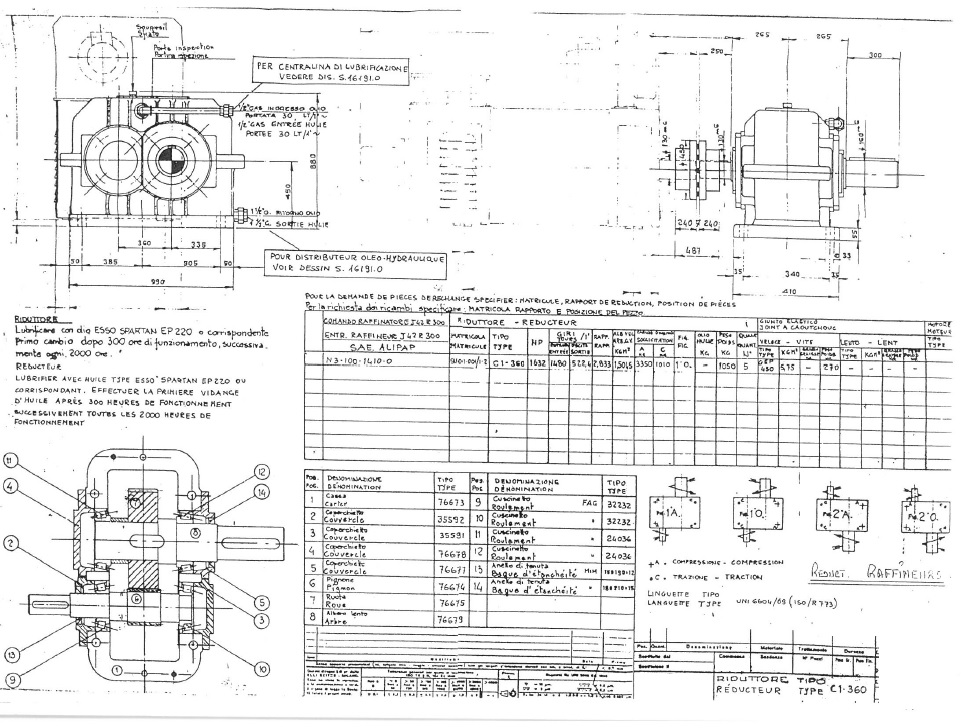

GEAR BOX CHARACTERISTICS
Manufacturer : Elli Seites
Gear ratio : 2,833
DISCS CHARACTERISTICS
Hardwood pulp (DF03 ; DF04 ; DF05) → VALMET BJ42D85 or AFT Mini-segments MS4215061336-1
Softwood pulp (DF01 ; DF02) → AFT Mini – segments MS3815102032-1 (38″)
