Corrugator / Wellpappenmaschine 2500 mm
Wellpappenmaschinen
Technische Daten:
Beschreibung:
Manufacturer: BHS
Type: WPA 2500
Width: 2500 mm
Max. Size: 4500 mm
Min Size: 500 mm
Flute types: E, EE, B, BB, EB, C, BC
Speed max. 300m/min
Basis made in the 1990 ies
Consisting of the following main components:
|
Single Facer 1 |
BHS |
MCF |
|

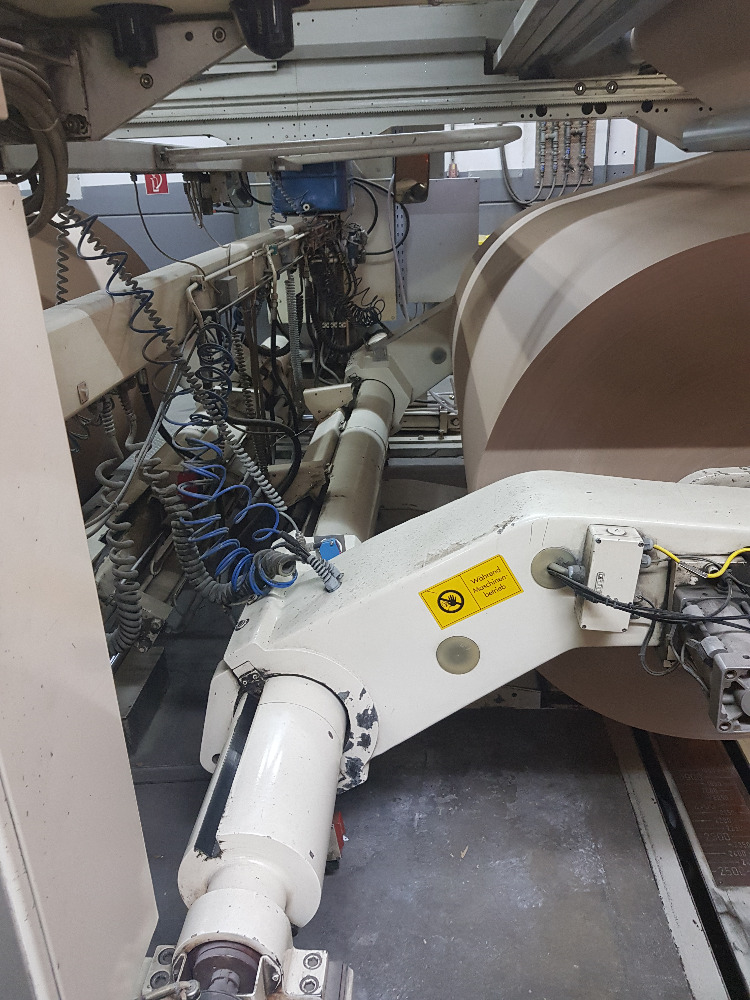

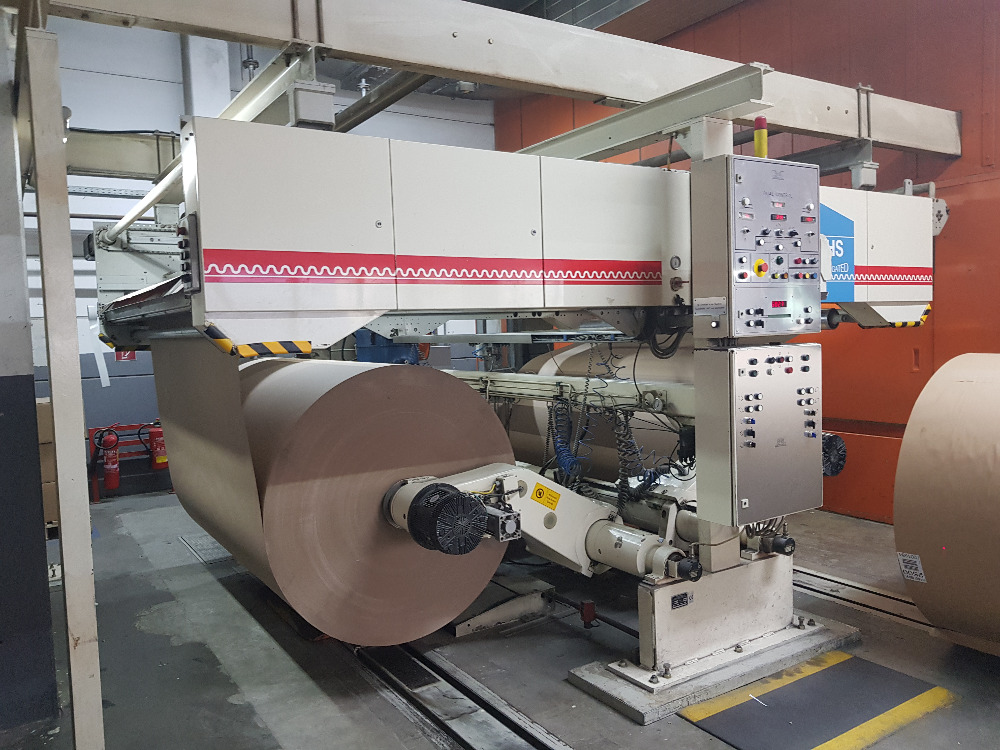

Roll stand 1 |
BHS |
ASR-M |
|
Splicer 1 |
BHS |
ARW-M 300 |
|
Roll stand 2 |
BHS |
ASR-M |
|
Splicer 2 |
BHS |
ARW-M 400 |
|
Single Facer 2 |
BHS |
MF |
|
Roll stand 3 |
BHS |
ASR-M |
|
Splicer 3 |
BHS |
ARW-M 300 |
|
Roll stand 4 |
BHS |
ASR-M |
|
Splicer4 |
BHS |
ARW-M 300 |
|
Glue unit |
Kohler Coating |
Iso Bar Glue Machine |
|
Roll stand Glue unit |
BHS |
ASR-M |
|
Splicer Glue unit |
BHS |
ARW-M 300 |
|
Triple |
BHS |
VZR-M |
|

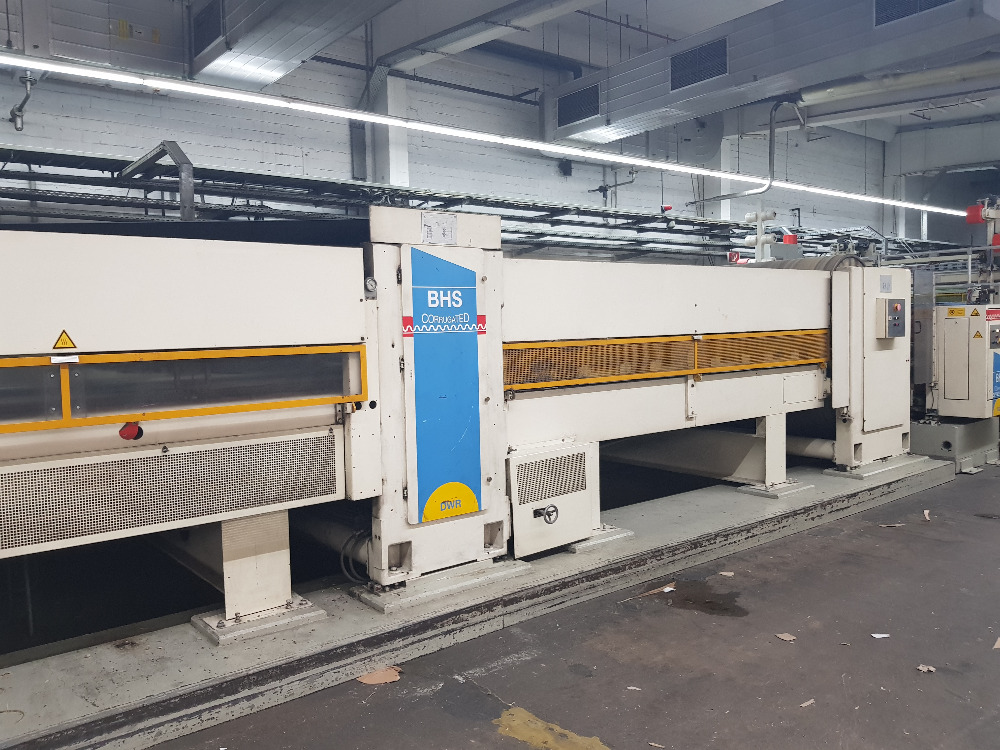

Double backer |
BHS |
DWR-M |
|
Rotary shear |
BHS |
KQ-M |
|
Slitter scorer |
Göpfert |
RSA 1.1 145 Com 669/90-01 |
|
Cut-off knife |
Göpfert |
RSK-225 |
|
Stacker |
BHS |
AAR - H |
|
Additional units |
Kohler Coating |
Waterdeck |
|
Tear tape applicator |
MUK Elmshorn |
208/308 ( incl- Trimmaster) |
|
Steam system |
Baviera |
- |
|

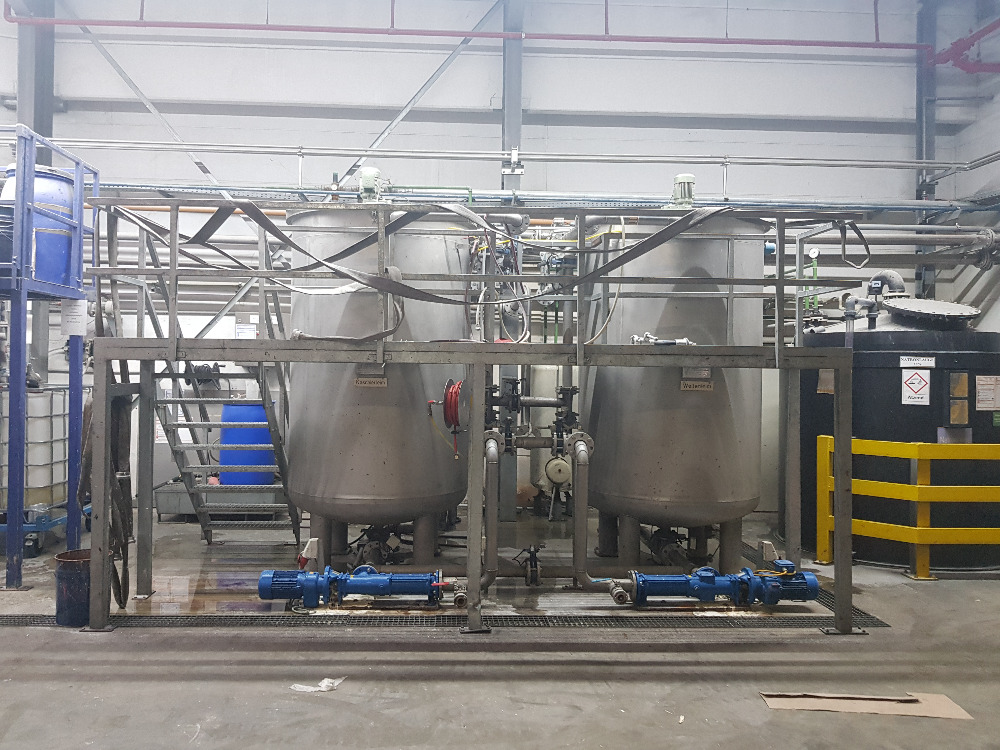

Glue kitchen |
Emslandstärke |
- |
