Wellpappenmaschine Peters 2150 mm Flute B, C, BC.
Wellpappenmaschinen
Technische Daten:
Beschreibung:
Width: 2.150 mm
Max cut length: 5.000 mm
Min cut length: 600 mm
Flute type B, C, BC B FLUTE: 3mm C FLUTE: 4mm BC FLUTE: Double Wall – 6mm -Combination of B + C flute
The corrugator itself is consisting of the following main components:
|
Component |
Manufacturer |
Type |
|

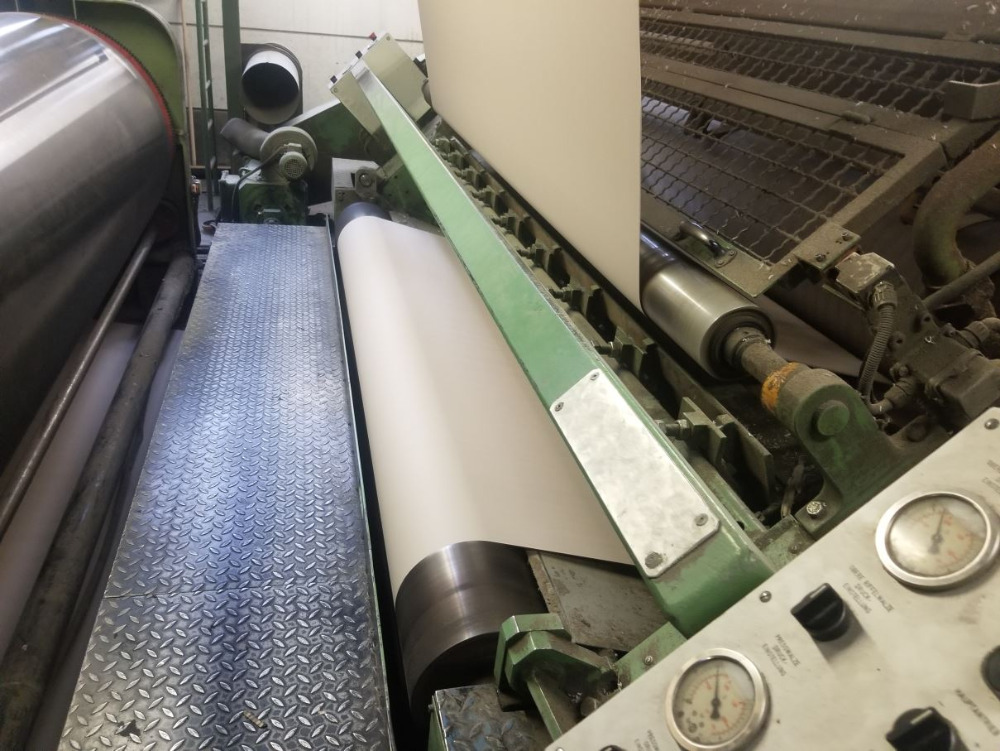

Single Facer 1 |
Peters |
Single Star 209 |
|

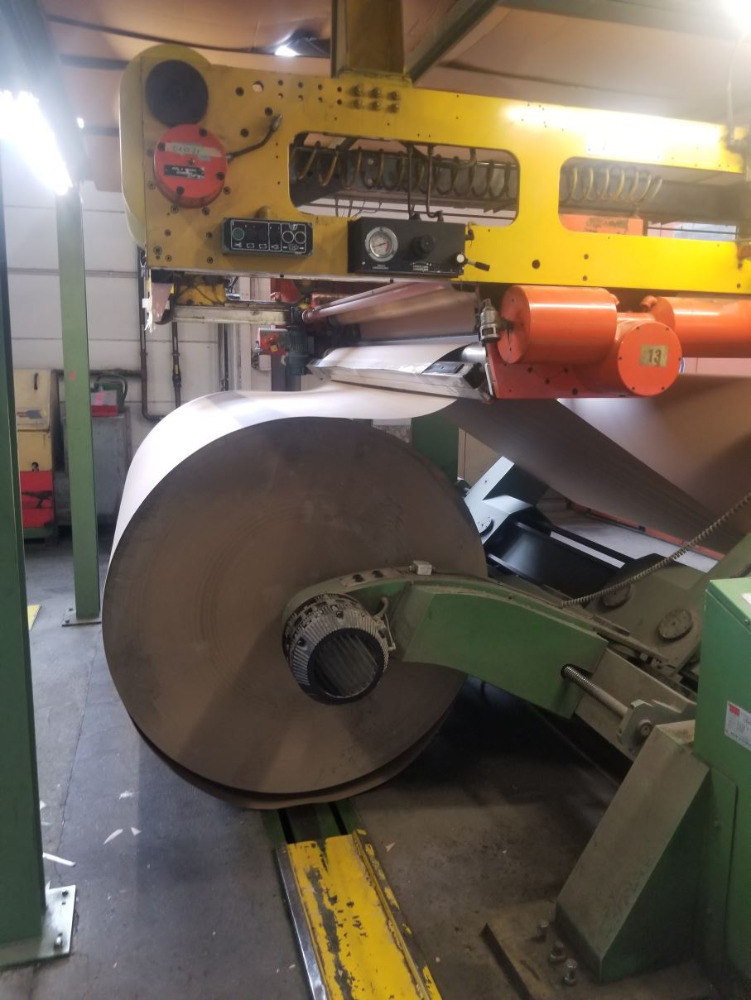

Roll stand 1 |
Favalessa |
Typ PBF 182 |
|

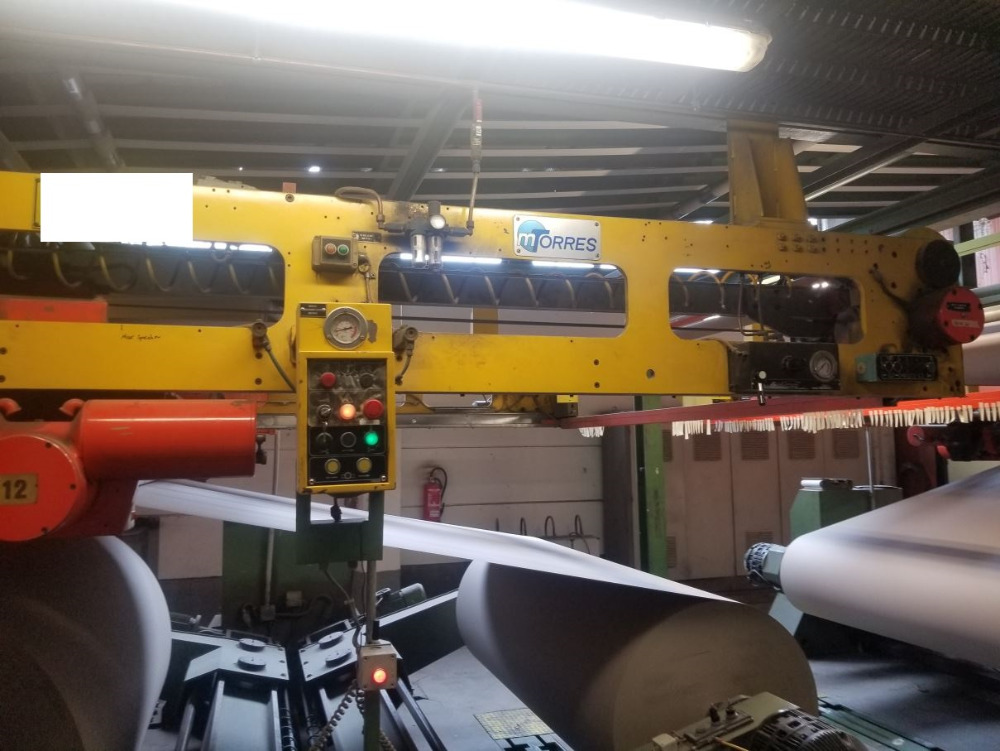

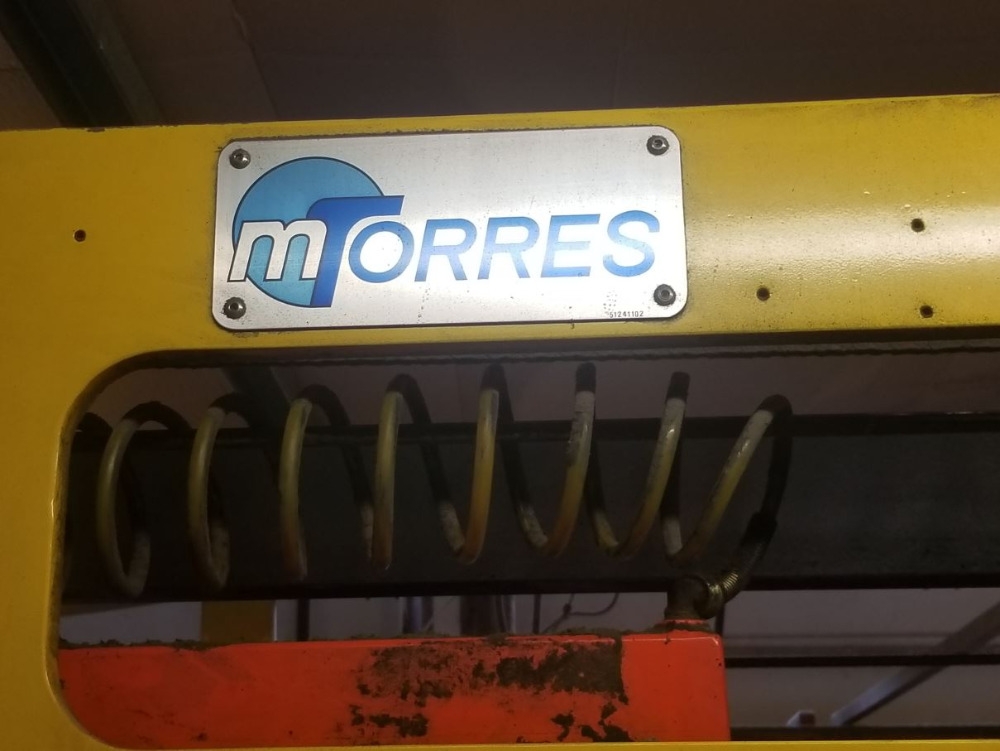

Splicer 1 |
Torres |
Typ 964 |
|
Roll stand 2 |
Favalessa |
Typ PBF 182 |
|
Splicer 2 |
Torres |
Typ 964 |
|
Single Facer 2 |
Peters |
Single Star 209 |
|
Roll stand 3 |
Favalessa |
Typ PBF 182 |
|
Splicer 3 |
Torres |
Typ 964 |
|
Roll stand 4 |
Favalessa |
Typ PBF 182 |
|
Splicer4 |
Torres |
Typ 964 |
|

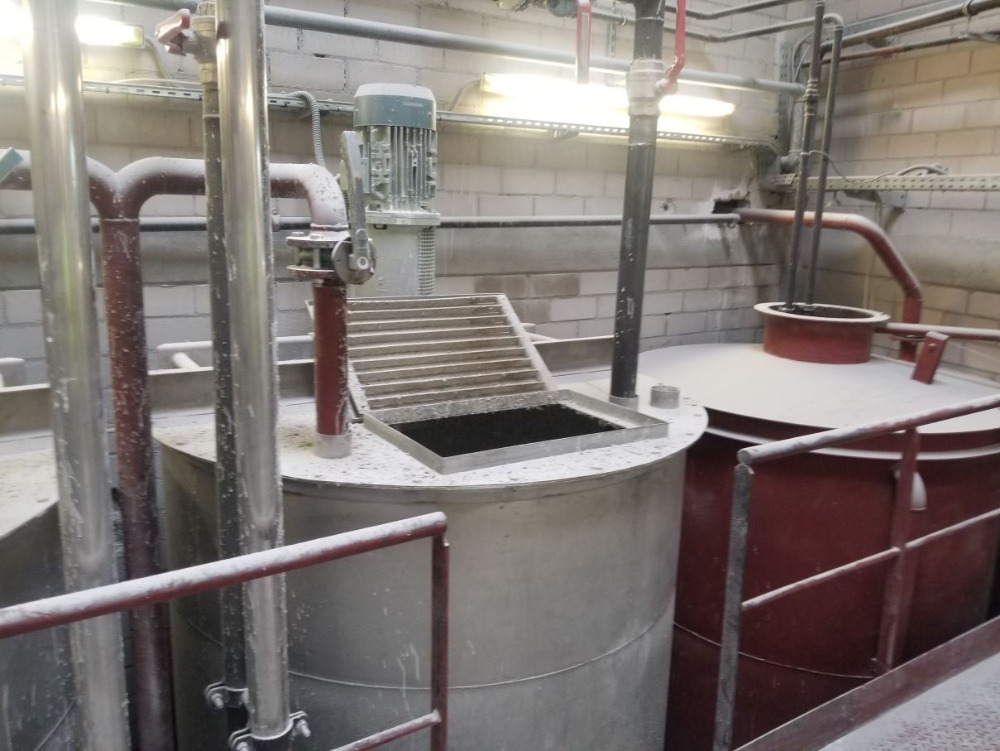

Glue unit |
Peters |
Gluemaster S Typ 313 |
|
Roll stand Glue unit |
Favalessa |
Typ PBF 182 |
|
Splicer Glue unit |
Peters |
Typ 964 |
|
Triple |
Favalessa |
TYP PRF 900 |
|

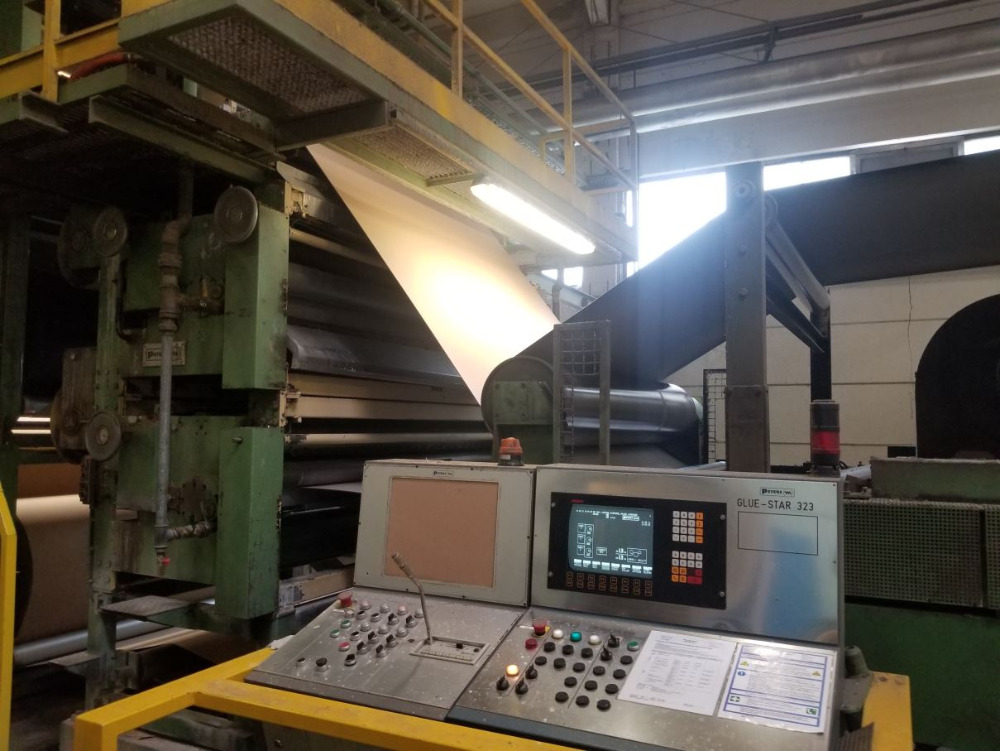

Double backer |
Peters |
Thermoplan Typ 311 |
|
Rotary shear |
Peters |
Maxi-Cut Typ 318 |
|
Slitter scorer |
Göpfert |
125 RSA |
|
Cut-off knife |
Peters |
Speed-Cut Typ 514 |
|

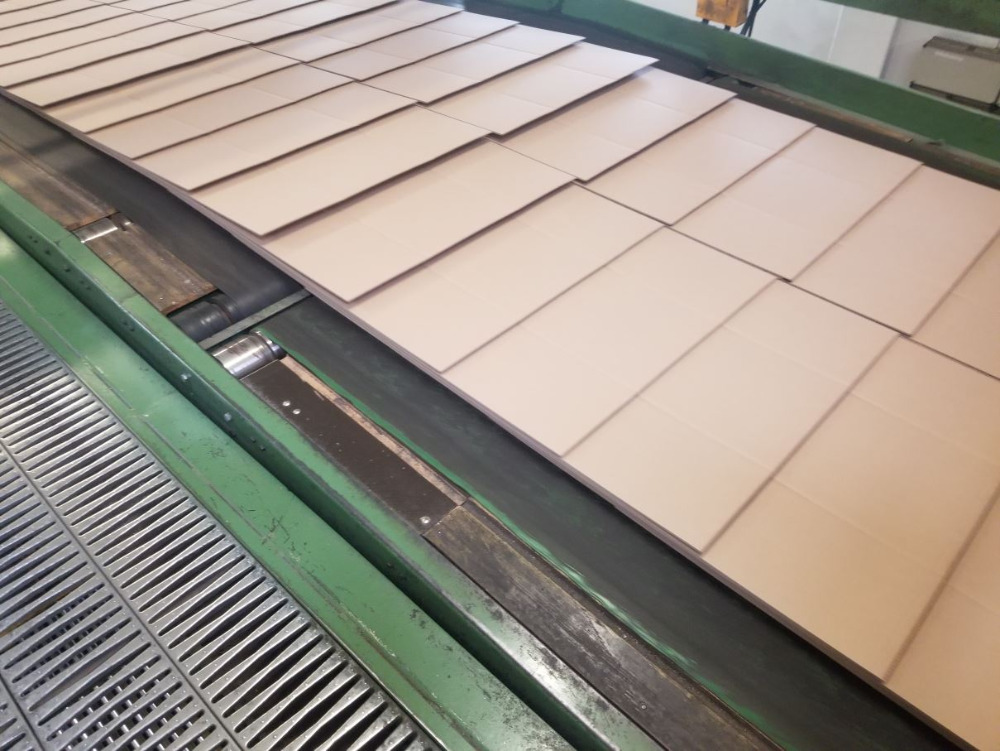

Stacker |
Favalessa |
RAF 602 |
