Used paper machine
Products: High performance fluting paper
Testliner 3 one lay
Wire width: ca 3360 mm
Net width: ca 2800 mm
Production capacity: ca 200 t/day
Grammage range: 90 – 150 GSM
Speed: mechanical 500 m/min, production 450 m/min
Paper machine efficiency 94 %
Predrying section installed: ca. 1990.
Postdrying section installed : 1960 ies, with replacements more recently.
Power requirement: Ca 4 MW for paper line
- No basement is required for installation. The entire paper machine is at level 0

Consisting of following main components:
Approach flow system 3 HD cleaner Black Clawson

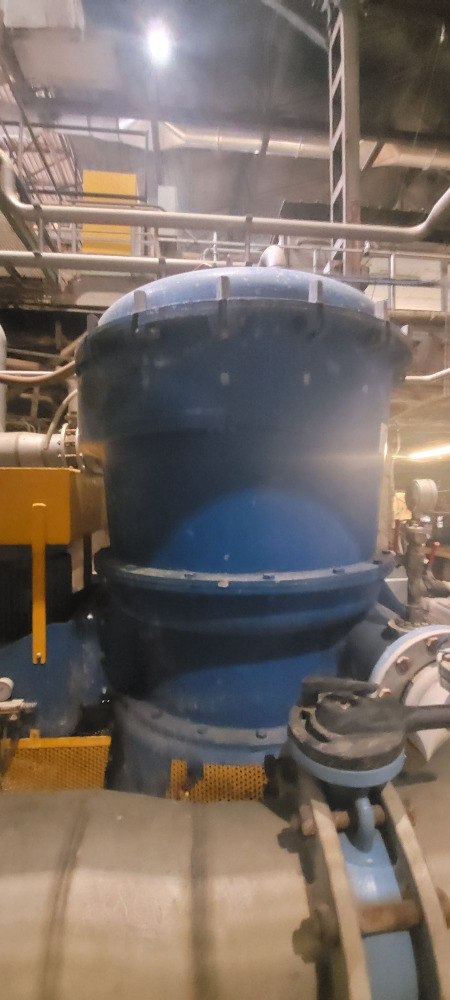

3 Pressure screens Black Clawson / Ahlstrom
Fan pump / Stock pumps Made by Scanpump
In stainless steel

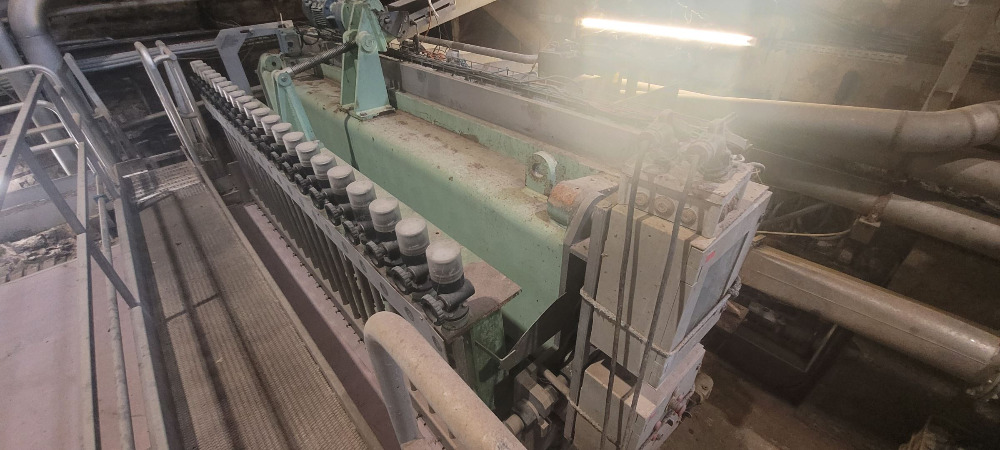

Headbox: Year ca 1990
Made by Allimand with
Cross flow distributor
22 spindle adjustments
Wire section: Made in stainless steel
Press section 1. Press
2. Press

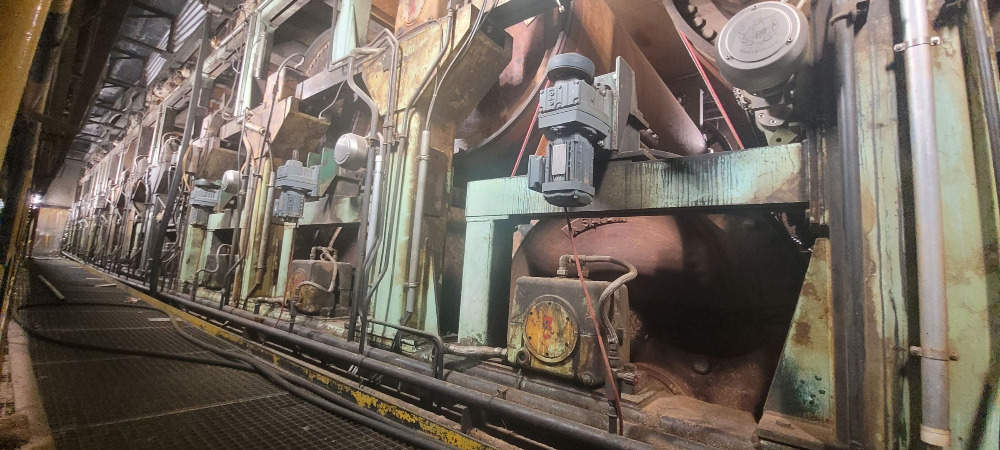

Drying section Drying cylinders with 10 bar, casted by SAFEM /France
Size press
After dryer section
Hood Supplies by Bellmer
www.paptec.com ID: 5635 3/4
Measurex scanner Year 2002
Turn up System: Made by IBS Type RCS 3001
Pope reeler ca 5 units Tambours
Overhead crane
Vacuum system Hibon vacuum pumps
2 x size 140
2 x size 50
Size press kitchen
Rewinder Made by A Celli
Bale width 3100 mm
Refurbished ca 2015 by Thiry Belgium
Speed ca 1500 m/min
Steam and condensate
system: Continuously updated
Starch preparation
Hydraulic unit
Continuously updated controls
Lot of spare parts, for every press roll min 1 spare roll included
Big assortment of felts
Control system: The currently installed control system is connect-ed with the still running part of the mill and not available.
Stock preparation: The stock preparation is not available. Currently we can provide a stock preparation line from an-other location.
