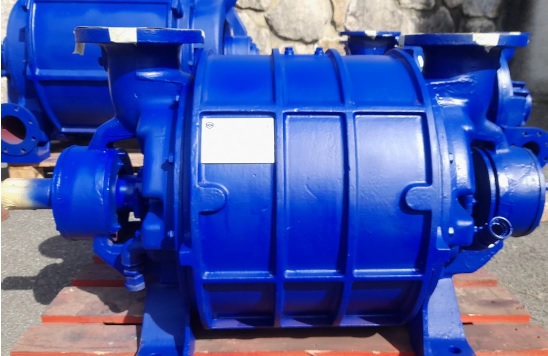

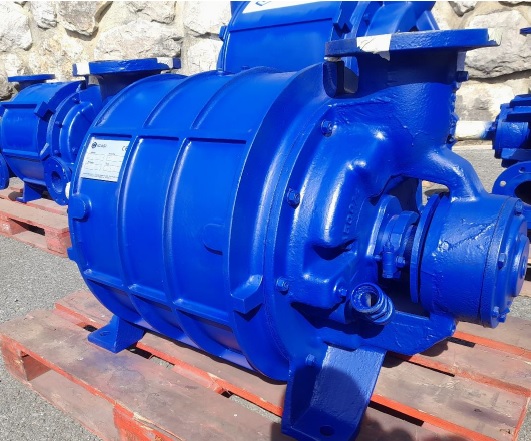

Liquid Ring Vacuum Pump IG1001
Vakuumpumpen
![](https://s3.eu-central-1.amazonaws.com/paptec/media/mainimages/5812-1.jpg)
1 verfügbar
Technische Daten:
Maschine:
Liquid Ring Vacuum Pump IG1001
Artikel-Nr.:
5812
Hersteller:
Igasi
Typ:
IG1001
Jahr:
2020's
Beschreibung:
Model IG1001
Suction Flow 1200 - 2100 m3/h
Vacuum 200 - 600 mm Hg
Maximum power 45 KW
Liquid temperature 20ºC PH= 6, TH= 18º
Suction connection DN125
Supply connection DN100
Liquid ring connection 1”G
Shaft diameter 70 mm
