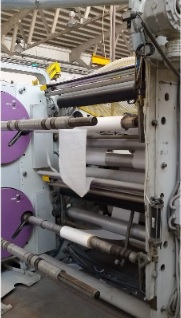

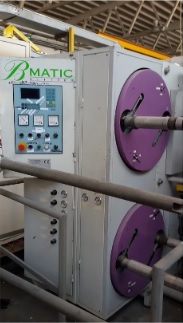

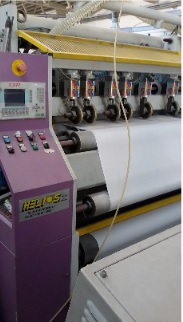

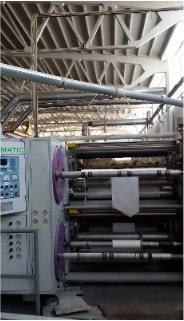

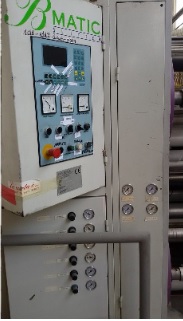

Cutting Machine B Matic
Papiertütenmaschinen
![](https://s3.eu-central-1.amazonaws.com/paptec/media/mainimages/5825-1.jpg)
Technische Daten:
Beschreibung:
Useful light: 1600 mm
Compressed air: Pressure Bar 6
lt 10 at 6 Bar. (each rewound)
Voltage: volt 400 three-phase Hz 50
Installed power
Main motor 3,6 kW AC
Winding motors kW 14.5 AC
Brake motor kW 14.5 AC
KW 2.2 three-phase trimmer motor
KW 0.36 three-phase fans
Three-phase kW 0.5 turret motor
Electric power kW 32
Mother coil
max width 1600 mm
max diameter 1000 mm
core diameter 76-152 mm
Derived coils
max diameter 600 mm
core diameter 76 mm
Max speed: 450 m / min.
Weight: about 3500 kg
Allowed temperature:
Min - 5 °
Max + 50 °
Max 95% HUMIDITY (without condensation)
