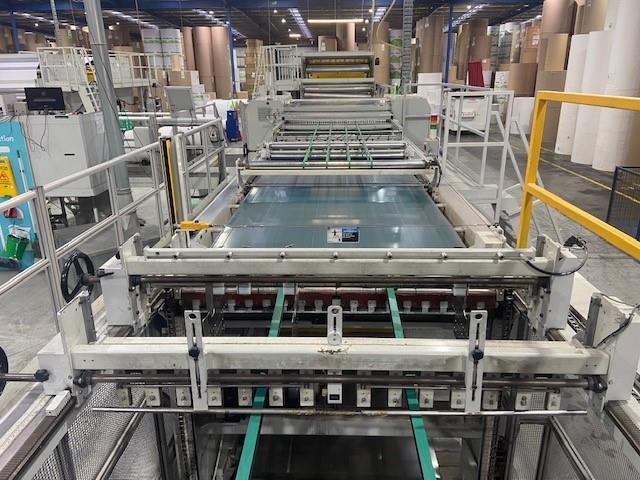

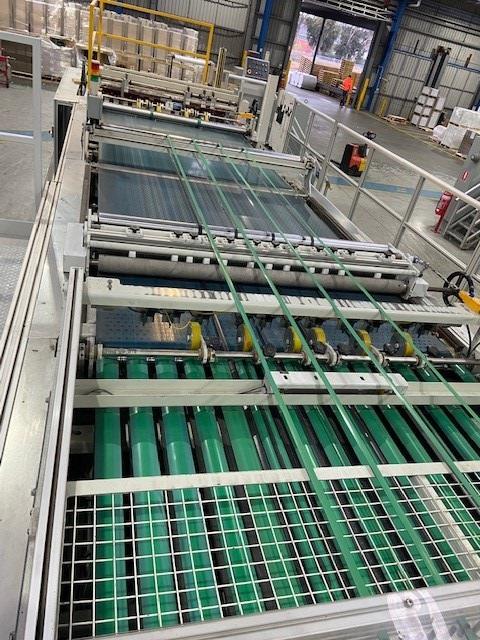

Querschneider marquipward united, 1650 mm
Querschneider
1 verfügbar
Technische Daten:
Maschine:
Querschneider marquipward united, 1650 mm
Artikel-Nr.:
6186
Hersteller:
Marquipward united
Größe:
1650mm
Kapazität:
335 m/min
Jahr:
ca. 2015
Beschreibung:
Standort: Süd ost Asien
| Technical Parameter | Metric (Product Detail) | Imperial (Options) |
|---|---|---|
| Sheet Width (max.) | 1650 mm | 65" |
| Reel Width (optional) | 1700 mm | 67" |

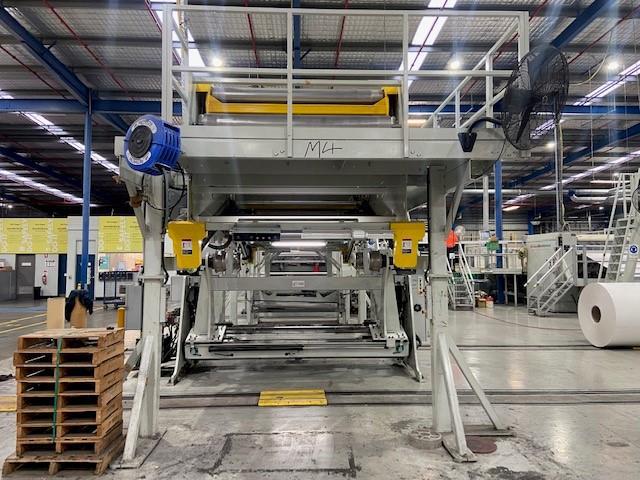

| Reel Diameter (max.) | 1850 mm | 73" |
| Reel Weight (max.) | 3410 kg | 7500 lbs |
| Core Diameter (min./max.) | 70 mm | 3" |
| Speed (max.) | 335 m/min | 1100 ft/min |
| Length Accuracy (Single Web) | ±0.38 mm | ±0.015" |
| Length Accuracy (Multi Web) | ±0.76 mm | ±0.030" |
| Knife Capacity | 1000 gsm | — |

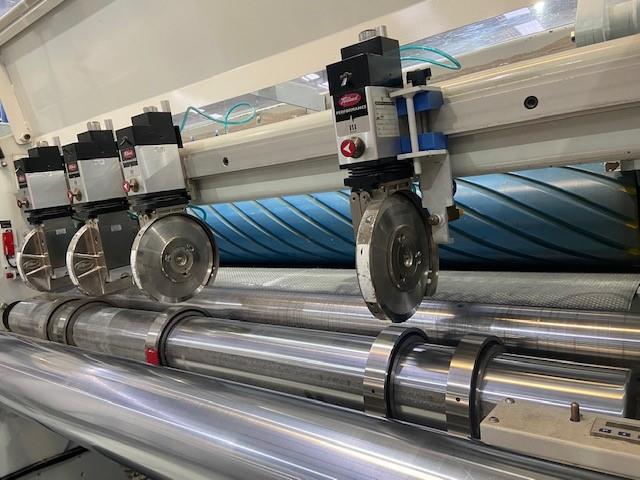

| Slitter Capacity | 600 gsm | — |
| Sheet Length (min./max.) | 400 mm – 1650 mm | 15.75" – 65" |
Key Features:
-
Dual-Rotary Knife System with tangentially mounted blades for clean, consistent cuts
-
Vacuum Knife Trim System for dust-free precision
-
460 mm Knife Lift Stroke for high-speed sheet orders
-
PC-Based Control System with menu storage and remote diagnostics
-
Liquid-Cooled Motor & Drives for reduced noise and energy efficiency
Technical Highlights:
-
Max Sheet Width: 1650 mm (65")
-
Reel Diameter: Up to 1850 mm (73")
-
Reel Weight: Up to 3410 kg (7500 lbs)
-
Length Accuracy: ±0.38 mm (Single Web), ±0.76 mm (Multi Web)
-
Material Capacity: Knife – 1000 gsm, Slitter – 600 gsm
Optional Upgrades:
-
Automatic Decurling Rollers
-
Web Cleaning System
-
Splice-to-Splice Detection
-
Automatic Pallet Change
-
Advanced Programming Option
