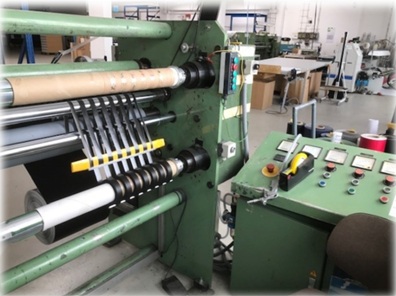

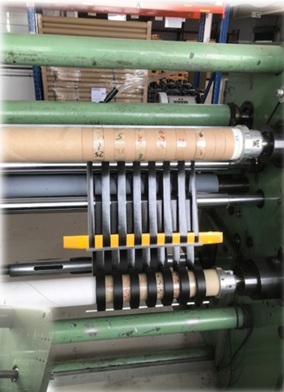

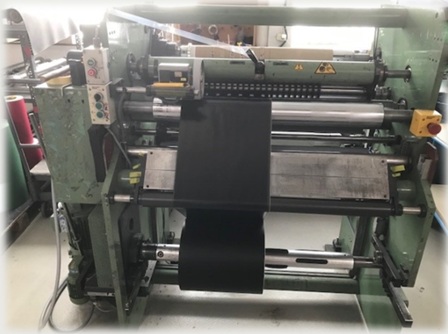

Slitter Rewinder 750 mm
Rollenschneider Umroller
Technische Daten:
Maschine:
Slitter Rewinder 750 mm
Artikel-Nr.:
6248
Größe:
750 mm
Jahr:
1990's
Beschreibung:
Speed: 5 - 80 m/min
Winding:
Reel change: manual
Max. reel width: 750 mm
Min. reel width: 600 mm
inner core diameter: 76er, 152er (3'' + 6'')
Max. web width: 400 ym
Min web width: 40 gr/m²
Max. outer diameter: 600 mm
Max. reel weight: 2500 kg
Cutting
Typ: silhouette cutting
possible cuts: depending on track and cutting width
Max. cutting width: 600 mm
Min. cutting width: about 10 mm
Stacking
Removal: manual
Quantity reel schafts: 2 (friction shaft possible)
Max. roll width: 650 mm
Min. roll width: 10 mm
Inner core diameter: 76er (3'')
Max. carrier thickness: 400 ym
Max.roll outer diameter: 400 mm
