Tissue Verpackungslinie für Küchenrollen und Toilettenpapier
Tissueverarbeitung und Verpackung
Technische Daten:
Maschine:
Tissue Verpackungslinie für Küchenrollen und Toilettenpapier
Artikel-Nr.:
6266
Hersteller:
TMC / OCME
Typ:
Kitchen and toilet tissue rolls
Beschreibung:
Can be utilised for both the types: Kitchen tissue or Toilet tissue grade
1.

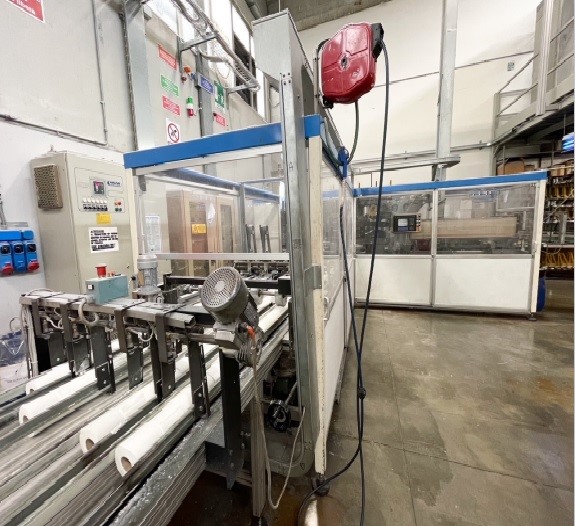

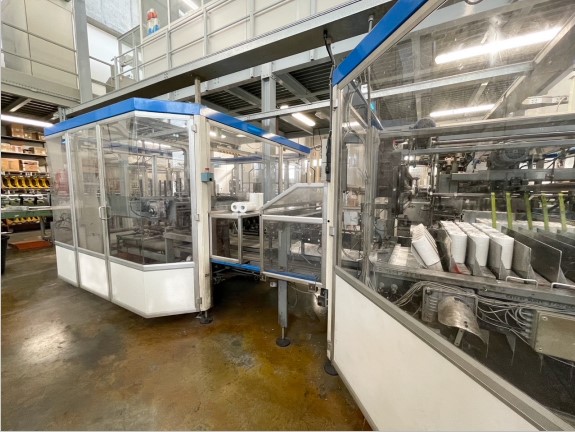

QW 1800 Packaging Machine
Handles all formats from 1 roll to 32 rolls.
Diameter from 90mm to a maximum of 198mm.
Packaging in both poly and paper.
Speed: 90/110 strokes per minute (depends on formats).
2.
TMC FBS400 Bagging Machine
Speed: 9 bags per minute (depends on formats).
3.

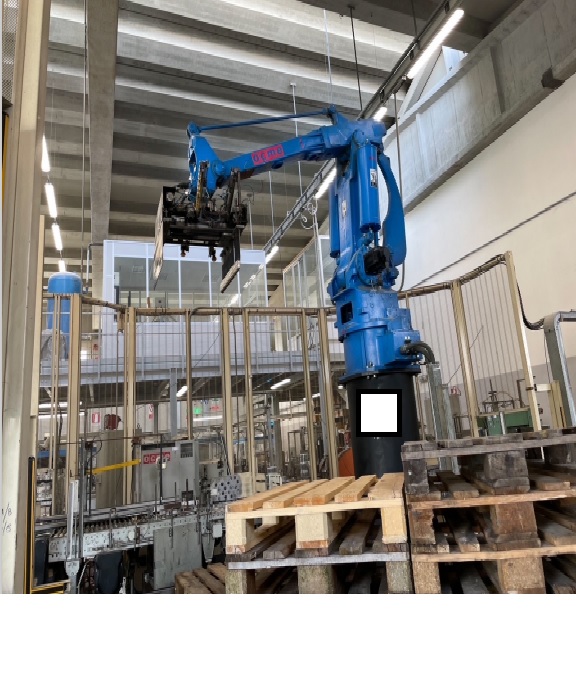

OCME Motoman Robot
H.2800,
Performs 10 picks per minute, for a total of 10/11 pallets per hour. (0.8x1.2x2.50h).
4.
OCME Ballotti Shuttle with Laser
Simultaneously transports two columns h 250.
5.
PIERI AVR104 SPECIAL 399/97 Auto. Stacker Wrapper
Its speed is 20/22 turns per minute per column h 250.
This line comes with all the mechanical and electrical components with spare parts.
The end-of-line is additionally equipped with a sack weighing scale and transport tracks
