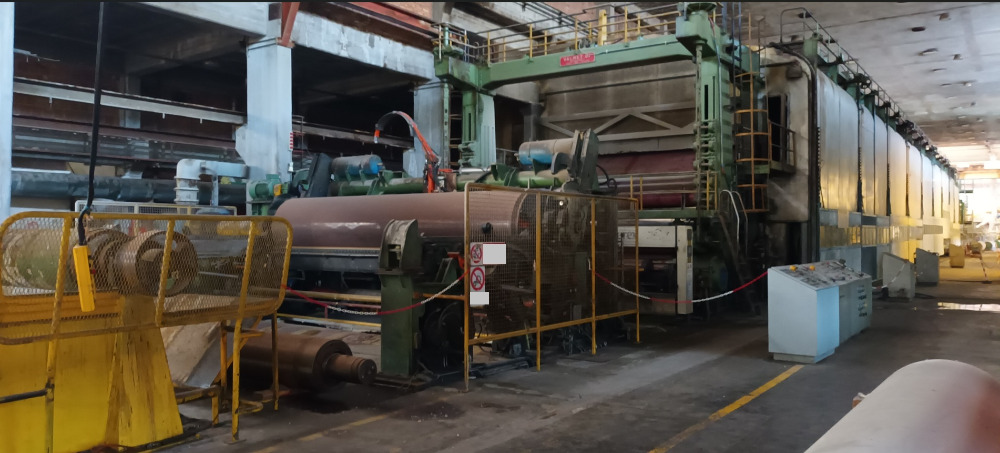

Paper machine 5320 mm, 300 t/day
PM Grafisches- / Verpackungspapier
Technische Daten:
Maschine:
Paper machine 5320 mm, 300 t/day
Artikel-Nr.:
6299
Typ:
Top former fourdrinier
Größe:
5320mm at reel, 32- 62gsm
Kapazität:
ca. 300-400 TPD & 1200m/min
Beschreibung:
Details;
Basis weight (g/m²) 32 – 62
Products LWC (Lightweight Coated),
MWC (Mediumweight Coated)
Maximum production speed 1248 m/min

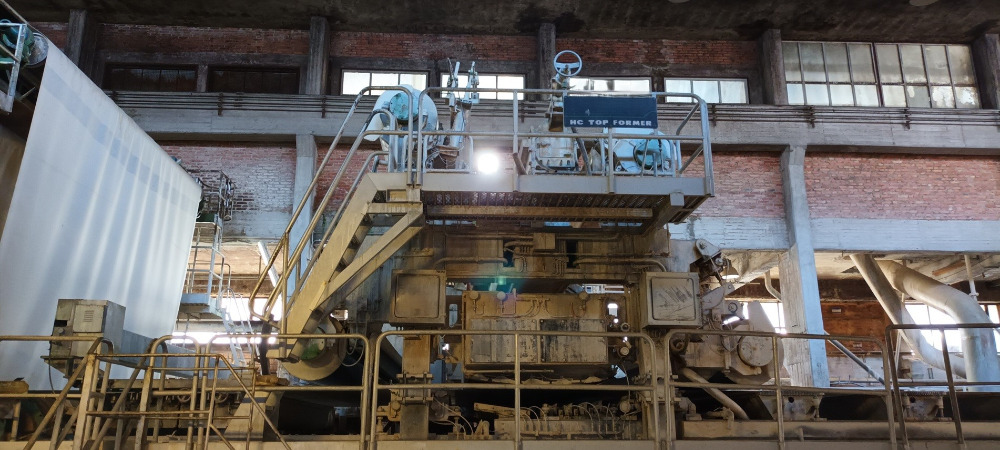

Machine section HC Top Former
Discharge width 5706 mm
Trimmed width Reel 5320 mm
Machine section HC Top Former
Wire width 5910 mm
Main drive system Single motor drive
Electrical connection 50 Hz
