Querschneider Synchro-fly 1450 mm
Querschneider
Technische Daten:
Maschine:
Querschneider Synchro-fly 1450 mm
Artikel-Nr.:
6397
Hersteller:
Miltex
Typ:
Milltex-Synchroflex
Größe:
1450 mm
Jahr:
2010's
Beschreibung:

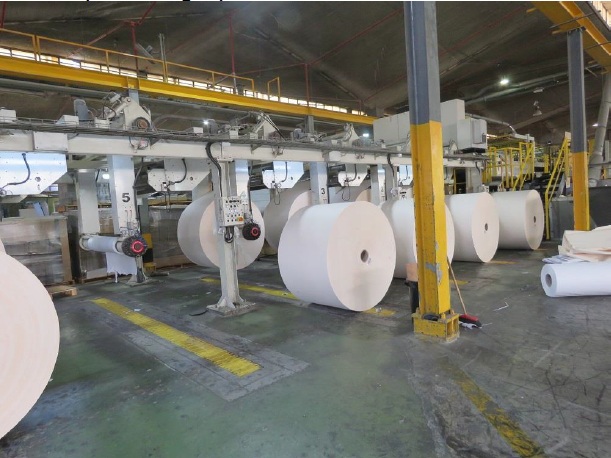

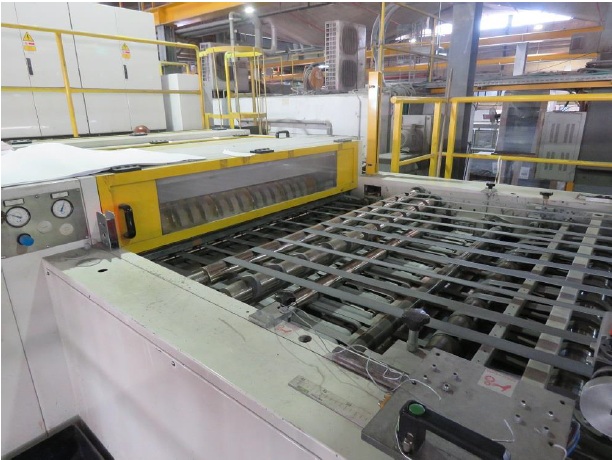

Second hand Synchro fly sheet cutter
Milltex synchroflex
8 real stands with synchro fly sheeter with electronics and with auto pallet change option.
Paper qualities – uncoated paper weight 60-170 g/m².
Max. paper width after trim – 1450 mm.
Min. paper width – 430 mm.
Max. format length – 1400 mm.
Min format length – 500 mm.
Number of unwinds – 8 pc.
Chuck diameter – 3" and 6".
Roll diameter – 400-1500 mm.
Roll width – 450-1470 mm.
Max. production speed – 300 m/min.
Max. blade load – 600 gr/m².
Max. stacking height – 1600 mm. pallet included.
Max. pallet weight – 1500 kg.
Max pallet width – 1440 mm.
Min. pallet width – 450 mm.
Max pallet length – 1400 mm.
Min. pallet length – 500 mm.
