General Information

Company: DIENES

Type: Modul IV "Controller" with 15 pcs Scissors cut units type PSG-DF

15 pcs motor driven knives

Building year: 2008

1. Main Parts

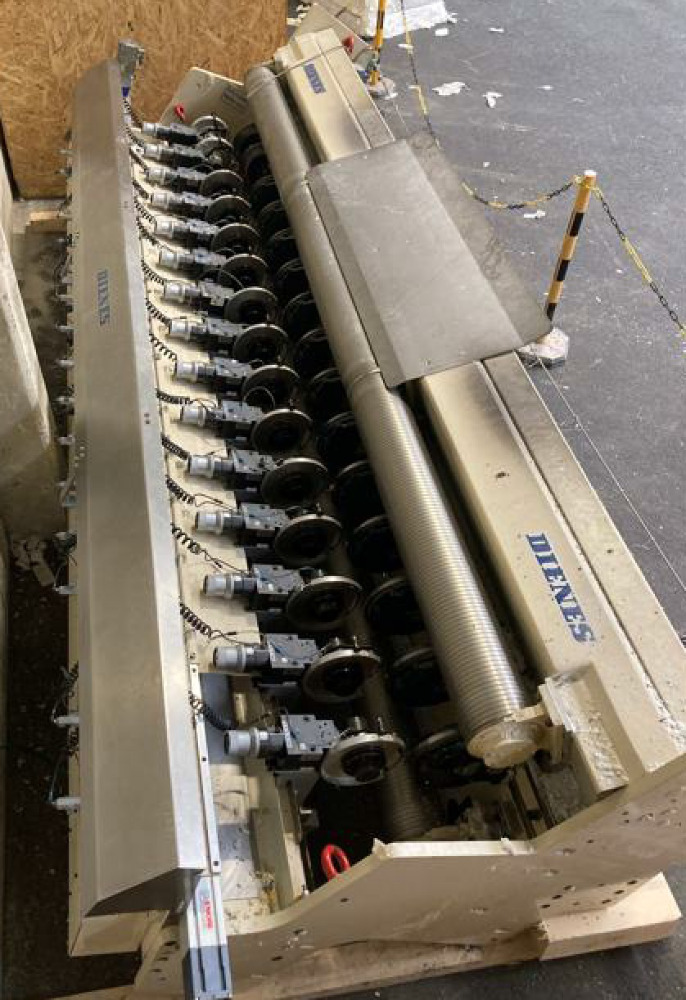

a. Cutting unit

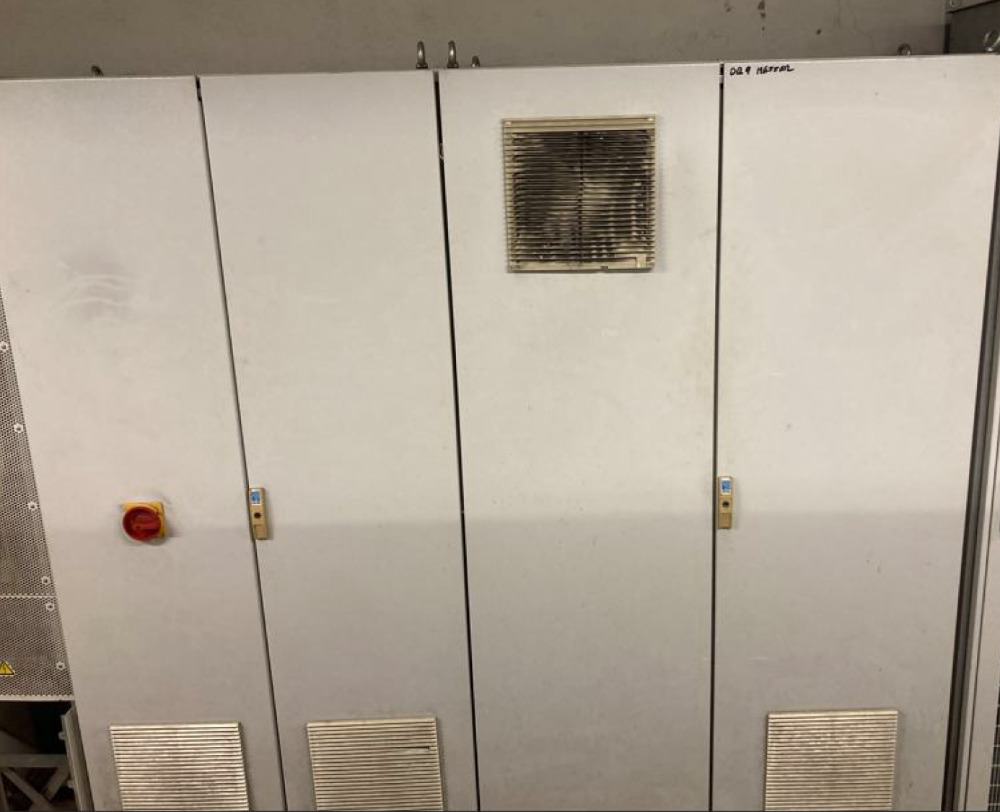

b. Electrical Cabinet

   Dimension: 220 x 225 x 65 (B x H x T)

   Equipped with:

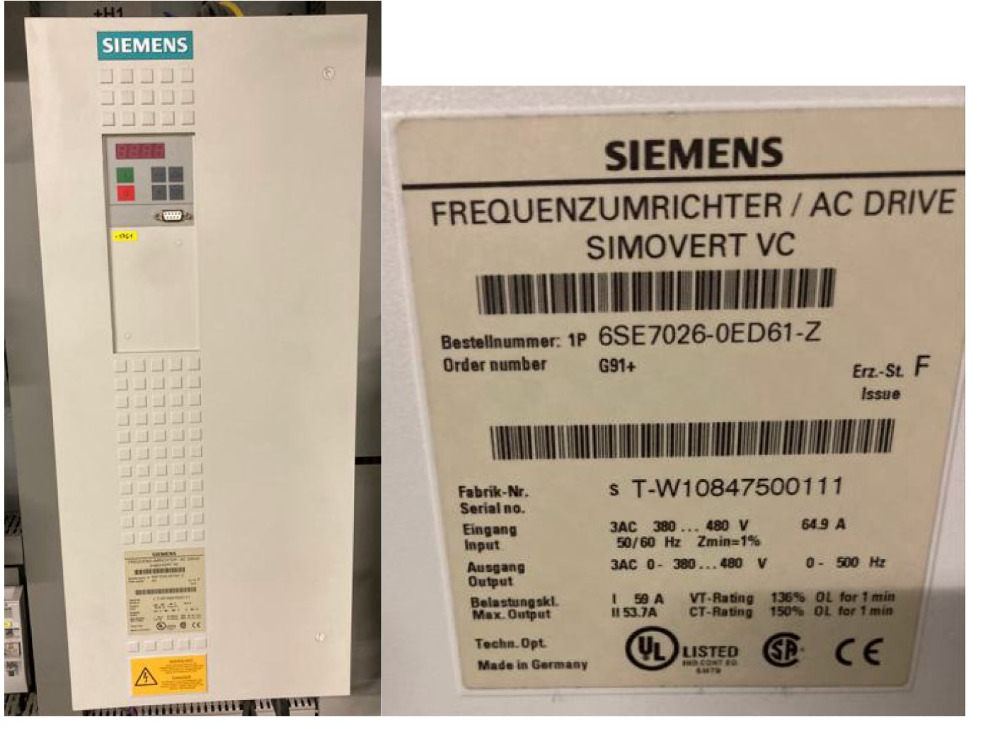

   - Frequency converter for motor driven knives

   - Frequency converter for automatic paper adjustment system

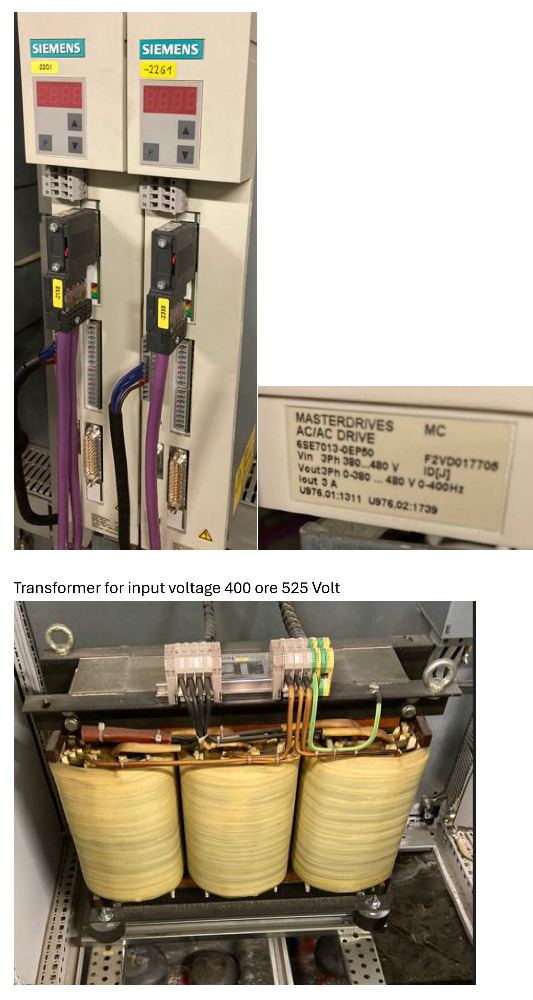

   - Transformer for input voltage 400 or 525 Volt

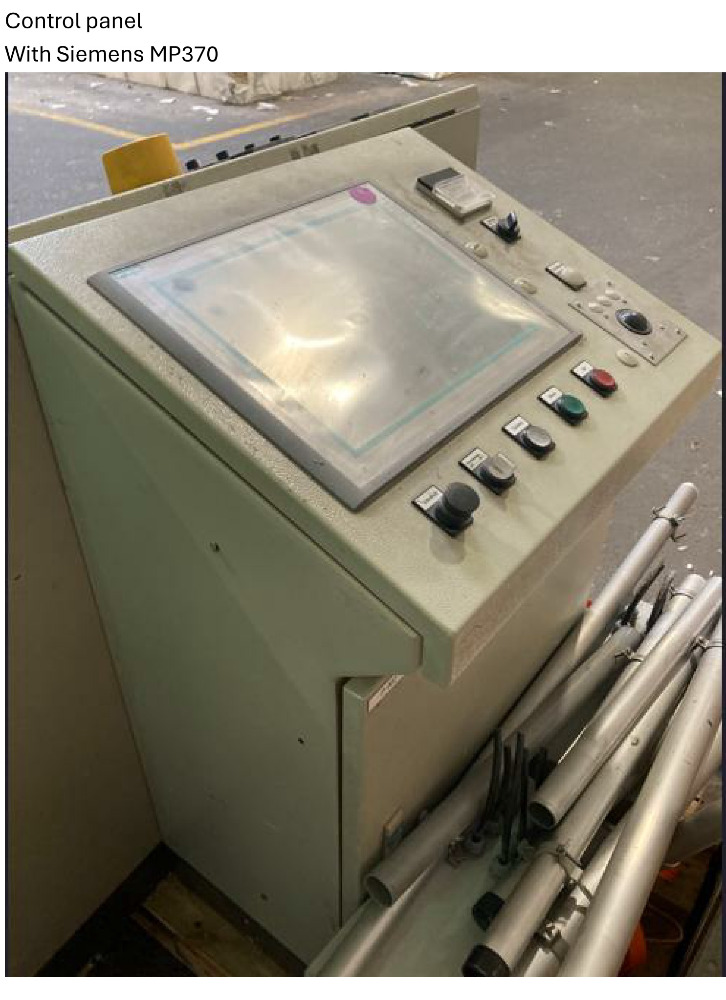

c. Control panel with Siemens MP370

2. Specifications

- 15 Scissors cut units

- Operation width: 3460 mm to 3150 mm

- Tissue paper grade: 14 – 18 g/m²

- Max. 1500 m/min

- Minimum cutting width: 155 mm

- Producer declaration (no CE)

- Extensive spare parts

- Complete documentation

3. Details

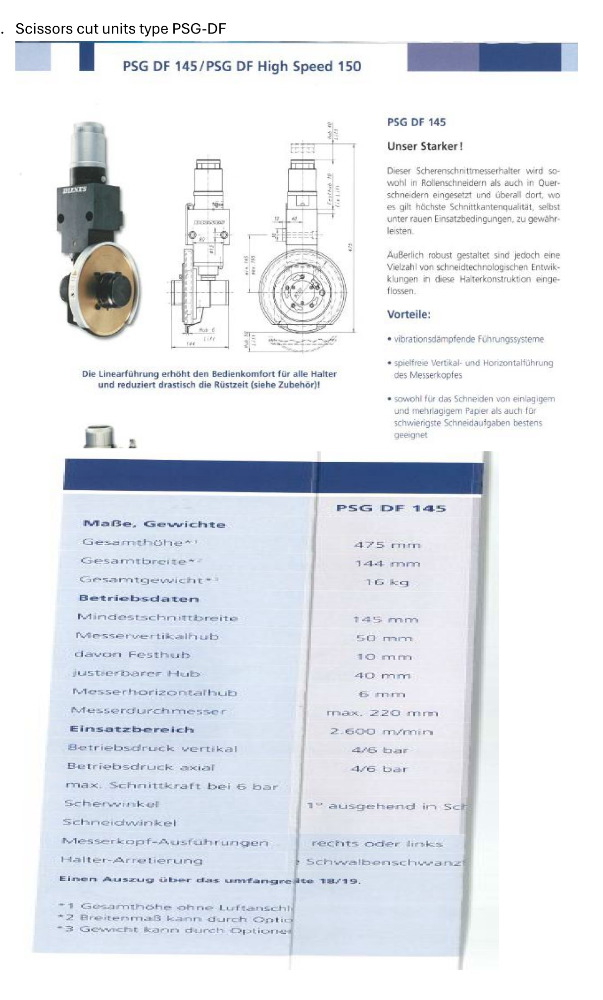

a. Scissors cut units type PSG-DF

b. Knives:

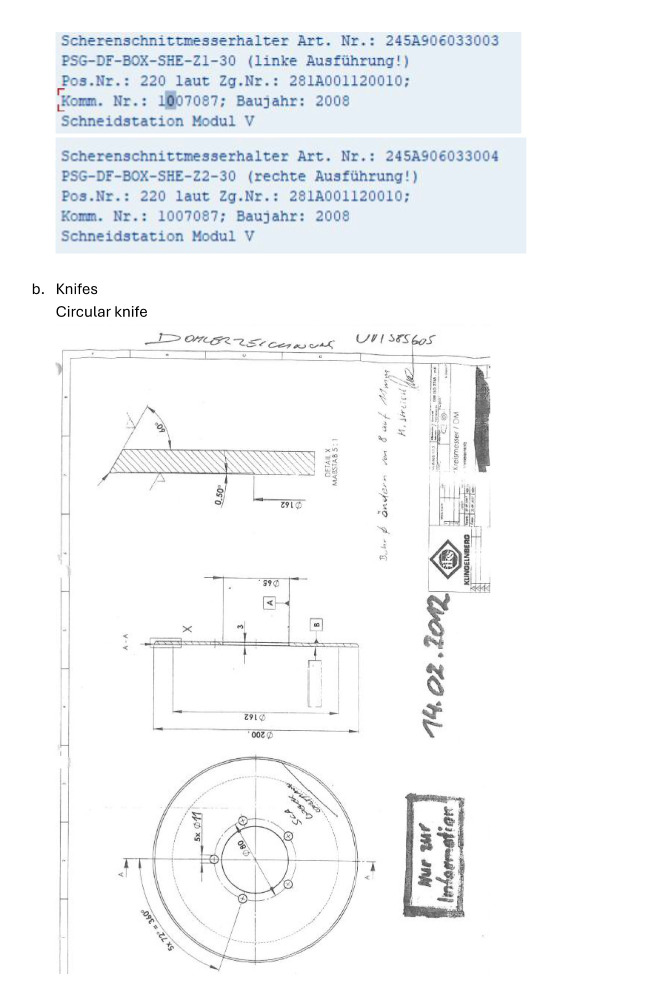

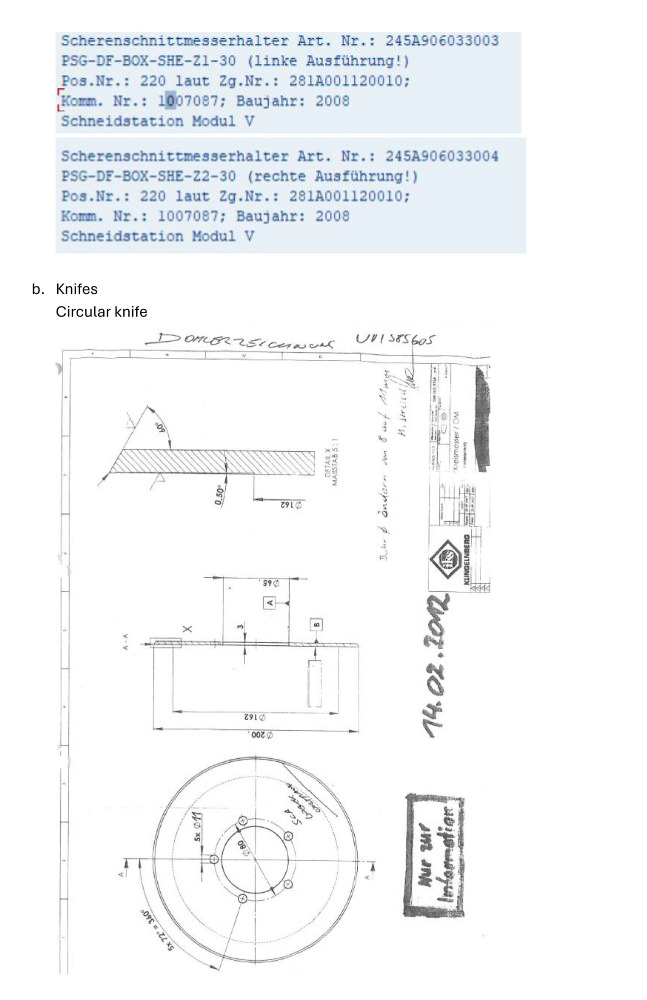

   - Circular knife

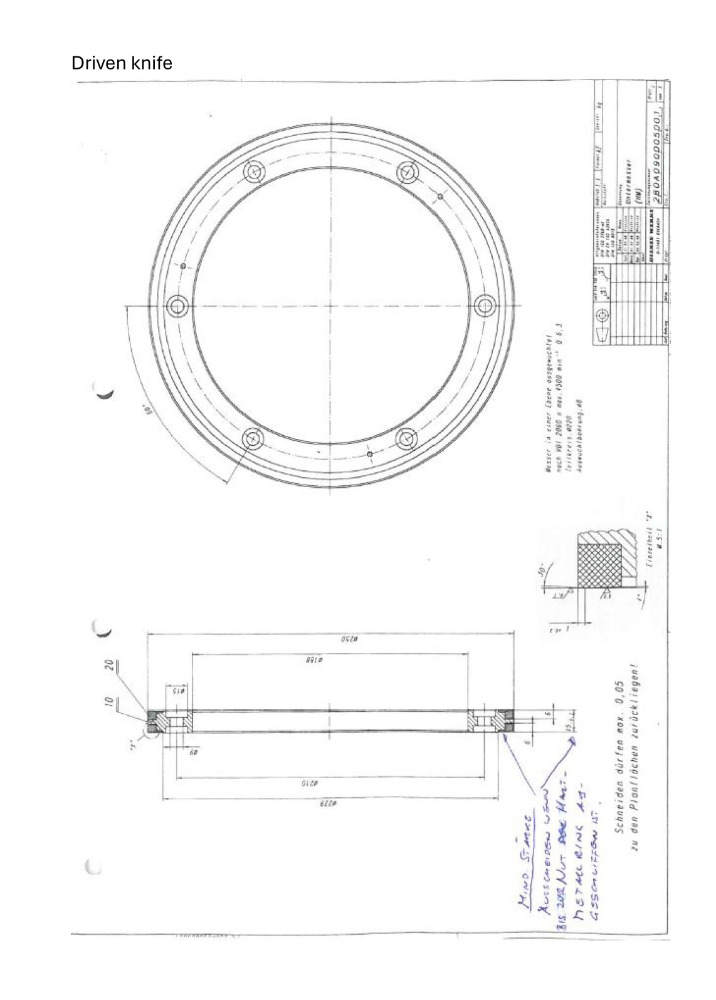

   - Driven knife

4. Spare Parts

- 1 piece complete scissors cut unit PSG DF 145 (right hand)

- 1 piece complete scissors cut unit PSG DF 145 (left hand)

- Knives: 40 circular knives, 11 driven knives

- 1 piece frequency converter SIEMENS SIMOVERT VC

- 1 piece frequency converter SIEMENS MASTERDRIVE

- 1 piece complete linear system for adjusting the knives

- Knife holder

- Driven knife
