Year: 1990s

Shoe Press Voith , Year 2011

GSM: 40-100g/m2

Production capacity: 500ton/day

Paper: Coated paper (Kraft Paper production is possible.)

Design speed: 1400m/min

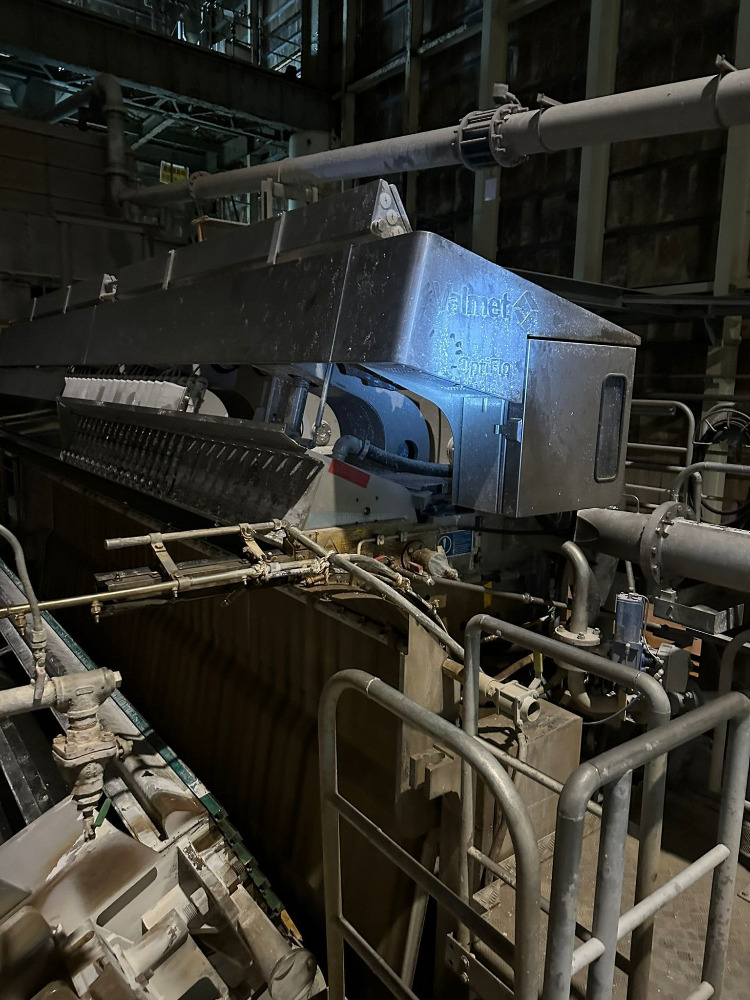

Head box: Retrofit, 2019

Manufacturer: Valmet

Model: Optiflo

Slice width: 5580mm

Twin Wire parts:

Manufacturer: Valmet

Top Wire: 5800mm X 43m (Length)

Bottom Wire: 5800mm X 19m (Length)

Model: BellForm Former III

Wire tension: 6.2kg/cm2

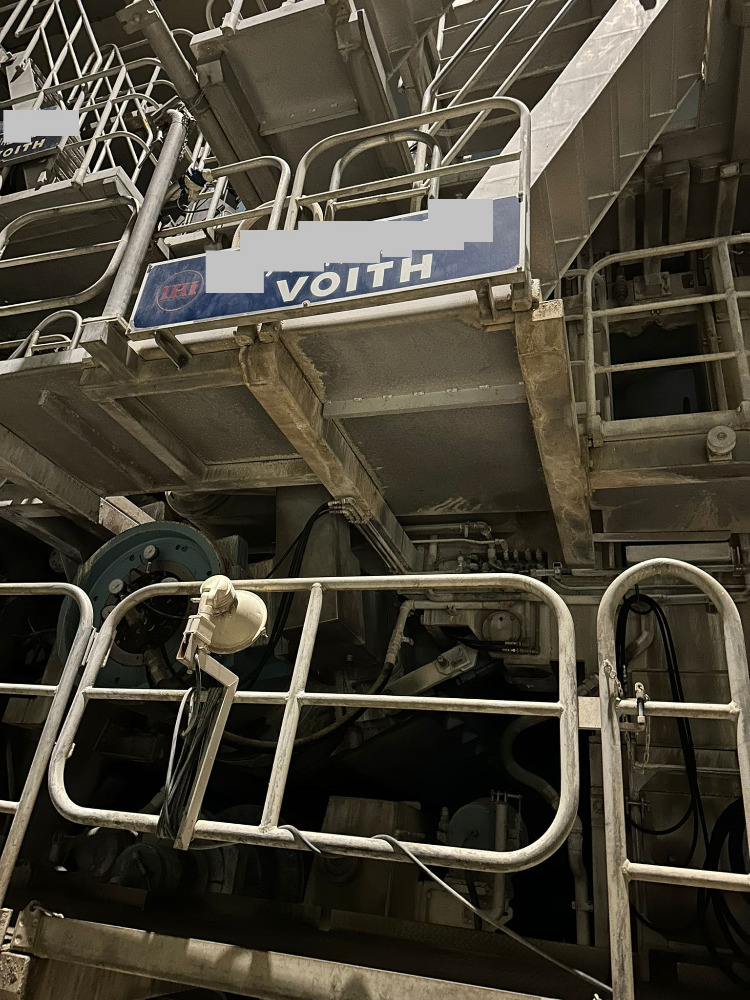

Press part:

Manufacturer: Voith

Type: separate type Duo Centry II +Straight through 4P+ Smoother Press

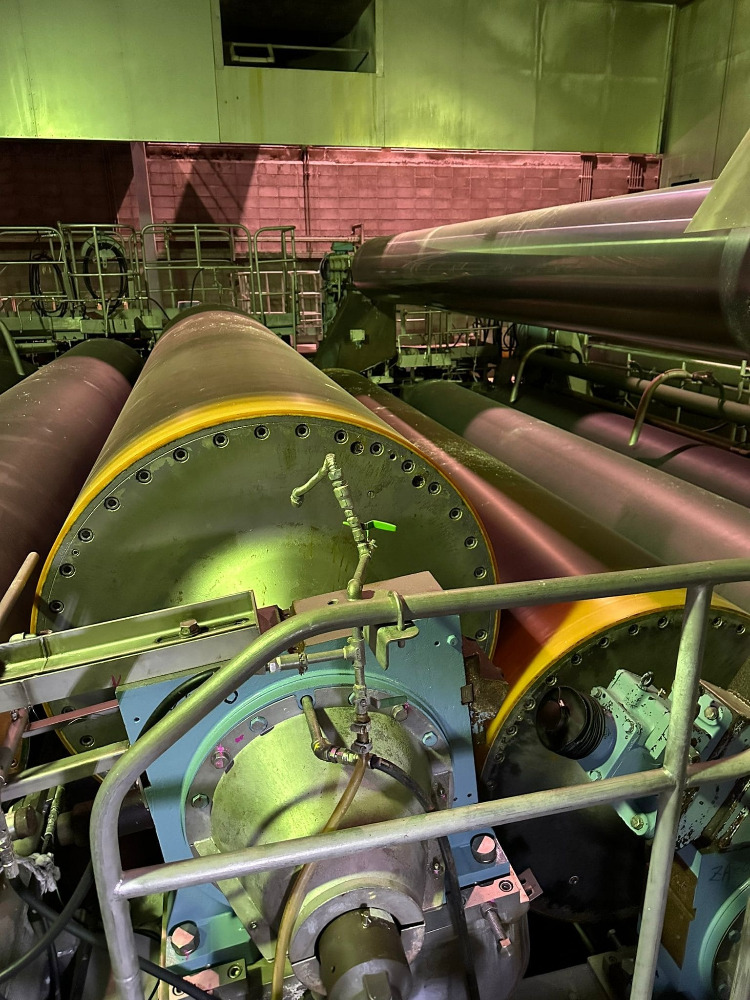

Dryer:

Manufacturer: Voith

Closed gear drive type

The number of dryer rolls:

Pre: 5+5+10+12+12= 44 sets

After: 14 sets

GRC/ Size Press:

6set type Gate roll coater

Calendar:

Soft (super) calendar x2 sets

Line pressure: design 200kg/cm

Bottom roll (Heating)

Thermo jet: impact system

Reel:

Surface reel

Maximum winding diameter: 3000mm

Winder:

 Retrofit 2018

Manufacturer: Valmet

Single dram surface reel

Winding roll diameter: 1500mm

Line speed: 2200mm/min

Slitter segmentation (6 rows)

Winding diameter 250~1500mm x Width 604~2140mm

Trim

Automatic total changing device

Air automatic supply device

Line Length:

Approx. 165m

Defect detector:

Manufacturing year: 1990

Model: 2K40

Electric supply:

Capacity: 5800KW

Frequency: 50Hz

Blade Coater:

Manufacturing year: 1989

Coating width: 5050mm

Coating mass: 7~15g/m2 (one side)

Design speed: 1400m/min
