PM Grafisches- / Verpackungspapier

Hauptbild Name Hersteller Typ Größe Kapazität

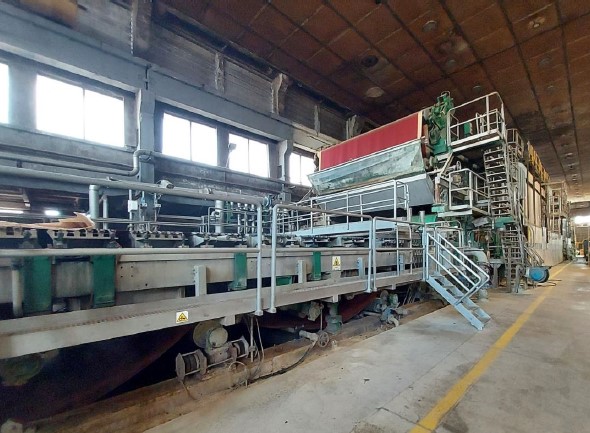

Paper machine 3520mm, 120 tpd, Voith

Design speed: 800 m/min, Operating speed: 700 m/min,

Basis weight: 30 upto 60 g/m²

Hydraulic headbox, 14.5 m wire section with top former

Press section: 606 press (750/750/750) + main press (1000/550)

Dryer section with 28 dryer cylinders

One film size press

One four-roll soft calender, two scanners

One pope reel, one rewinder (2200 m/min)

Vacuum system, drive system, ABB frequency converters

Production capacity: ca. 120 tons/day

Complete paper machine (excluding pulping section)

Scope: from approach flow screening system to rewinder

Equipped with a Voith rewinder with design speed of 2000 m/min

Voith Light weight gsm fourdrinier machine 3520mm 120 TPD, 800 mpm

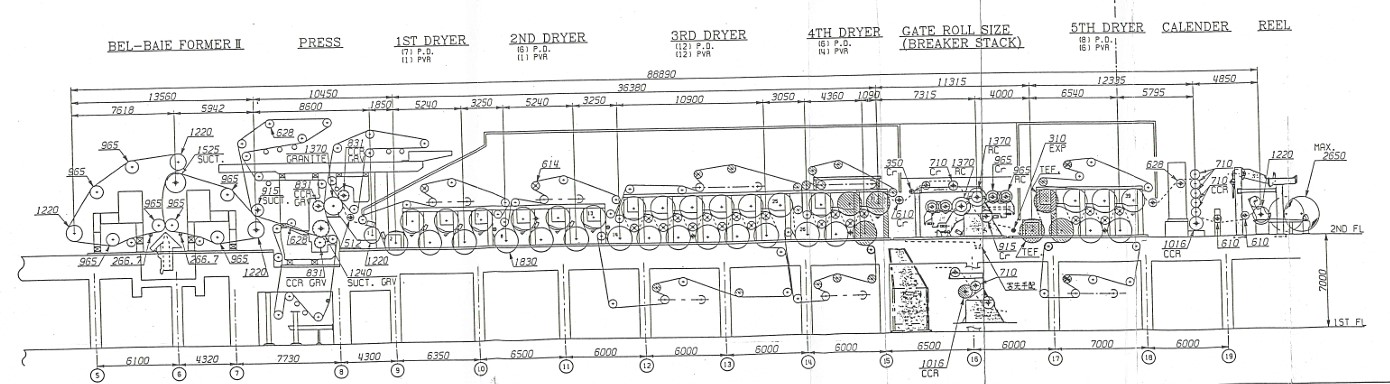

Paper machine 5.69m, 450 t/day

Manufacturer Beloit Walmsley
grammage range (g/m2) 46-120
grades Copy paper, offset, script, envopost
max speed (m/min) 1000
production per year (t) max 160000
headboxes type ConverFlo headbox
press configuration Beloit TriNip Press
dryness after press % 44
nr. cylinders before size press 34
nr. cylinders after size presss 16
cylinder diameter, size press 1260
calendar Yes
quality control system Metso QCS
Beloit-Walmsley Fourdrinier paper machine 5.69 m 1000 m/min speed and ca. 160000 Tons per year

Double layer paper machine 4640 mm trimmed w.

Top headbox: 5180 mm outlet

Bottom headbox: 5000mm outlet

GSM range: 115-200 g/m2

Speed: upto 720 m/min.

Max. drive speed: 750 m/min.

Width after rewinder: 4640 m

Production type: Brown paper for container board

Press section: 2 Presses

Press 1: Uni Press : 70Kg/cm

Press 2: High impulse Press: 300kg/cm

Cylinder dryers: 46 preheating section, 20 post dryers, 66 in total

Design speed: 1000m/min.

Starch press: roll dia: 700mm and 950 mm

QCS: Manufacturer: Voith, year 2010s

With rewinder



Stock preparation

Stock Preparation Line (Optional)

The stock preparation line is composed by

- a set of high-density Cyclones,

- 2 stages of coarse screening process.



The stock for each ply is treated also with 3 stages of fine screening.

High Density Cyclon D2C-S Voith 4

Coarse Screening FS3B Escher Wyss 1

Coarse Screening FS2B Escher Wyss 1

Fine Sceening (Botom Ply) Sund Defbrator T9 Metso Paper 1

Fine Sceening (Botom Ply) Sund Defbrator T6 Metso Paper 2

Fine Sceening (Top Ply) Sund Defbrator T9 Metso Paper 1

Fine Sceening (Top Ply) Sund Defbrator T6 Metso Paper 2

Thickener Augers M70 Maule 8

Refners Major 30 " Black Clawson 1



Rewinder

A slitter-winder (Valmet Win-Drum)  installed in 2000s

max working width of 5'300 mm.

Max. parent roll diameter 2'700 mm

Max. trimmed width parent roll 5'300 mm

Max. operating speed 2'500 m/min

Max. roll diameter 1'500 mm

Max customer reel width 700 – 2'800 mm

Max. Customer reel weight 3‘000 kg

Customer Reels per hour 20 – 30







KMW Carcano Double ply fourdrinier Machine 4.64 meters trimmed width 115-200 GSM and max. speed 750 m/min with Production: ca. 800 Tons per day

Paper machine for fluting and testliner 200 t/day

Capacity of Production :  200 Tons per day. 65K per year

GSM range: 100 ~ 265

Width of Paper on pop reel: 2660mm

Speed of machine:   400m/min



2 stock preparation lines

European 2660 mm 200 t/d

Paper machine 6900 mm

Second hand news print (can be converted into fluting) paper production machine

Gramages Range:48-51 gsm

Use of chemithermomechanical (CTMP) pulp –

Design speed: 900 m/min –

Production speed max.: 820 m/min

Production speed avarage: 650 m/min

Wire: Two wire (papriformer)

Wire Width: 7.500 mm

Web Width: 6.900 mm

Net web width (after rewinder): 6.840 mm

Basis weight (= % 2,5) : 48-51 g/m²

Moisture (# 0,5) : 7,5 %

Production day: 350 d/year

Production with (51 g/m2): 286 t/d

Paper machine production capacity (51 g/m2): 100.000 t/year

Accuray 1180 QCS year 1988 –

INCLUDING :

Jagenberg rewinder Winding Coil Diameter : 1.500 mm

Unwinder Coil Diameter : 2.000 mm

2 Main Motor,

Power of the per motor is 214 Kw.

Automatic brake and edge control system

15 Knives

Operating Speed: 2300 m/min

European Two wire 6900 mm 286 tpd

Voith writing and printing paper machine 5300 mm

Voith writing and printing paper machine with Tri Nip Press, which is designed to make from 30 to 130 gsm, with speed of 800 mpm.
Headbox slice width is 5300 mm,
Wire width is 5400 mm
Press rolls width is 5300 mm
48 Dryers 1500mm OD 5325 mm face
Size press Roll 5200 mm face width
Pope reel is 5400 mm face width
Jagenber Vari Dur Rewinder with 10 Tambour rolls.
Voith 5300 mm 250 tpd

Kleine Papiermaschine für 500 t/Monat

Product: 100% recycled papers / Schrenz, Fluting, Coreboard
Grammage range: 80-240 gsm
Raw Material: wastepaper
Monthly capacity: 500 ton
fourdriner 500 tons/month

Papiermaschine für Fluting 2800 mm

Used paper machine
Products: High performance fluting paper
Testliner 3 one lay
Wire width: ca 3360 mm
Net width: ca 2800 mm
Production capacity: ca 200 t/day
Grammage range: 90 – 150 GSM
Speed: mechanical 500 m/min, production 450 m/min
Paper machine efficiency 94 %
Predrying section installed: ca. 1990.
Postdrying section installed : 1960 ies, with replacements more recently.
Power requirement: Ca 4 MW for paper line
- No basement is required for installation. The entire paper machine is at level 0


Consisting of following main components:
Approach flow system 3 HD cleaner Black Clawson
3 Pressure screens Black Clawson / Ahlstrom
Fan pump / Stock pumps Made by Scanpump
In stainless steel
Headbox: Year ca 1990
Made by Allimand with
Cross flow distributor
22 spindle adjustments
Wire section: Made in stainless steel
Press section 1. Press
2. Press
Drying section Drying cylinders with 10 bar, casted by SAFEM /France
Size press
After dryer section
Hood Supplies by Bellmer
www.paptec.com ID: 5635 3/4
Measurex scanner Year 2002
Turn up System: Made by IBS Type RCS 3001
Pope reeler ca 5 units Tambours
Overhead crane
Vacuum system Hibon vacuum pumps
2 x size 140
2 x size 50
Size press kitchen
Rewinder Made by A Celli
Bale width 3100 mm
Refurbished ca 2015 by Thiry Belgium
Speed ca 1500 m/min
Steam and condensate
system: Continuously updated
Starch preparation
Hydraulic unit
Continuously updated controls
Lot of spare parts, for every press roll min 1 spare roll included
Big assortment of felts
Control system: The currently installed control system is connect-ed with the still running part of the mill and not available.
Stock preparation: The stock preparation is not available. Currently we can provide a stock preparation line from an-other location.

European Fourdriner 2800 mm net width 200 t/day

Kraftliner Karton Papiermaschine 2950 mm

 Kraftliner paper machine 2950 mm

Basis Weight: 170 g/m² - 500 g/m²

Machine speed: 120 m/min (200 g/m²)

Paper Width: 2,950 mm

Capacity: 100 tpd



2950 mm 100 tpd

Papiermaschine Test Liner, Corrugated Medium

Test Liner and Corrugated Medium Paper machine

Basis Weight             : 90 200 g/

Paper Width              : 1). 3,850 mm at Winder Trim

Working Speed          : 450 m/min with 175 g/.

 Production Capacity : 436MT/Day on 100% Efficiency bases on 175 g/

Fourdrinier 3850 mm at winder 436 tpd
