Eindicker / Entwässerung / Washer

Hauptbild Name Hersteller Typ Größe Kapazität

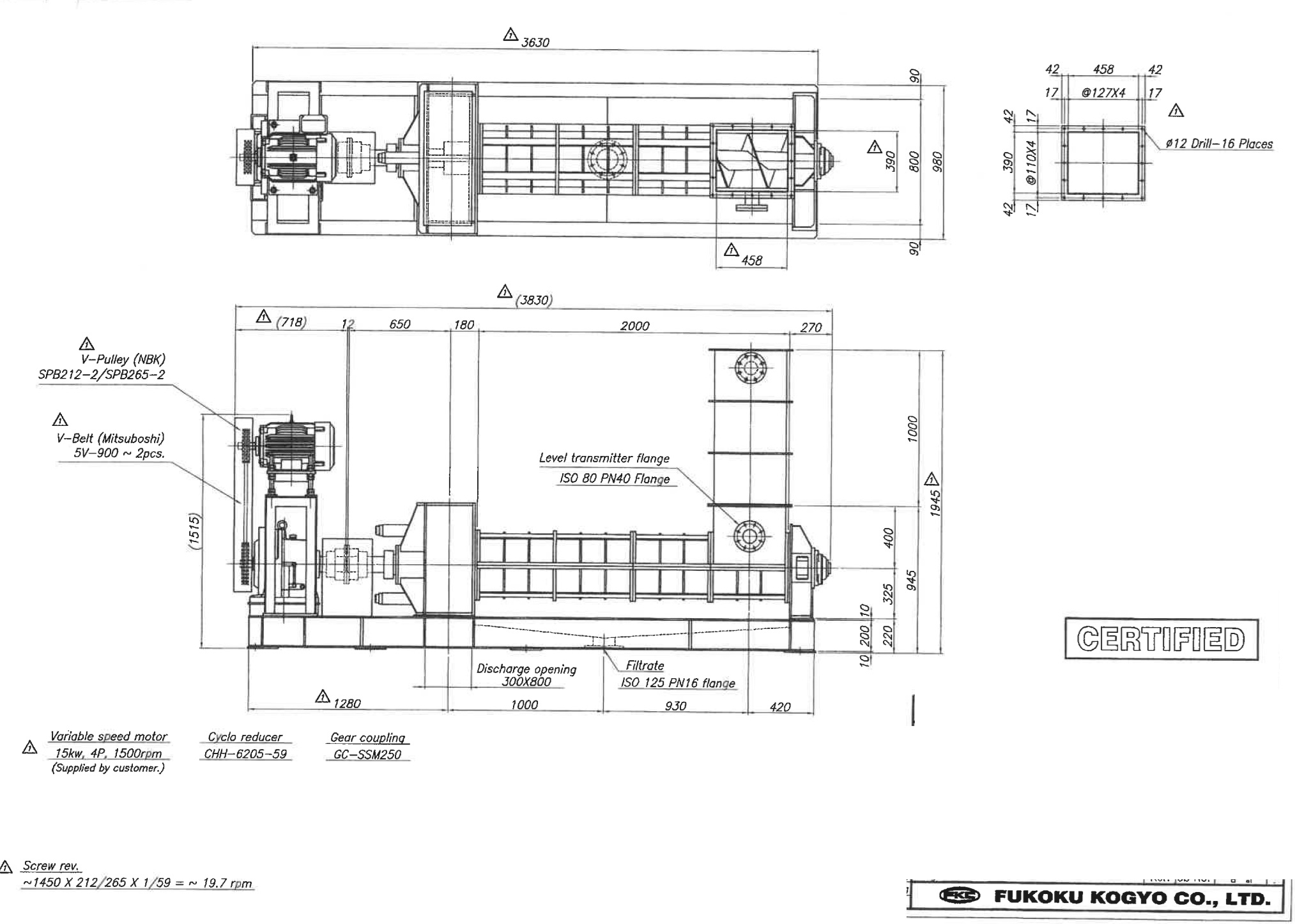

Schneckenpresse für Zellstoff

Schneckenpresse für Zellstoff vom Hersteller Fukoku Kogyo / Japan

FKC / Fukoku Kogyo SHX - 350 x 2,00 350 mm Scrrew diameter 18 t/ 24h

Twin roll Waschpresse Metso TRPB - 924 L

Second hand wash press made by Metso consisting of:

Press

Manufacturer: Metso

Type: Twin roll press TRPB - 924 L

Hydraulic system:

Manufacturer: Metso

Type: TRPH-SPUC

Hydraulic unit:

Manufacturer: Hägglunds

Type: C009 0402

Screw press:

Manufacturer: Fukoku Kogyo

Type: FKC / SHX-350 x 2000L

Screw conveyor:

Manufacturer: Metso

Type: RKBD 5557



Metso Twin Roll wash Press

Wet Lap machine 400 t/day

Wet Lap machine

Manufacturer: Maruishi- Andritz

Maximum product width: 3600mm

Line speed: 15m/min~40m/min

Pulp sheet size: 1180mm x 3 pieces x 800mmL

Pallet: W1200 x L850mm x H140mm

Production capacity: 400ADT/D



- Twin wire press

- Heavy duty press

- Cutter/ Forwarder (Layboy)



This extremely low-powered Twin Wire Machine produces pulp sheets between 2 endless wires without using vacuum.

It has outlet consistency up to 50%. Equipped with uniquely designed pulp cutters and auto baling line.

The Twin Wire Machine can be used for both wet and dry pulp sheet production. In addition, Maruishi originally designed cutters for wet & dry pulp sheets are also available.

Andritz Wet Lap machine 3600 mm 400 t/day

Zellstoffentwässerung- und Trocknungsmaschine

Pulp dewatering machine consisting of:

Dewatering section

pulp air dryer - Gas

Sheet cutter

Palletizer



European / German Pulp dewatering with drying section 1500 mm

Schneckenpresse für Zellstoff Thune SP 23

- Kvaerner Eureka, type Thune SP-23

- Refurbished 2021

- ABB Motor M2AA 180 L6, 15 kW

- Support structure with platform

- Length 4 m, width 2.5 m, height 4m

- Floor grating

- Handrails

- Ladder

Thune SP 23

Wet lap Maschine Andritz 800 mm mit Querschneider und Palletierer

Gebrauchte Zellstoffentwässerungspresse mit Querschneider und Palletierer

Hersteller der Siebbandpresse: Andritz

Zustand der Maschinen: Überholt
Kapazität: 30 tato
Antrieb:  2 x 7,5 kW power motor
Arbeitsbreite:  800 mm
Einlaufkonsistenz:   4 - 4,5%
Auslaufkonsistenz: 43-45%
NIP’s :    1. NIP – 50   N/mm,
     2. NIP – 100 N/mm
     3. NIP – 150 N/mm
     4. NIP – 250N/mm

Andritz ANDRITZ DSP 800 mm 800 mm 30 t/day

Doppelsiebpress Andritz 2m

Doppelsiebpress 2,0m AB von Andritz

Andritz Double wire press 2000 mm

Segmente für Scheibenfilter Hedemora 3,6 m diameter

80 Stück gebrauchte Segmente für Scheibenfilter Hedemora  3,6 m Scheibendurchmesser

Hedemora 3,6 m diameter

Zellstoffschneckenpresse von Andritz SCP755LM

Diam: 755 mm

With gear box ratio 35,5 and AC motor excluded

Andritz SCP755LM 250 TPD

Schneckeneindicker ansteigend Lamort

Inlet consistency:

min: 1,2 %

Optimal: 4 %

Max: 7 %

Outlet consistency:

Min:

Optimal: 12 %

Max: 20 % and more depending of pulp

Lamort Ascending screw thickener M16
