Verkaufsliste

Hauptbild Name Hersteller Typ Größe Kapazität
1 verfügbar

Querschneider marquipward united, 1650 mm

Standort: Süd ost Asien

Technical Parameter Metric (Product Detail) Imperial (Options)
Sheet Width (max.) 1650 mm 65"
Reel Width (optional) 1700 mm 67"
Reel Diameter (max.) 1850 mm 73"
Reel Weight (max.) 3410 kg 7500 lbs
Core Diameter (min./max.) 70 mm 3"
Speed (max.) 335 m/min 1100 ft/min
Length Accuracy (Single Web) ±0.38 mm ±0.015"
Length Accuracy (Multi Web) ±0.76 mm ±0.030"
Knife Capacity 1000 gsm —
Slitter Capacity 600 gsm —
Sheet Length (min./max.) 400 mm – 1650 mm 15.75" – 65"



Key Features:

  • Dual-Rotary Knife System with tangentially mounted blades for clean, consistent cuts

  • Vacuum Knife Trim System for dust-free precision

  • 460 mm Knife Lift Stroke for high-speed sheet orders

  • PC-Based Control System with menu storage and remote diagnostics

  • Liquid-Cooled Motor & Drives for reduced noise and energy efficiency

Technical Highlights:

  • Max Sheet Width: 1650 mm (65")

  • Reel Diameter: Up to 1850 mm (73")

  • Reel Weight: Up to 3410 kg (7500 lbs)

  • Length Accuracy: ±0.38 mm (Single Web), ±0.76 mm (Multi Web)

  • Material Capacity: Knife – 1000 gsm, Slitter – 600 gsm

Optional Upgrades:

  • Automatic Decurling Rollers

  • Web Cleaning System

  • Splice-to-Splice Detection

  • Automatic Pallet Change

  • Advanced Programming Option

 Marquipward united — 1650mm 335 m/min
1 verfügbar

Used GENCO flexo printer for sale

High-Performance Flexo Line – Proven Reliability, Exceptional Value

This configuration delivers consistent performance, precision, and durability—ideal for high-volume corrugated packaging operations.

 Equipment Configuration:

  • Prefeeder: CMF Ferrari (circa 1979) – Built to last, ensures smooth sheet flow

  • Feeder & Printer: Genco system with 4 mechanical transfer printers (1979) – Reliable print quality with proven mechanics

  • Stacker: Delta Stack Emba (circa 2006) – Efficient stacking with modern controls

Sheet Capacity:

  • Max Sheet Size: 1270 × 2000 mm

  • Min Sheet Size: 600 × 625 mm

  • Versatile range for various box formats and production needs

Print & Roll Specs:

  • Anilox Roll:

    • Volume: 11 cm³

    • Line Count: 100 LPI

    • Angle: 60° – Optimized for consistent ink transfer

  • Ceramic Roll:

    • Genco Ward Ceramique Apex L2150

    • Size: 66 × 88 cm – Durable and precise for long-run jobs

Benefits:

  • Proven components with decades of operational success

  • Ideal for mid- to high-volume production

  • Cost-effective upgrade for expanding capacity or replacing aging systems

 Genco — — —
1 verfügbar

Tissue paper production line 60 t/day with stock prep. and rewinder

Manufacturer: Mitsubishi-Beloit
Type: Crescent Former (2 layer headbox)
Yankee Dryer Diameter: 4,57 m
Paper width on reel: 2400mm
Production speed: up to 1800m/min
Grammage: 13 to 24gsm
Drying capacity: 60 tpd
Raw material: Virgin pulp
Drive voltage: 440V, 60Hz
Machine drive: ABB/ACS 880
DCS: ABB
Key products: Toilet tissue, Facial tissue

+

Stock preparation for virgin pulp
Rewinder with 3 unwind stands







 Mitsubishi Beloit — 2400 mm 60 t/day
1 verfügbar

Tissue paper production line 60 t/day with stock prep. and rewinder

location: Asia

Manufacturer: Sulzer Escher Wyss (Germany)

Type: Tisco Former

Yankee Dryer Diameter: 4,7 m

Paper width on reel: 2400mm

Production speed: up to 1500m/min

Grammage: 13 to 45gsm

Drying capacity: 60 tpd

Raw material: Virgin pulp

Drive voltage: 440V, 60Hz

DCS: Metso

Key products: Toilet tissue, Facial tissue, Kitchen towel, Napkin, Handkerchief paper

+

Stock preparation for virgin pulp

Rewinder with 2 unwind stands



 Escher Wyss — 2400 mm 60 t/day
1 verfügbar

Turboseparator Voith ATS 20 überholt

Gebrauchter Turboseparator mit Basaltauskleidung in überholtem Zustand:

Lieferumfang: Gehäuse mit Tür und Siebkanal mit Basaltauskleidung, Welle, Rotor





 Voith ATS 20 20 max. 190 t/day
—

Vakuumpumpe Cutes CVP130 M

Capacity: 230 -374 m³/min

Speed: 200 - 327 RPM

Weight:  10,5 tons

 Cutes CVP 130 M — 230 - 374 m³ /min
—

Vakuumpumpe Nash 904 P2

 Nash 904 P2 — —
—

Vakuumpumpe Nash 904 R1

 Nash 904 R1 — —
—

Vakuumpumpe Nash 904 P1

 Nash 904 P1 — —
1 verfügbar

Querschneider Pemco SHM 1650 Twin Knife

Unwind stands:           4

Web width:                       min        400 mm

Web width max                               max       1700 mm

Sheet length                     min        400 mm

Sheet length                     max       2100 mm

Sheet length                     standard  1650 mm

Pile height:                        max       1700 mm

Ream heigt                        max       127 mm

Pile weight:                       max       3500 kg

Speed                                  max       350 m/min

Knife load:                                         700 GSM

Pemco SHM 1650 1700 mm 350 m/min
1 verfügbar

Dickstoffreiniger Voith IDH 300-65

Dickstoffreiniger mit Schmutzschleuse



  • High-efficiency removal of heavy contaminants (e.g., sand, staples, paper clips)

  • Low fiber loss due to optimized flow design

  • Modular construction for easy maintenance and scalability

  • Operating pressure range: Often between 2–4 bar depending on model

  • Flow capacity: IDH 300-65 handles medium to high flow rates

 voith HD Cleaner / Centricleaner — 1500-2800 l/min
4 verfügbar

Ventilatoren von Fa. Scheuch, nahezu unbenützt

  1 2 3 4 units
Type vre 90 0900 fb 14 vre 90 1000 fb 13 vmb 20 0224 hd 29 vmb 20 0224 hd29
Bauform gr360-r gl270 gr 360 gr 360
Baaujahr 2020 2020 2020 2020
Nmax. 1520 1400 3000 3000 min-1
V 46000 60000 5400 5400 m3/h
R 2404 2503 14623 14623 Pa
T 21 21 21 21 °C
p 1,818 1181 1181 1181 Kg/m3
n 1400 1315 2500 2500 min-1
E 39,6 53,6 30,3 30,3 kW









 Scheuch — — 4600-6000 m3/h
2 verfügbar

Druckluftompressor Blitz Monsum 22

Motorleistung: 22KW

Anschluß Drehstrom: 400V

Höchstdruck: 10 bar

3,43 m³/min bei 7,5 bar
3,02 m³/min bei 10 bar
2,54 m³/min bei 13 bar

 Blitz Monsum 22 — 3,43 m³/min 7,5 bar
1 verfügbar

Pizzolato corrugated board sheet cutter 250cm

  • Model: Pizzolato cutting line
  • Working width: 250 cm
  • Line connection: Previously in operation with a Peters corrugator
  • Operation: Manual pallet feed with automatic transfer
  • Stacker: Equipped with one stacker capable of cutting up to 3 sheets simultaneously
  • Stacking system: Vibrating plates (side and rear) for neat stacking on pallets
  • Automation: Automatic outfeed (see attached photos) and automatic waste flap
  • Condition: Well maintained; essential spare parts still in stock
  • Control system: Siemens S7
 Pizzolato Corrugated board cutter 250 cm —
1 verfügbar

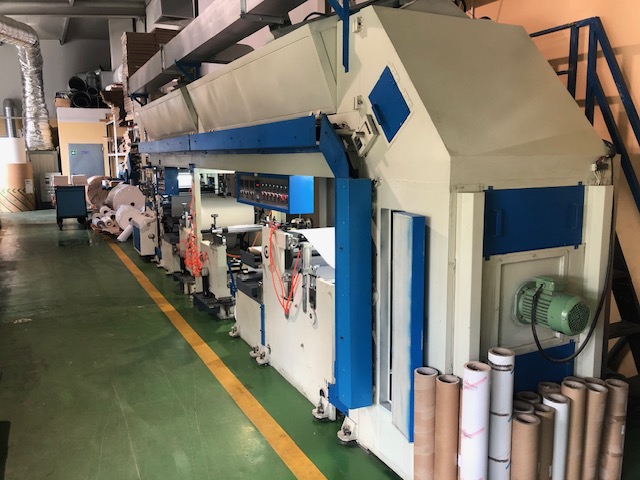

Coater machine 2,6 m with electrical dryer

Compact machine with shaft unwind- and rewind station for applying substances to cardboard and paper. With electrically operated dryer. The machine was completely rebuilt in 2014.

max width: 2,6m

Speed max 150 m/min









 German Coater machine 2,6 m up to 150 m/min
—

Tissue paper machine with approach flow system

Used tissue paper machine, production capacity max 80 t/day, with approach flow system

 European — ca 2,7 m ca 80 t/day
1 verfügbar

Dekanter Alfa Laval AVNX 4030

Bowl diameter, int.: 353 / 202 mm

Max. solids density: 1,2 kg/dm³

Max bowl speed: 4000 rpm

 Alfa laval AVNX 4030 — —
1 verfügbar

Öltank 100.000 Liter Volumen

 — — 100.000 Liter Volumen —
1 verfügbar

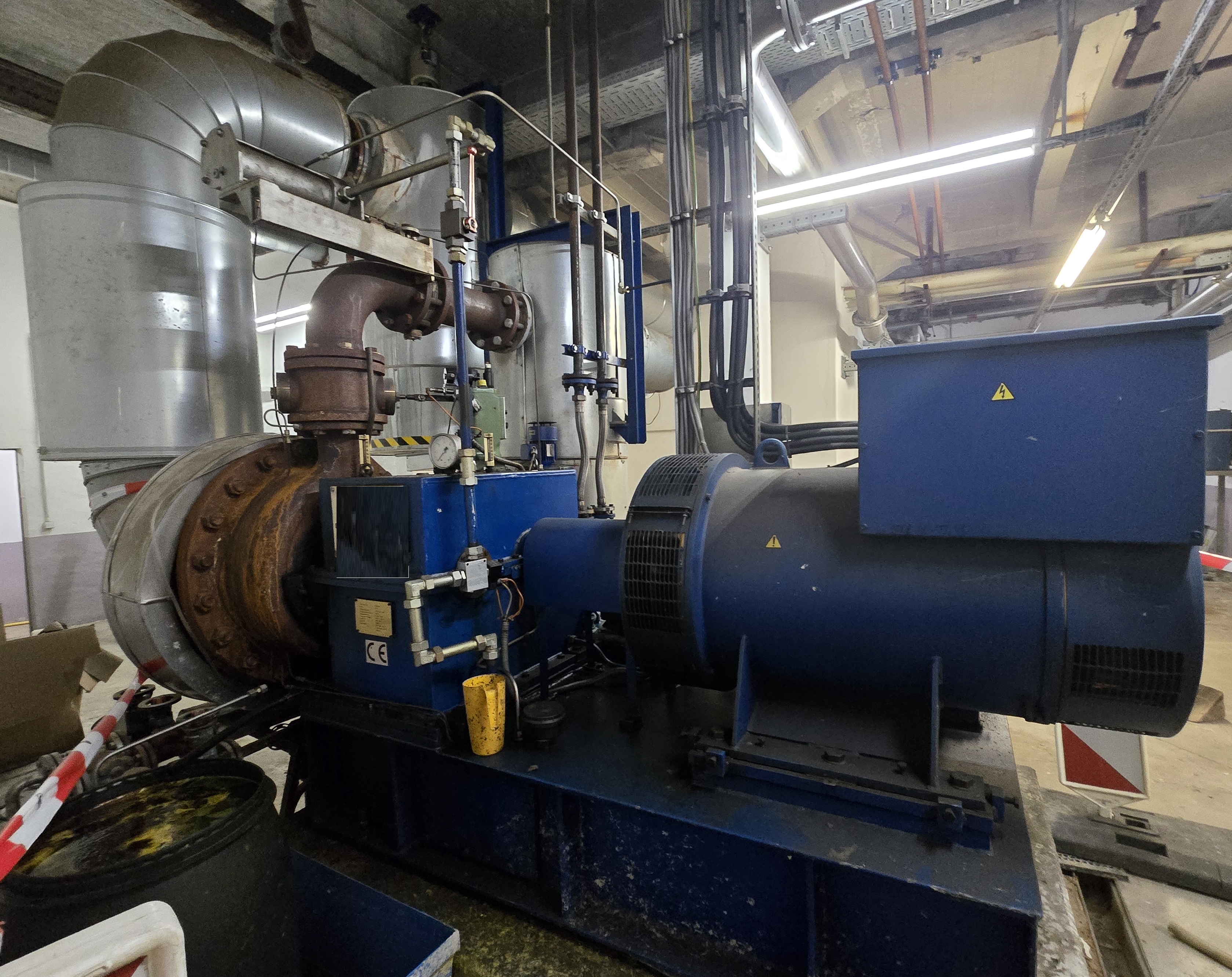

Dampfturbine 265 KW

Kleine Dampfturbine

Zudampfdruck: 10,5 bar abs

Zudampftemperatur: 186 °C

Leistung: 265 kW

Abdampfdruck 5 bar abs

Turbinendrehzahl: 6720 U/min



 — — — 265 KW
1 verfügbar

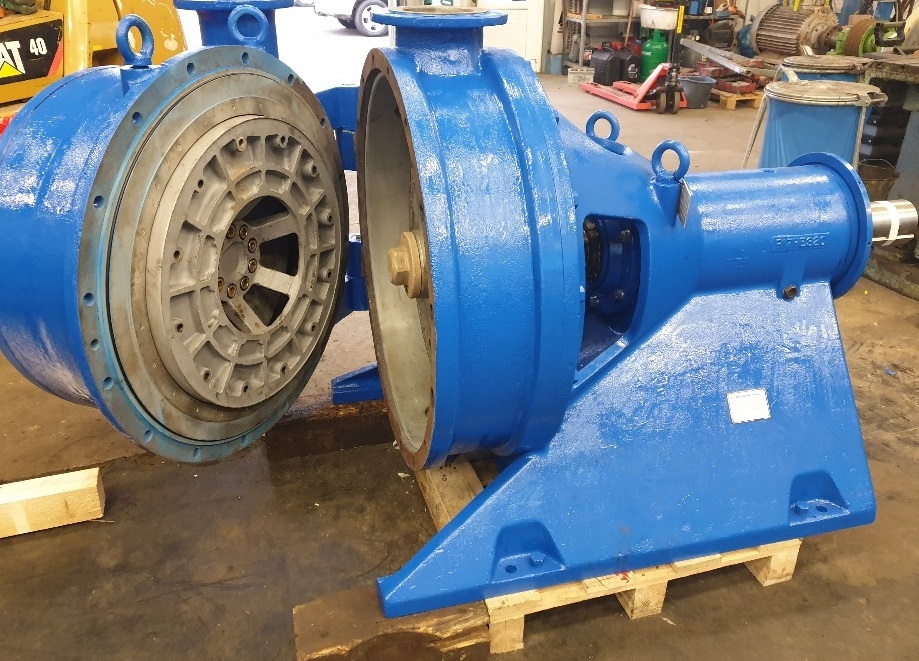

Doppelscheibenrefiner Escher-Wyss DSR 3 HEP

Max power: 700 KW

Capacity range: 780 - 5000 l/min depending of installation and stock consitency

 Escher Wyss DSR 3 HEP 3 780 - 5000 l/min
1 verfügbar

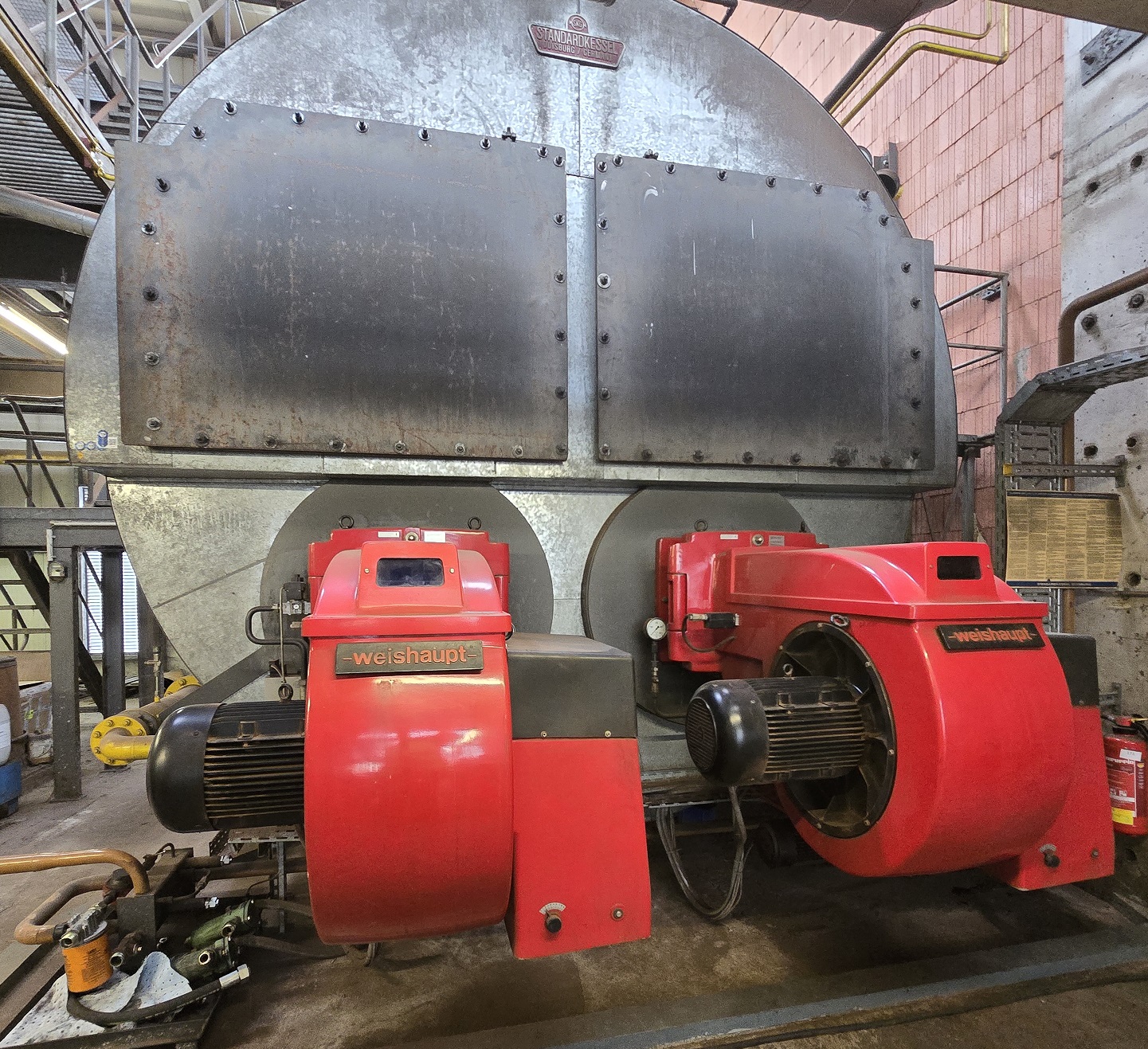

Dampfkessel Gas - Öl 20 t/h - 10 bar

 Standardkessel Öl -Gas — 20 t/h steam / 10 bar
1 verfügbar

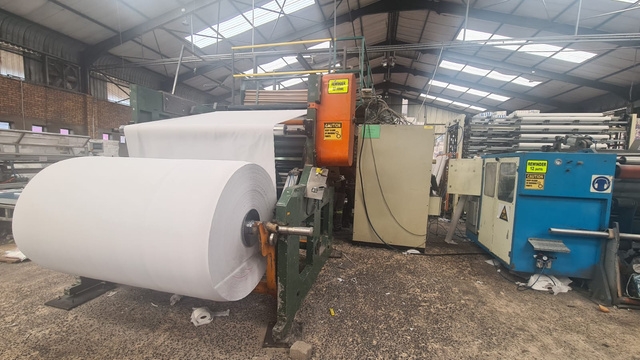

Several Tissue Paper Converting Machines

Lyish Rewinder

Quantity: 2

Make: LSR2800 Lyish rewinders

Semi-auto rewinders

350 m/pm on high speed

2650 deckle parent reels

Up to 1200 diameter jumbo rolls

Well maintained and in good working condition

Wrapper

Quantity: 1

Fully Automatic

Plastic single roll wrapper

Max speed: 140 wraps per minute

Small and compact

PLC incorporated

Excellent and very reliable

Low on maintenance

Well maintained and in good working condition

Baler machine

Quantity: 1

Can bale up to 1 ton

7.5kw

400v

1440 RPM

Well maintained and in good working condition

Zode Bundler

Quantity: 1

Make: ESS TEE United

Packaging bundler

Configuration Packages: 24’s, 18’s and 48’s

30 minute product change over

24 packs per minute

Fully Automatic

Well maintained and in good working condition

Perini 348 Rewinder

Quantity: 2

Make: Fabio Perini

Fully Automatic

Well maintained and in good working condition

Accumulator

Make: Baosuo

Quantity: 1

110 buckets

2700 width

PLC incorporated

Auto-loading and unloading

Used for 54 hours from beginning

Well maintained and in good working condition

Intelligent Conveyor System

Quantity: 1

Make: Imako

Includes 1 x 3-to-2 diverter, 1 x 90° bend conveyor,

1 x +/- 12m manual conveyor

All well maintained and in good working condition

Alberto Consani Rewinder

Quantity: 1

Fully automatic Italian rewinder

2700 deckle

1400 diameter parent reel intake

500m/pm

Electronic functions hmi

Well maintained and in good working condition

MSB Packaging Machine

Quantity: 1

Make: Kavafakis

Automatic packaging on 4’s, 8’s and 10’s configuration.

25 packs per minute

12 minute change over

Made in Greece

2 lane 160 max cuts per minute

2800 pusher length

PLC incorporated

Low on maintenance

Well maintained and in good working condition

3 Ply Core Rewinder

Quantity: 1

7psi pressure

22 cores per min

3-lane fully sevo operated

160 maximum cuts per minute

100 to 110 diameter

Length up to 300 maximum

Fully Automated

Well maintained and in good working condition

45kW Air Compressor

Make: Bouwa

Model: RS-45

Quantity: 1

Well maintained and in good working condition

Includes dryer

75kW Air Compressor

Make: SCC

Model: Focus 75

Quantity: 1

Well maintained and in good working condition

Includes dryer

— — — —
1 verfügbar

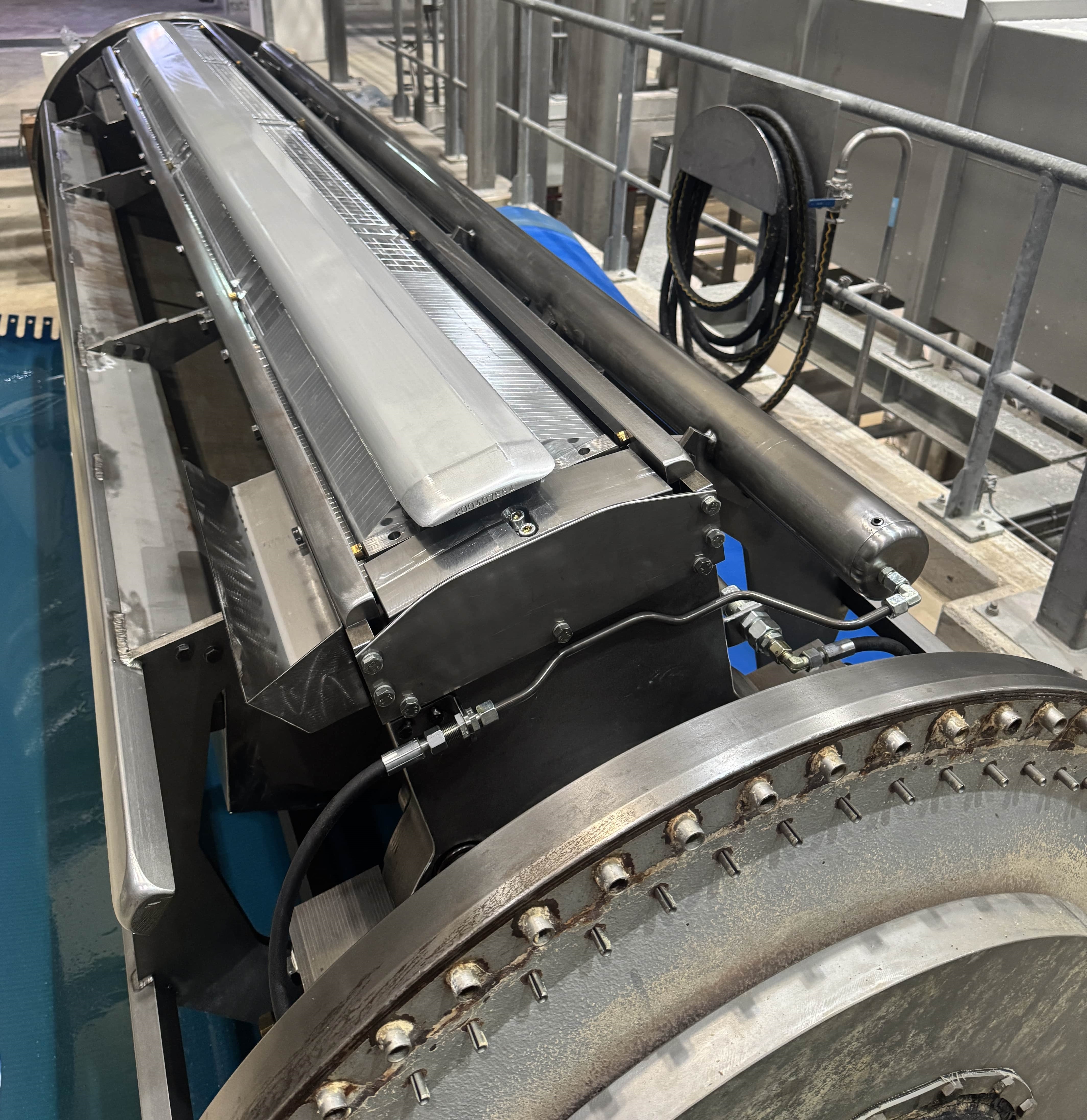

Schuhpresse Voith 2810 mm

Liniendruck: 70 – 130 kN/m

Walzendurchmesser: 1100 mm

Bahnlänge: 2810 mm

Geschwindigkeit: 2200 m/min (max.)

Neigungwinkel: 1 bis 5

 Voith Shoe press 2810 mm 2200 m/min
1 verfügbar

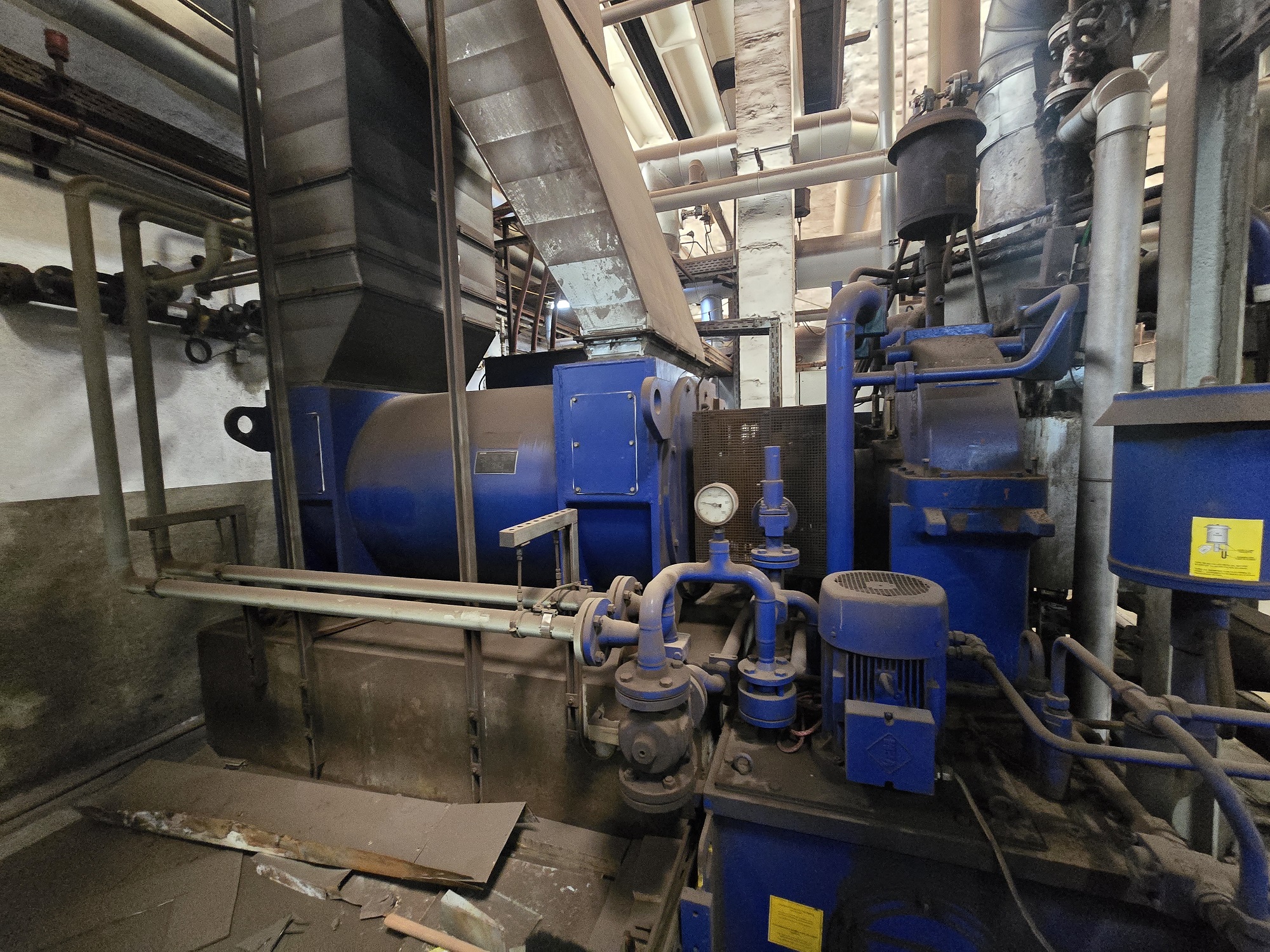

Coal dust steam boiler house with 1 MW Turbine

Coal dust steam boiler plant with turbine.

Consisting of among other related installations of the following main components

- 2 Coal dust storage tanks

- Coal dust steam boiler, capacity 14,5 t/h steam 22 bar

- Steam Turbine 1MW / 1325 KvA / 50 Hz /

- Ash handling system

- Control system





 — Coal dust steam boiler — 14,5 t/h steam 22,5 bar
1 verfügbar

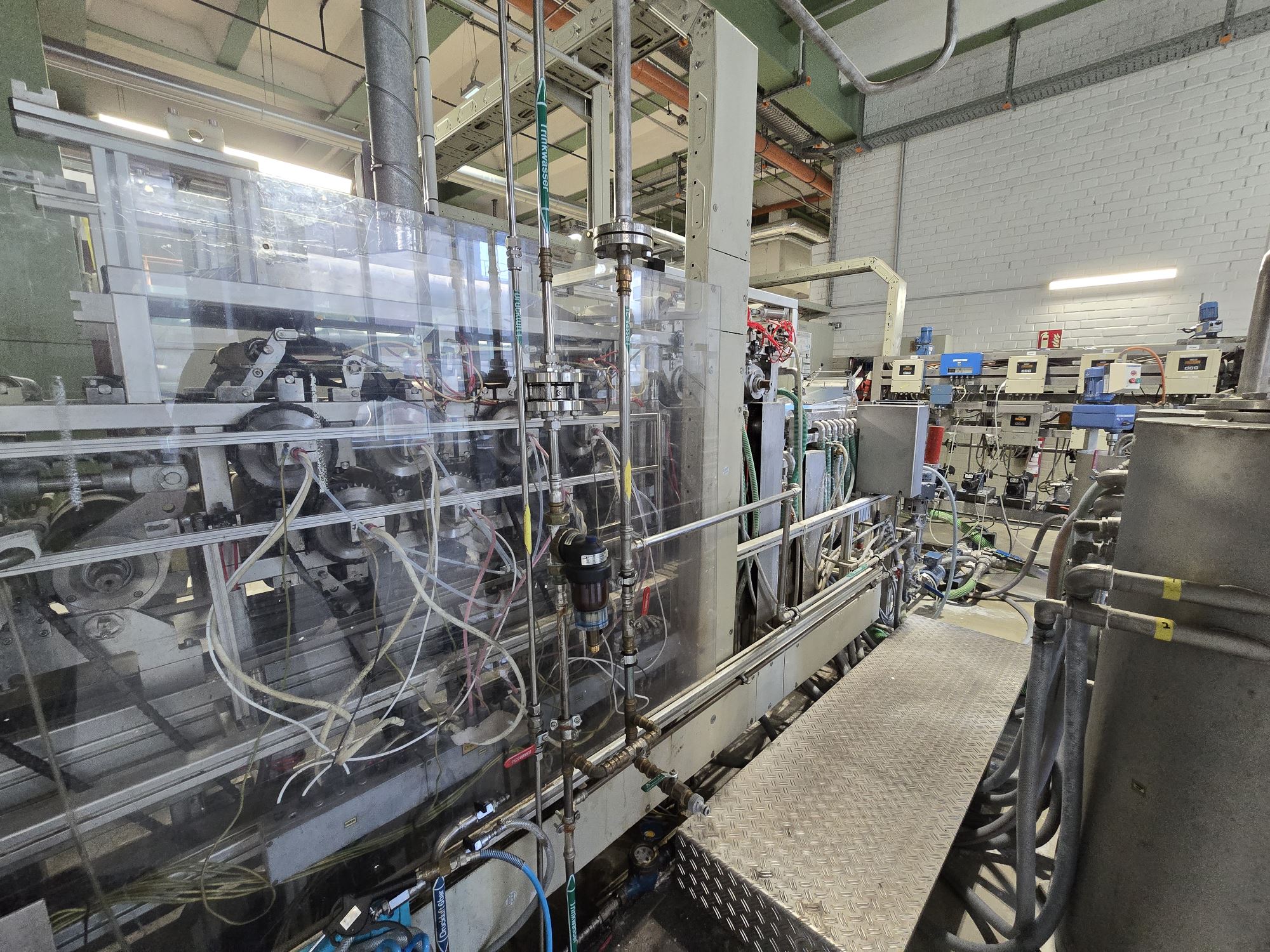

Laborpapiermaschine mit dazugehörigen Installationen

Speed:                                             2.35 m/min

Grammage range:                           45-180 g/m

Dimensions:                                     310 x 182 x 130 cm

Fourdrinier PM

2 Nip press section

4 drying groups with a total of 14 electrically heated drying cylinders



Process guide system. Control of:

  • Machine speed (10 drive groups)
  • Pulp and water quantities (hc pulp, felt water, headbox)
  • Additive dosing
  • Drying cylinder temperatures



Included components

2 x 400 l stock tanks:

2 x mobile stock tanks 400 l incl. agitator+ Hand gear – stainless steel with associated FU control cabinet

Dimensions tank: 130*180*110

one 400 l vat, stainless steel without gear and without cover



Electrical supply:

FU cabinet: 63*76*35,5

Security: 31*30*15





Mixing container

1 x mixing container – up to 60 l – stainless steel incl. agitator PLS controlled

Dimensions W*H*D: 70*160*70



Screen water tank

1 x screen water tank ~120 l – stainless steel incl. agitator controlled by PLS

Dimensions W*H*D: 70*146*70





Water and LC pumps

5 x Netzsch pump NM031SY/X288135

  • 1 x thick material circuit
  • 1 x screen water pump – IDM controlled
  • 1 x slurryfeed pump – IDM controlled
  • 1 x section water pump – level controlled
  • 1 x spare  / Backup

Dimensions: 108 x 27 x 31



Suction water tank

2 x suction water tank ~200 l – stainless steel

Dimensions W*H*D: 126*151*55



Vacuum system

Vacuum system with water separator

Dimensions W*H*D: 152*155*110



Pre dryer cylinders and post dryer cylinders

Manually switchable

Independent of vacuum system for screen and press dewatering



Dosing rake

  • Stainless steel frame for mounting additive dosing lines, IDMs, thick material pump, level tank, filler tank, connection boxes for stock boxes

Dimensions W*H*D: 245*200*100

  • 4 x additive dosing line

Each with 1 glass container incl. agitator 10 liters+ 1 IDM+ 1 PLS-controlled screw pump regulated

  • 1 x thick liquid pump

PLS-controlled with upstream level tank including agitator, overflow, and MDM Dosing points in pipe to mixing tank



  • 1 x 20 l filler tank including agitator
  • 2 x CCE socket + Kalleiter for 400 l vat
  • 2 x schuko socker



Control cabinets

5 x 1.20m wide, housing for control system. Electrical supply

1 x 0.8 m wide

Dimensions W*H*D: 680*223*60



Laboratory refiner

  • Andritz test refiner 400V – Type: 12-1C

SingleDisk, manually adjustable grinding gap. Includes grinding set and material pumps, control panel and motor

Dimensions W*H*D: 230*155*110



 German manufacturer Fourdriner 310 mm —
1 verfügbar

Paper converting plant with coater rewinder sheet cutter

Set of machines for paper and film coating and processing

 Large coater

Small coater

Rewinder

Elecric mixer

Pallet wrapper

Paper sheeter

Waste paper press







Large coater

Year of manufacture                                   2011

Coating, lamination  (additional lamination unwinder)

Corona treatment

Working width – 1700 mm

Material in rolls

Raw material – paper (50-300 g/m2), film (0.023-0.10 mm)

Substances - solvent glue,water -based soluti on

Coating Type -Mayer bar, Anilox Roller, Slit Roller

Dryer – length 18 m, 7 drying secti ons, temp 30C -170C, gas drying (blower)

Roll Diameter -max 1400 mm

Hot air generator included



Small coater

Year of manufacture 2015.

Coati ng

Working width – 650 mm

Material in rolls

Raw material – paper 950-350g/m2), film

Substances – solvent-based glue, water-based soluti on  Coati ng Type -Mayer bar,Slit Roller

Operati ng speed – 0-80m/mi

Dryer – 8m, 3 secti ons, temp 3C -120C, electric drying

Dimensions – 14m x 1.8m x 1.8m

Roll diameter -max 1000 mm



Rewinder

Year of manufacture 2018

Material - paper ,film

Working width – 1800 mm

Unwinder diameter – 1200 mm

Cutting width  – from 30 mm

Core diameter – 2,3,6 inches

Speed – 0-300m/min

Laser positioning system

Circular knives



Electric mixer for chemical liquids

Year of manufacture 2018

Hydraulic Lifting System

Interchangeable tips

Dimensions 1980mm x 750mm x 1850mm

 Round container for liquid 1000 l ( 2 pcs), container 500 l ( 1 pc)



Automatic Self-propelled pallet wrapping machine

Year of manufacture2018

Italy PKG

Model E-moti on

Height of the wrapped pallet – 2150 mm



Automatic sheeti ng machine   Year of manufacture 2011

Width 1100 mm

Adjustable speed



Waste paper baler – Hydraulic

Flat die cutter

width 1200 mm

Forklift  with paper roll clamp

Toyota

2-ton lift ing troley











 — — — —
1 verfügbar

Cutting maschine Bobst SP 102-CE

Cutting force up to 250T

Hour meter: 54 445h

Sheets cunter: 71 225 006 sheets

Speed: 9 000 sheets/h

Paper format min: 400 x 350 mm

Paper format max.: 1020 x 720 mm

 Bobst SP102-CE — —
—

Speedmaster CD102-6 LX

Second hand speedmaste

6 printing units + unit Varnish + extended output

Printed sheets: 224.000.000

Paper format max: 720 x 1020mm

Paper format min (single-sided print): 280 x 420mm

Grammage paper / cardboaed: low grammage to 1,0mm

Printing speed max: 15.000 sheet/h

Non stop feeder: manual

Non stop delivery: manual

Stack height feeder: 1070 mm

Stack height delivery: 1045 mm

Press elevation: 510mm

Long delivery: yes

Dryer: IST

 Heidelberg CD102-6 LX — —
—

Speedmaster Heidelberg CD 102-2-LX

Second hand speedmaster feeder preset plus Ipex

2 printing units + unit Varnish + extended output

Printed sheets: 130.266.000

Paper format max: 720 x 1020mm

Paper format min (single-sided print): 340 x 480mm

Grammage paper / cardboaed: low grammage to 1,0mm

Printing speed max: 15.000 sheet/h

Printing speed min: 3.000 sheet/h

Non stop feeder: manual

Non stop delivery: manual

Stack height feeder: 1210 mm

Stack height delivery: 1160 mm

Press elevation: 510mm

Long delivery: yes

Dryer: IST

 Heidelberg CD 102-2-LX — —
—

Paper machine 8130mm

GSM: 40-51.8g/m2

Production capacity: 750ton/day

Paper Grade: Newspaper

Total draw: 4.49%

Speed: 1700m/min(Design speed), 1600m/min(Normal speed),

Head box:

Manufacturer: Voith

Pont width: 8850mm

Model: Module J

Wire part:

Manufacturer: Voith

Wire width: 9050mm

Model: Twin wire type ( DUO-CFD)

By CFD former, improved front and back differences To be done

Press part:

Manufacturer: Voith

Model: DUO Centering- 2

1P bottom: shoe press (max. line pressure: 200kN/m)

2P: suction press (max. line pressure: 90kN/m)

3P: shoe press (max. line pressure: 1000kN/m)

By 1P shoe press, dehydration in paper front and back

can be uniforms

Size press:

Type: Gate roll size press

Air turn equipped

Calendar:

Type: 1nip 2 stack, soft calendar, soft roll

Max. line pressure: 200kN/m

Max.heat roll oil temperature: 200

CLP control:

Pre dryer:

Type: all top part single deck type silent drive

6-Group, 1830mm dia. x 30cylinders

CARB bearings are adopted in cylinders

Fixed Syphon and spoiler bar equipped

In all pockets, Blow box Installed

After dryer:

1-Group, 1830mm dia. x 5cylinders

Fixed Syphon and spoiler bar equipped

In all pockets, Blow box Installed

Auxiliary drying device: air dryer (Installed in gate roll size press outlet)

Dryer auxiliary equipment:

Sensor = Non-contact Type + palm type,

automatic guide, positioner actuator=air cylinder

Canvas cleaner:

1~6 groups=air+ high pressure water

7- group= air + steam + high pressure water

Paper cutting device: water jet (pre, after dryer)

Reel part:

Model: TNT-C reel

Reel Maximum diameter: 3200mm

 Voith — 8130mm —
1 verfügbar

Four colour Flexographic Printing Press

Four-color expandable type
Design Speed: Max. 500 m/min

Print Speed: 300 to 400 m/min
Printing type: flexo printing chamber type
Effective width of printing: 2800 mm
Printed Plate Roll Length: 2850 mm

Paper size:

Paper tube

Diameter: 2500φ

Width: 2800mm

Weight: max3000kg

Configuration:

Back stand Shaftless, belt feeder

Main body of printing section center drum system

Take-up device Shaftless

Drive shaft type

Electrical control unit

 Tanaka / Japan TMP-4-1 — —
1 verfügbar

Double drum Winder for Paper and Cardboard KMEC RP-1650

Useful working width: 1650 mm
Min. working width: 520 mm
Max. reel diameter: 1800 mm
Weight of material: 60 to 1000 g/m2
Core reel diameter: 76/152 mm
Max. reel weight: 4.500 kg.

 KMEC RP-1650 — —
1 verfügbar

Vacuum pulper 32 m³

400 KW drive

 German Vacuum pulper 32 m³ —
1 verfügbar

Drucksortierer Moduscreen Ahlstrom/ Andritz F3

The screen include rotor type LR for medium consistency and basket with 0.30/035 mm

s

 Ahlstrom/ Andritz Moduscreen F3 F3 —
1 verfügbar

Schneckenpresse für Zellstoff Thune SP 23

- Kvaerner Eureka, type Thune SP-23

- Refurbished 2021

- ABB Motor M2AA 180 L6, 15 kW

- Support structure with platform

- Length 4 m, width 2.5 m, height 4m

- Floor grating

- Handrails

- Ladder

 Thune SP 23 — —
1 verfügbar

2300 mm Corrugator and 2 Rewinder Jagenberg / Goebel

For sale are a corrugator and 2 units rewinders made by Jagenberg and Goebel

The Corrugator has a width of 2300 mm

The Jagenberg rewinder 2400 mm

The Goebel rewinder 1700 mm width

Location South Africa







 Jagenberg / Goebel — — —
1 verfügbar

Hydrapurge model 33 XVF 1200 - Black Clawson

 Black Clawson/ Kadant Hydrapurge model 33 XVF 1200 — —
—

Complete paper machine

Second hand paper machine, one lay, for fluting paper

Optimal grammage: 140gm-²

Max. Speed (140gm-²): 360 m/min

Headbox: Neyrtec

Press: modernisation 1992



 — Fourdriner ca 2,5 m 167 t/d
1 verfügbar

Verpackungsmaschinen für Tissuerollen

 Cassoli RA/2 civ — —
1 verfügbar

Square Bottom Paper Bag Machine W&H Triumph III

Second Hand Square Bottom Paper Bag Machine

Manufacturer: W&H

Type: Triumph III

The machine can produce 1 or 2 plies bags

Cut off length: 270 - 900 mm

Bag width: 120 - 260 mm

Bottom width: 60 - 150 mm

Paper weight: 50 - 110 gsm

Paper reel diameter: Max. 1100 mm

Printer: Inline printer 4 colours

Photocell: Yes

Speed: 50 pcs/min

 Windmöller & Hölscher Triumph III — —
1 verfügbar

Square Bottom Paper Bag Machine W&H Triumph I

Second Hand Square Bottom Paper Bag Machine

Manufacturer: W&H

Type: Triumph I S1271

Cut off length: 200 - 350 mm

Bag width: 45 - 115 mm

Bottom width: 30 - 75 mm

Paper weight: 60 - 90 gsm

Paper reel diameter: Max. 1100 mm

Printer: In line printer QMS 992, 4 colours, Width: 650 mm

Photocell: Yes

Speed: 120 pcs/min

 Windmöller & Hölscher Triumph I — —
1 verfügbar

Flat & satchel paper bag machine matador 26

Second hand flat & satchel paper bag machine

Manufacturer: W&H

Type: Matador 26

Material: paper

Tube length: 13-48 cm

Bag width: 5,5-26 cm

Fold: 3-11 cm

Speed: 300 pcs/min

 Windmöller & Hölscher Matador 26 — —
1 verfügbar

Tuber for paper sack W&H

Second hand tuber for paper sack

Manufacturer: W&H

Type: AM 1130/65

Overhauling: 2017

Raw material: paper

Layers_ 2-3

Tube: Flush cut

Tube length: 60-128 cm

Tube width: 32-63 cm

printer: 2 colours flexo inline

Equip with: photocell for preprinted material

Speed: 120pcs/min

 Windmöller & Hölscher AM 1130/65 — —
1 verfügbar

Square Bottom Paper Bag Machine W&H Triumph I

Second Hand Square Bottom Paper Bag Machine

Manufacturer: W&H

Type: Triumph I S1271

Cut off length: 120 - 350 mm

Bag width: 50 - 120 mm

Bottom width: 30 - 75 mm

Paper weight: 60 - 90 gsm

Paper reel diameter: Max. 1100 mm

Photocell: Yes

Speed: 160 - 180 pcs/min

 Windmöller & Hölscher Triumph I — —
1 verfügbar

Tissue Paper Machine 3550mm

Manufacturer: Valmet

Type: Twin-wire, Wet crep

Paper width on reel: 3460mm

Production speed: up to 1300m/min

Grammage: 17 to 50gsm

Drying capacity: 100 tpd

Raw material: Virgin pulp / De-inked pulp

Drive voltage: 500V, 50Hz

Machine drive type: DC-500V

Hodd drive type: ABB DC

DCS: Valmet DNA

Key products: Hand towels, system towels and other tissue grades

 Valmet — 3550mm 100 tpd
1 verfügbar

Tissue paper converting line for toilet paper and kitchen rolls

Unwind stands

Max reel diameter 2500mm or 3100mm?

Max width 2200mm

Steel/Steel calender

Rubber/ steel embosser (never used)

Double perforation head (on the top of the winder)

Perini Winder Model 6880

Max speed : 600m/mn

Min log diameter: 120mm

Max log diameter: 400mm

Max log/mn : 12

Core diameter : 30 to 80mm

Tail sealer

Log accumulator

United Converting log saw

Min diameter: 100 mm

Max diameter: 350mm

Max density: 260kg/m3

Max speed: 120 cut/mn

Max log length : 3600mm

Core reformer

Hugo Beck Single roll packaging machine (Servo X) and retraction tunnel

PO poly (polyolefin)

Width 25 to 450mm

Height: 200mm

Length: 80 to infinite

Roll bundler

PE poly

Width: 120 to 800mm

Height: 2 to 250mm

Length: 80 to infinite

Output 13 bag/mn on 6 rolls bundle

Check Weigher





Concerning format there was

6x1 roll 200mm diameter

6x1 roll 150mm diameter

9x1 roll 130mm diameter

12x1 roll 135mm diameter

 Fabio Perini / UC / Hugo Beck Toilet paper / kitchen rolls — —
1 verfügbar

Complete tissue converting and packaging line

Tissue converting and packaging line, still in production.

Available from January 2026.

It has been well maintained throughout its lifecycle and includes targeted upgrades to key components.

The system includes all process steps from unwinding to palletizing, offering a highly compact rewinder layout, two bundlers (one from 2017), and two palletizers. A wide range of conveyor units and spare parts are included. The embossing system allows for easy roll changes and supports high product flexibility.

Complete converting and packaging solution for kitchen towel and bath tissue
Compact Perini rewinder with high-quality embossing and easy roll changes
Wrapper (Casmatic T100) and two bundlers (TMC Cinque from 2017 and Cassoli IN3)
Two Langhammer palletizers (dual and single infeed configurations)
Modular conveyor systems and pack handling units (up-enders, elevators, 90° turns)
High-performance Octopus pallet wrapper (40 pallets per hour)
Modernizations include new electrical cabinets, motors, and other features
Extensive spare parts package included

 Perini Tissue converting line for kitchen rolls — —
—

Wuchtschüttler Voith 1000 SCH

Wuchtschüttler Voith 1000 SCH

 — 1000 SCH 1,5 m² —
1 verfügbar

Flexodruckmaschine Bobst Flexo 200

·Einschubtyp: Vakuumbogenanleger mit pneumatischem Anpresser

·Rasterwalzen: alle gebraucht, Keramik

  • Druckwerk 1-4: 160 Linien/cm, Schöpfvolumen: 8,5 cm3/m2 maximal
  • Druckwerk 5: 100 Linien/cm, Schöpfvolumen: 10,5 cm3/m2 maximal

·Rakelsystem: Keramikrasterwalzen mit Metallrakel

·Vakuumbogentransport: Ja, 2007 Vakuumtransport (modifizierte  Edelstahlsaugplatte)

·Aufrüstung:

  • Bogenreinigung und Warmlufttrockner jeweils Typ 2 200 von DUO-TECHNIK
  • Dampfdruckreduzierstation von Helmut Herbert GmbH
 Bobst Flexo 200 — —
1 verfügbar

Vibrierendes Beschickungsband

 Carrier Europe — — —
1 verfügbar

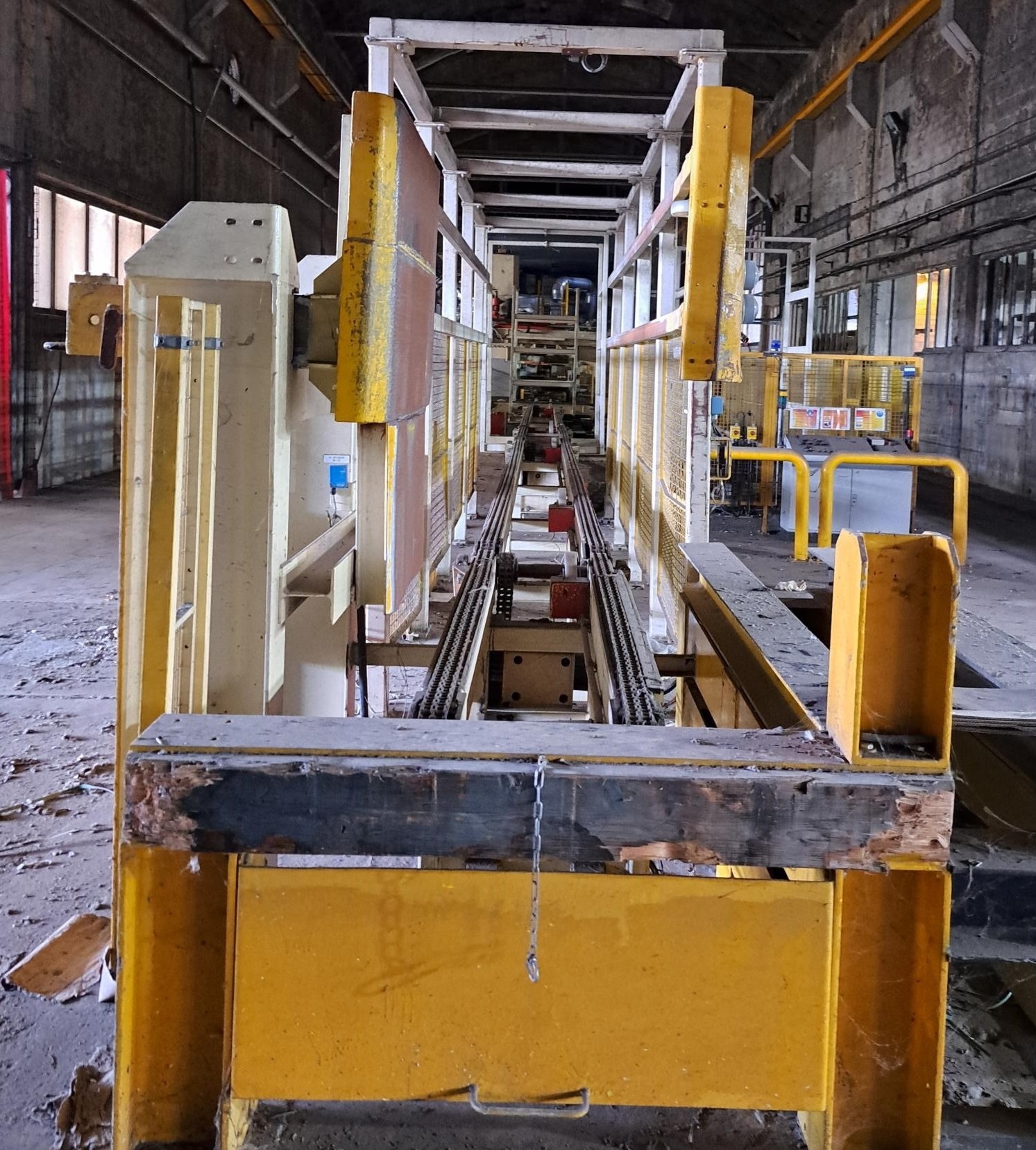

Pulp bale handling / feeding system for pulper

Pulp Bale handling / feeding system for pulper

Capacity: 150 bales / hour (weight 250 Kg)

2 stack-pulp units: 2 bales horizontal, 4 bales vertical

Moisture: 3-10%

Stacks:

Size: w:700-1000mm, h: 1200-2100mm, l: 1200-1800mm

Weight: max. 2000 kg

Single bales:

Size: w:700-1000mm, h: 400-550mm, l: 600-900mm

Weight: min.200kg - approx. 250 kg



 — — — —
1 verfügbar

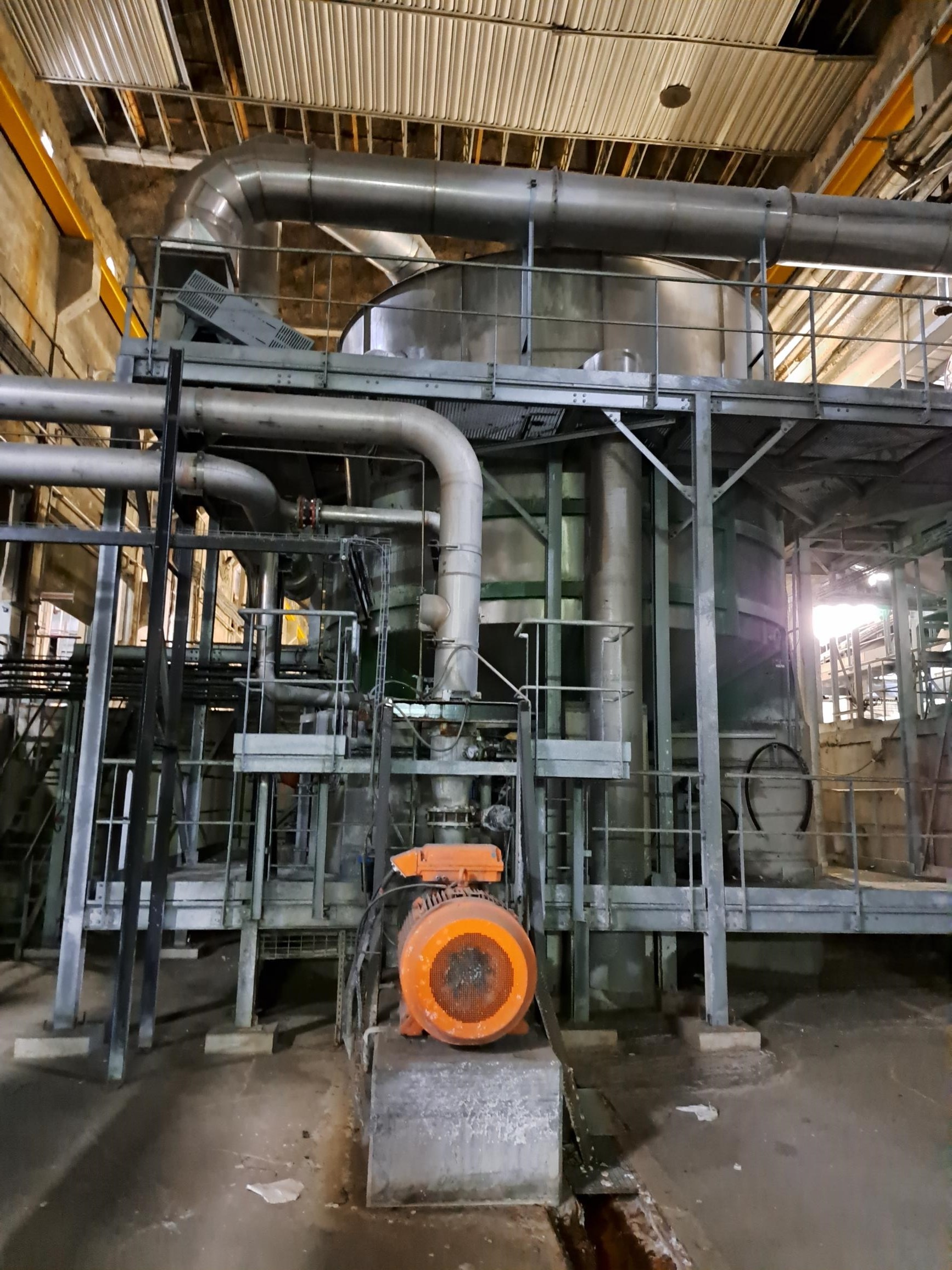

Hydrapulper Kadant 57 m³

Pulping plant made by Kadant with feeding belts

Working volume: 57 m³   Gross volume ca 65 m³



 Kadant / Lamort Hydrapulper 57 m³ working volume —
1 verfügbar

Elektromotor Siemens 1200 KW / 50 HZ/ 1489 Rpm

Second hand siemens motors:

- 2 pcs 1LA4526HE90Z

          1000tr/min

          550 kW

          5500 VAC

- 5 pcs 1LA15044HE60Z

          5500 V

          50 Hz



 Siemens 1200 KW / 50 HZ/ 1489 Rpm 1200 KW / 50 HZ/ 1489 Rpm —
—

Niedrigkonsitenzpulper 100 m³ mit Zuführband

 — Low consitency Pulper ca 100 m³ —
1 verfügbar

Valmet Optifiner RF 1 mit Antriebsmotor

 Valmet Optifiner RF 1 5 - 150 t/day
1 verfügbar

Sortierer Lamort SP 300

Used pressure screen Lamort SP 300

Output: 2600 l/min

Production: 10 - 12 t/day

Power requirement: 4 Kw

 Lamort SP 300 — 2600 l/min
—

Used Yankee dryer, MG cylinder for paper machine

 European — 4200mm x 2250 mm net width —
1 verfügbar

Centac-Compressor Ingersollrand

Flow rate: 40.8 m3/min

Suction pressure: 0.98 bar

Maximum pressure: 8 bar

Intake air temperature: 35°

Humidity: 60%

Water temperature: 25°

Water flow rate: 326 l/min

Engine speed: 2975 rpm

Engine power: 270 kW

Weight: 4295 kg

 Ingersollrand C40MX2 — —
1 verfügbar

2 colour offset press Heidelberg QM 46-2

2-colour offset press

Maximum sheet size: 34 x 46 cm

 Heidelberg QM 46-2 — —
1 verfügbar

Printing machine Heidelberg GTO ZP 52

77 M revolutions

Maximum sheet size: 36 x 52 cm

AQUATRON dampening in 1995

16 optional numbering machines (up, down, vertical, horizontal: 4 of each)

 Heidelberg GTO ZP 52 — —
1 verfügbar

Honsel Konfektioniermaschine für Papierbeutel

•    Wickelverschluss einseitig
•    Zuführung für Pappflansche für Staubsaugerbeutel
•    Max Arbeitsbreite 500 mm
•    Ablagetisch mit Zählwerk und Vorzug
•    Knicktisch (alternativ zum Ablagetisch verwendbar)



 Honsel Honco 722 — —
1 verfügbar

Pressure screen Valmet TLA 50 V

22 Kw  / 1500 RPM

Hole screen basket













 Valmet TLA50V — 6000 - 9000 l/minute
—

Hydraulic Headbox 3229 mm

Stock cons.: 0,35 - 0,8 %

Retention wire: ca 82%

Grammage range: 38 - 250 GSM

Wire width: Outlet width: 3229 mm



Dilution water distributor

Number of dilution zones: 95

 German manufacturer — Outlet width: 3.229 mm 20.500 - 36.800 l/min
1 verfügbar

Stoffauflaufpumpe Ahlström ZTT50

 Ahlström ZTT 50 — 700 l/sec / height 27,5 m / 209 KW
1 verfügbar

Vakuumpumpe Nash 804 M2

 Nash 804 M2 — —
1 verfügbar

Palettenverpackungsanlage mit Schrumpfofen

 OMS https://oms-group.com/ — — —
1 verfügbar

Unused Up-Flow Pressure Screen ZSL 42

Unused up-flow pressure screen

Type: ZSL 42   ( China)

Effective screening area: 0,6m²

Inlet consistency: 1.0 - 4.0%

Capacity-slot: 60 - 100 t/d

Inlet pressure: 0.2 - 0.4 Mpa

Motor power: 30kW

 Asian ZSL 42 — —
3 verfügbar

Doppelschiebenrefiner ZDP unbenützt

Manufacturer: Chinese ZDP

Type: 450

Diameter of the plate: 450mm

Product capacity:: 8 - 60t/d

Concentration of imput pulp: 3 - 5%

Pressure of Imput pulp: 0,15 - 0,2mpa

Motor power: 110kW

Included: sets of spare plates

 ZDP 450 — —
—

Selectpurge Black Clawson 4500

Select Purge Black Clawson

Type: 4500





 Black Clawson 4500 — —
1 verfügbar

Kartonquerschneider Pasaban 1700 mm mit Palettenverpackungsanlage

Moderner Kartonquerschneider vom Hersteller Pasaban mit 2 Abrollungen

Grammaturbereich: 200 - 1000 g/m²

Abrollung: Max Durchmesser 2100 mm, min 500 mm

Max Breite: 1650 mm, min: 500 mm

Hülsendurchmesser: 105 - 305 mm

Formatlängen:   max: 1620 mm,  min 600 mm

Mindestblattbreite: 300 mm

 Max Palettenhöhe: 1800 mm (inkl Palette)



Palettenverpackungsanlage

Hersteller: Reker

Parameter:

Paket

Länge min.                                        500 mm -

Länge max.                                        1600 mm

Breite min.                                        500 mm

Breite max                                         1600 mm

Höhe min                                           400 mm

Höhe max:                                        2000 mm

Gewicht min. ca.                             100 kg

Gewicht max.                                   2.500 kg



Palette

Länge analog Paket                        max. 20 mm umlaufend größer

 Breite analog Paket •                   max. 20 mm umlaufend größer •

Höhe                                                    ca. 150 mm

Kufen, min 70 mm breit               Längs und quer zur Transportrichtung •



Leistung

Geliefert für:                                    30 Paletten /h bei 130  μm  Folienstärke

Ausgelegt für                                   60 PalettenJh bei 130 μm Folienstärke



Verpackungsmaterial                    PE-Schrumpffolie

Bodenblatt auf Palette                                Ja, ähnlich Mantel- und Deckfolie

Deckblatt auf Paket                       Ja ähnlich Mantel und Deckfolie

Folienstärke:  Mantel

Deck- und Bodenblatt                  50 —150 μm

Gasart                                                 Erdgas                  80 – 100 mBar

Förderhöhe                                      500 mm 1

Leistungsparameter Palettenverpackungsanlage

Paket

Länge min.                                        500 mm -

Länge max.                                        1600 mm

Breite min.                                        500 mm

Breite max                                         1600 mm

Höhe min                                           400 mm

Höhe max:                                        2000 mm

Gewicht min. ca.                             100 kg

Gewicht max.                                   2.500 kg



Palette

Länge analog Paket                        max. 20 mm umlaufend größer

 Breite analog Paket •                   max. 20 mm umlaufend größer •

Höhe                                                    ca. 150 mm

Kufen, min 70 mm breit               Längs und quer zur Transportrichtung •



Leistung

Geliefert für:                                    30 Paletten /h bei 130  μm  Folienstärke

Ausgelegt für                                   60 PalettenJh bei 130 μm Folienstärke



Verpackungsmaterial                    PE-Schrumpffolie

Bodenblatt auf Palette                                Ja, ähnlich Mantel- und Deckfolie

Deckblatt auf Paket                       Ja ähnlich Mantel und Deckfolie

Folienstärke:  Mantel

Deck- und Bodenblatt                  50 —150 μm

Gasart                                                 Erdgas                  80 – 100 mBar

Förderhöhe                                      500 mm 1



 Pasaban — 1700 mm 300 m/min
1 verfügbar

W+H Flat und Satchel Paper Bag, Block Bottom Machine

WH triumph 3

Flat and satchel paper bag

Block bottom

Last use to produce paper vacuum cleaner dust bag

An additional machine to seal another open end (separately available if needed)

Bottom bags from 12 cm to 24 cm wide

Tube bags until 50 cm long.

 Windmoller & Hölscher Triumph 3 — —
1 verfügbar

Drucksortierer Kadant - Lamort CH5

mit Korb und Rotor (+ 2 Ersatzkörbe)

 Kadant - Lamort CH5 — —
1 verfügbar

Vierfarben-Digital-Tintenstrahldruckmaschine für Wellpappe

Maximale Druckbreite: 1049 mm

Medienbreite: 1180 mm

unbegrenzte Länge

 MTEX NS PKG 675 i — —
1 verfügbar

Pulper 4m³

 — Pulper 4 m³ 4 m³ —
1 verfügbar

Fibersorter FS2-B Escher Wyss

 Escher-Wyss FS 2-B — —
3 verfügbar

Cleaner CLP370 von Celleco Hedemora

Cleaners CLP270 (60) mad eby Celleco Hedemora

3 banks of 20 clxbank

 Celleco Hedemora CLP270 (60) — —
1 verfügbar

Esher Wyss Disperger 36" mit Zuführschnecke

Disperger 36" mit Zuführschnecke von Esher Wyss
 Esher Wyss Disperger 36" — —
1 verfügbar

Beloit Disperger 36" Beloit mit Förderschnecke

Disperger 36" mit Förderschnecke von Beloit.

 Beloit Disperger 36" 36" —
1 verfügbar

Reinigungsbirne 3/2 Kadant-Lamort

 Kadant - Lamort Poire Size 3/2 3/2 100 - 300 t/day
1 verfügbar

Heftmaschine Krupp

Einschubtiefe: 500 mm
Die Maschine ist auf 2,5mm Flachdrat von der Rolle umgerüstet.(kein Runddrat).
Starkstromanschluß: 16 A
 Krupp ZH20 — —
