machine width: 2550mm

Max. speed: 200 m/min

BW range: 30-400grs/m²

Supply voltage: 3 x 500 Volts

Steam pressure: 4 bar

Air pressure: 7 bar

Water pressure: 2 bar

Water consumption: 40 Lts/Kg

Steam consumption: 3.0 Kg/kg

PM only from headbox to pope-roll.

MACHINE DESCRIPTION

Has produced a wide range of products:
Fine papers, 60 to 220 GSM with watermark and deep colors. High quality board papers up to 400 GSM
Other specialty papers from 30 to 90 GSM

Production range is from 30 to 400 GSM running at 50 to 220 m/min.

Paper with at reel is 2550 mm max.

Capacity is up to 3500 Kg/h.

Main characteristics is its formation uniformity CM and MD, gradual drying rate both wet and steam dried.

GENERAL DESCRIPTION

FORMING SECTION WITH DANDY ROLL

It is a Fourdrinier type with removable table for wire change, cantilever couch roll, closed headbox for optimal flow rate at any speed and watermarking Dandy Roll.

PRESSES

Three 80 kg /cm2 presses, 2 lower felt and a 3rd upper felt, allowing good drying capacity and surface smoothing.

Water content after presses is about 50% below 120 GSM.

DRYING

Consist in a main battery of 18 driers of 1250 mm diameter, in 3 drive sections with drying felts on both sides.

Post drying after size press is done with 6 driers, 4 of 1000mm dia and 2 1250mm diameter in one drive section, with automatic paper moisture control.

All driers tested at 4 Bar, heated with steam at 3.7 Bars max.

All sections covered by a recovery heat hood that allows pocket ventilation at 90 degrees Celcius.

SIZE PRESS

Two rubber 350 mm diameter rolls working at 20 Kg/cm allows sizing with starch and latex.

CALENDER STACK

Küsters 400mm dia King roll, 2 intermediate 330mm dia rolls and un upper 400mm dia Queen roll that can be used as a one pass or three pass calender up to 80 Kg/cm.

MACHINE DRIVE

It is a line shaft with conical pulleys, pneumatic clutch and angular reducer for 11 sections. Motor drive is 300 Kw dc.

SECURITY PAPER MACHINE

• ·  Deckle : 2,55m
• ·  Max Speed : 220m/min
• ·  Basis weight range : 40/400gsm
• ·  Headbox : pressurized / Stainless steel built in 2003
• ·  Fourdrinier with foils, 6 vacuum boxes, Couch Roll with vacuum
• ·  2 vertical presses with bottom felt – max 80kg/cm
• ·  1 vertical presses offset – max 80kg/cm
• ·  18 Drying cylinder – Diameter 1,25 m – 3,7 ata steam pressure
• ·  Inclined Size-Press – working pressure 20kg/cm
• ·  6 Drying cylinder – Diameter 4×1,0m + 2×1,25 m – 3,7 ata steam pressure
• ·  High efficiency hood
• ·  Machine Calender – 3 NIPs – Kuster bottom roll
• ·  Vertical Reel up (Pope
• ·  ABB supervision & gauges for Moisture & basis weight control

• Product portfolio
• 1). security papers, like for checkbooks, fiscal stamps, minutes for notaries
• 2.) papers for wine labels,
• 3.)  bristol cardboard for various commercial applications, like posters, bookstore,
• 4.) papers with watermark,
•
• 4.) plasterboard

• Operational Features: The very versátiles headbox with both option to run either with vacuum or with pressure between 0.5 abd 1.15 % of consistency and a forming table with a vacuum system, that let the operators to work with less or more water on the table…

• It had a very flexible, multiple  vacuum system, where you could easaly regulate the amount of water to handled on the table…

• Production Mix : ThePM was continuously switching from one grade to another,  between 40 and 330 gr/sqm of basisweight.

Low pulse headbox pressure screen made by Escher Wyss Type LPS 41

Hydraulische Kanal-Ballenpresse mit automatischer Drahtverschnürung vom Hersteller Lindemann
Ballenabmessung: B 800 x H 800 x L 1200 - 1600 mm
Ballengewicht 350kg bei 1300 mm Länge
Drehstrom-Kurzschlußläufermotor 40 PS

Verfügbar ab Ende November 2023

80 Stück gebrauchte Segmente für Scheibenfilter Hedemora  3,6 m Scheibendurchmesser

Type: KRTF 150 -315

Capacity: 188.59 m³/h

Height: ca 6,5 m

Motor: 7,5 KW / 950 RPM

Gebrauchte Vakuumpumpe Nash  CL904

Second hand packaging line

Following equipments are availaible for sale:

Slab press with hydraulic system
Conveyors between Slab and Bale press, including weighing conveyor
Bale press
Wrapping Applayer
Inkjet Marker
Wrapping Folder
Wire tyer (bale)
Stacker
Wire tyer (unit)
Chain conveyors

Gebrauchter älteren Typs Drucksortierer SP 800

Used paper machine
Products: High performance fluting paper
Testliner 3 one lay
Wire width: ca 3360 mm
Net width: ca 2800 mm
Production capacity: ca 200 t/day
Grammage range: 90 – 150 GSM
Speed: mechanical 500 m/min, production 450 m/min
Paper machine efficiency 94 %
Predrying section installed: ca. 1990.
Postdrying section installed : 1960 ies, with replacements more recently.
Power requirement: Ca 4 MW for paper line
- No basement is required for installation. The entire paper machine is at level 0

Consisting of following main components:
Approach flow system 3 HD cleaner Black Clawson
3 Pressure screens Black Clawson / Ahlstrom
Fan pump / Stock pumps Made by Scanpump
In stainless steel
Headbox: Year ca 1990
Made by Allimand with
Cross flow distributor
22 spindle adjustments
Wire section: Made in stainless steel
Press section 1. Press
2. Press
Drying section Drying cylinders with 10 bar, casted by SAFEM /France
Size press
After dryer section
Hood Supplies by Bellmer
www.paptec.com ID: 5635 3/4
Measurex scanner Year 2002
Turn up System: Made by IBS Type RCS 3001
Pope reeler ca 5 units Tambours
Overhead crane
Vacuum system Hibon vacuum pumps
2 x size 140
2 x size 50
Size press kitchen
Rewinder Made by A Celli
Bale width 3100 mm
Refurbished ca 2015 by Thiry Belgium
Speed ca 1500 m/min
Steam and condensate
system: Continuously updated
Starch preparation
Hydraulic unit
Continuously updated controls
Lot of spare parts, for every press roll min 1 spare roll included
Big assortment of felts
Control system: The currently installed control system is connect-ed with the still running part of the mill and not available.
Stock preparation: The stock preparation is not available. Currently we can provide a stock preparation line from an-other location.

Komplette TMP - Anlage für eine Kapazität von ca 250 tato - 90.000 t/Jahr mit vielen Neuaggregaten

War 6 Monate in Betrieb

Wellendurchmesser 205 mm

Voith Softkalander for the paper machine working width of 4200 mm

Used vacuum pump type Nash 904 R1 in good condition

Included: motor, pulleys, belt guard

Technische Information:

Taschenformat: Breit 120 – 280 mm  Länge 180 – 325 mm
Auslauf: Pöppelmann Ø 10,5mm & Ø 17,5mm   Menshen Ø 10,5mm
Geschwindigkeit: bis zu 50 Beutel/min, abhängig von der Folienkombination
Folientypen: PET-O / Alu / PE    PET-O / PA-O / PE
                     PET-O/PE mit/ohne EVOH
                     PP-O/PE mit/ohne EVOH
                     PA-O / PE
                     PE-O / PE mit EVOH
Filmstärke: 80 – 280µ

- Schneidwerk längs und quer für das Schneiden von Tafelpressspan

- Arbeitsbreite Längs ca. 2.300 mm

- Arbeitsbreite Quer ca. 4.400 mm

- ohne SPS Steuerung, Steuerung erfolgt über Lichtschranken, Pneumatik und Zeitrelais

- Schneidtechnologie: Schneidmesser

- stufenlose Positionierung der Messer entlang der Messerwalzen

- Eintauchtiefe der Messer variabel Einstellbar

- Originaldokumentation teilweise vorhanden

- Maße Schneidwerke, Zuführtisch, Umlenktisch, Abgabetisch: 11,0 x 7 m (L x B)

Width:                2.150 mm

Max cut length:   5.000 mm

Min cut length:      600 mm

Flute type     B, C, BC          B FLUTE: 3mm    C FLUTE: 4mm    BC FLUTE: Double Wall – 6mm -Combination of B + C flute

The corrugator itself is consisting of the following main components:

Inlet consistency:

min: 1,2 %

Optimal: 4 %

Max: 7 %

Outlet consistency:

Min:

Optimal: 12 %

Max: 20 % and more depending of pulp

Gebrauchter Siebkanal für Turboseparator Voith ATS 20 in gutem Zustand

Pressure screen for medium consistency up to ca 4,5 %

Used stock pump made by Andritz S 125 - 265

Pump height: 18 m

Power: 15 kw

Capacity: 30 - 84 m³ /h

Ahlström THN 12

Förderhöhe: 16m

Fördermenge: 41,7l/s

Voith L300-IV-12,5/15

Förderhöhe: 19m

Fördermenge: 1200l/min

Ahlström KHP 10

Förderhöhe: 45m

Fördermenge: 16,7l/s

Ahlström THP 12

Förderhöhe: 33m

Fördermenge: 70l/s

Ahlström THL 10

Förderhöhe: 10m

Fördermenge: 17,5l/s

Gebrauchter Headbox

Slice width: 2.900 mm

Max. flow rate: 33.700 l/min

Min. flow rate: 13.800 l/min

Design speed 800 mpm

Trommeleindicker vom Hersteller Wandel der überholt wurde

Trommelmass ca 1,25 x 3 m

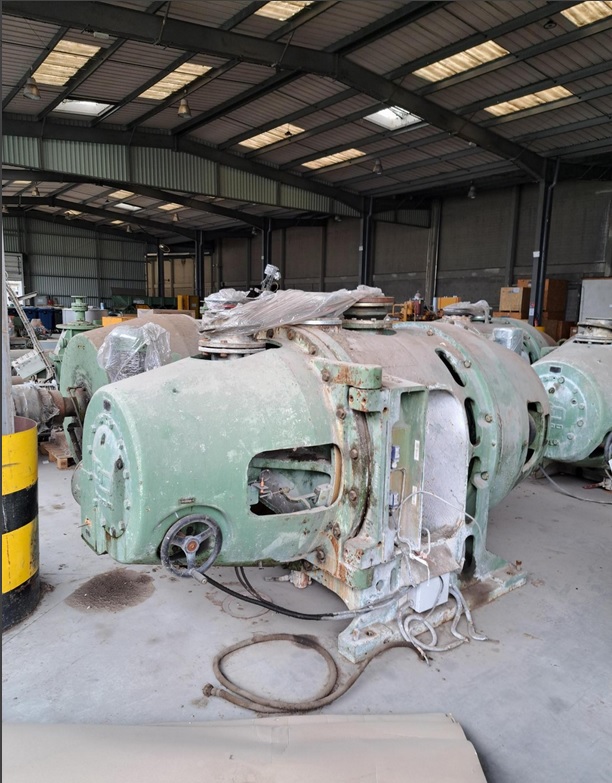

Refiner 42″ Beloit DD3600 Mono-Flo DF05 (upgrade DD3000 floating rotor with GL&V)

Min Refiner Flow =  3448 l/min

Max Refiner Flow = 10766 l/min

MOTOR CHARACTERISTICS

Manufacturer : SIEMENS

Tension = 5500 Volts

Power = 1200 Kw

Intensity = 150 A

Speed = 1489 RPM

Frequency = 50 Hz

Type = 1LA1 504-4HE 60-Z

GEAR BOX CHARACTERISTICS

Manufacturer : Elli Seites

Gear ratio : 2,833

DISCS CHARACTERISTICS

Hardwood pulp (DF03 ; DF04 ; DF05) → VALMET BJ42D85 or AFT Mini-segments MS4215061336-1

Softwood pulp   (DF01 ; DF02)             → AFT Mini – segments MS3815102032-1 (38″)

• Four blanket-to-blanket printing units, 4 colours on both sides of the web
• Double circumference blanket cylinder, single circumference plate cylinder
• Former and cylinder folding, cut off length 444 mm
• Max. speed 60 000 sheets/h, 7.4 m/s
• Normal test printing speed 50 000 sheets/h
• Web width 42 - 55 cm, most common 50 cm

Second hand LC  Refiner Enso Bauer 442 M:

Diameter 813 mm

Rotation speed: 530 mm

Load max.: 250 kW

Feed consistency: 2 - 5%

Through put: 200 - 2400 l/min

Dimensions within frame 1000 x 1400 mm
Moving table dimensions 1030 x 1440 mm
Max. cutting dimensions (without frame) 1000 x 1420 mm
Max. sheet size 1015 x 1445 mm
Speed 750 - 1200 sheets/hour
Motor power 9 Kw
Total power 11 Kw
Dimensions 2560 x 2230 mm
