Papiermaschinen
| Hauptbild | Name | Hersteller | Typ | Größe | Kapazität | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

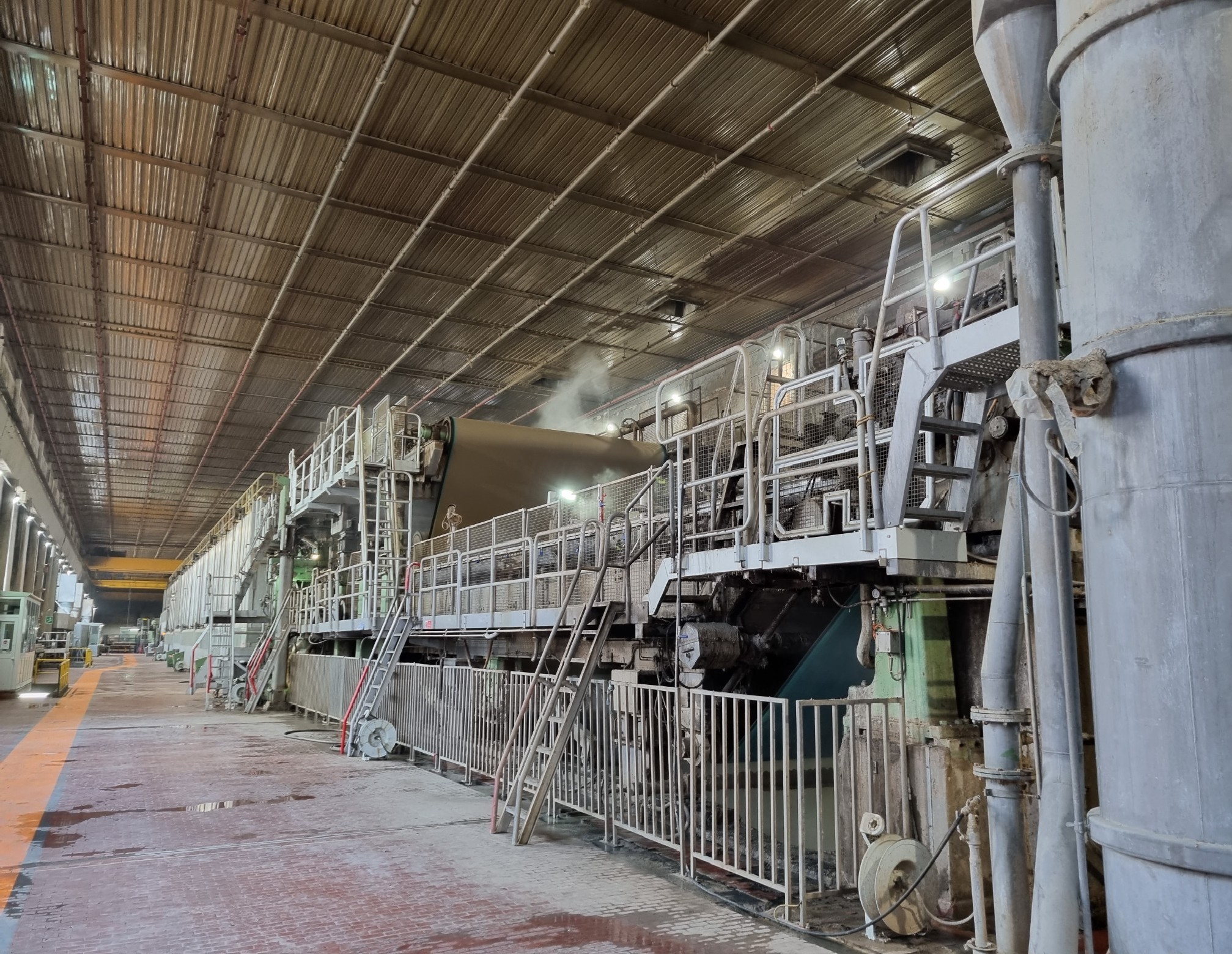

| — | Paper and board machine for 2500mm, up to 350GSM
|
— | upto 350 GSM | 2500mm at reel | 100 Tons per day | ||||||||||||||||||||||||||||||
1 verfügbar |

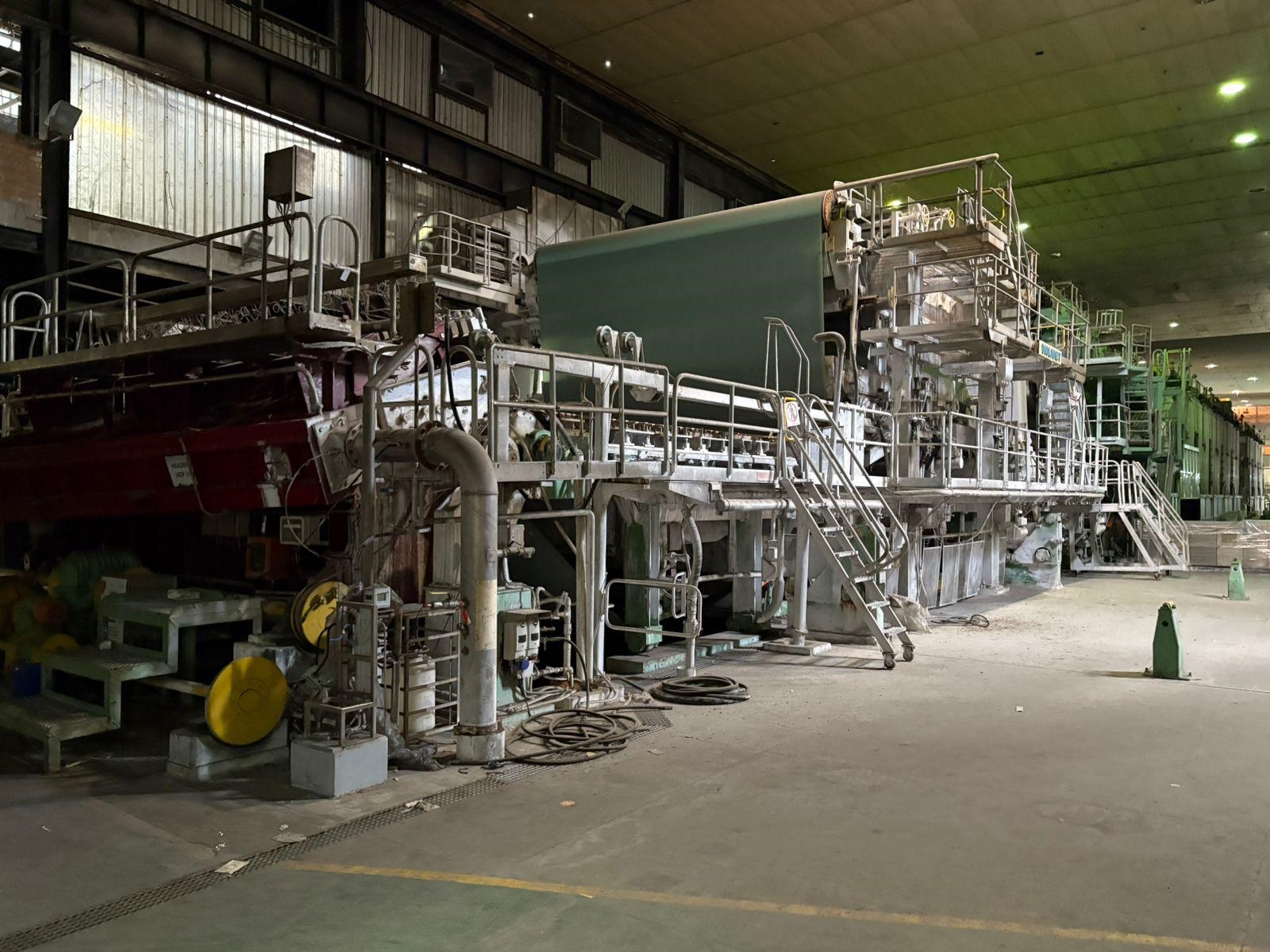

Paper machine for 5320mm, 300t/dDetails; Basis weight (g/m²) 32 – 62 Products LWC (Lightweight Coated), MWC (Mediumweight Coated) Maximum production speed 1248 m/min Machine section HC Top Former Discharge width 5706 mm Trimmed width Reel 5320 mm Machine section HC Top Former Wire width 5910 mm Main drive system Single motor drive Electrical connection 50 Hz |
— | Top former Fourdrinier | 5320mm at reel, 32-62 GSM | ca. 300-400t/d & 1200m/min. | ||||||||||||||||||||||||||||||

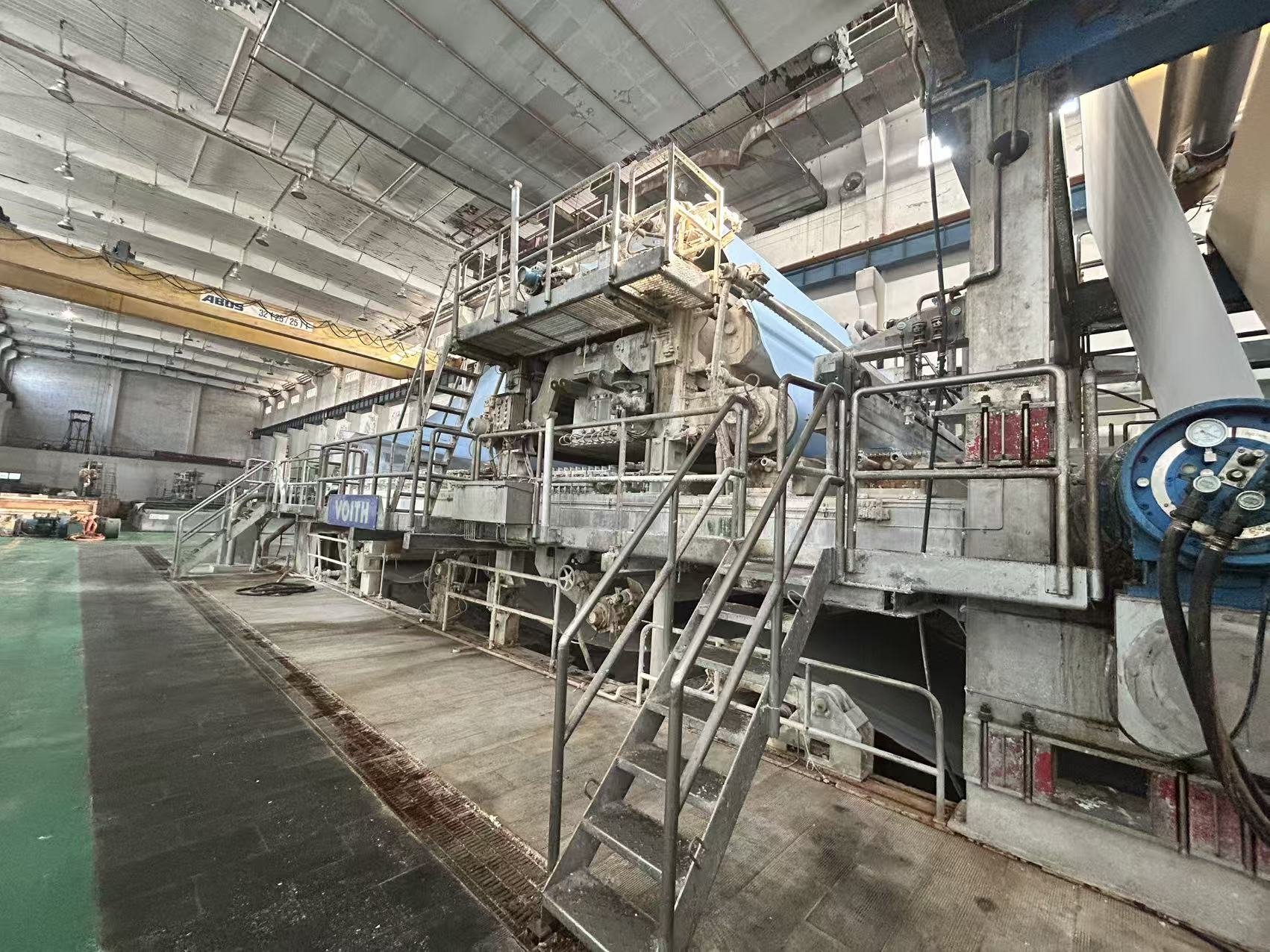

| — | Paper machine 6,3 m with stock preparationSecond hand paper machine with stock preparation: Final sheet width : ca 6,3 m Two ply Fourdrinier Forming section One conventional press One extended nip press 72 drying cylinders Single nip soft roll above heated roll calendar
Stock preparation plant Waste paper plant production 450 t/d Conveyor Pulpers Ragger Trashwell grapple Trash screen Screen trommel...
Rebuilt in 1990's 2000's broke Pulper installed |
Black Clawson | — | — | — | ||||||||||||||||||||||||||||||
1 verfügbar |
Paper machine for coated paper productionPaper Machine: Beloit Coated Wood Free
Final paper gsm: 40-160 Base paper gsm: 30 - 110 Max width: 2,8 m Max speed: 730 mpm
Approach: 4 stage cleaners; 3 stage screen slot 0,25 mm +dilution screen Headbox: Voith ModuleJet Wire width: 3500 mm Press section: (2) press + offset Pre drying section: Beloit type 4140,(4 group double felted) Dryer diameter: 1522 mm
Post drying section: (17) IR row; (1) air dryer BMB + (3) dryer One speed sizer
Kuster roll for hardnip calander Pope reel : Centerwind QCS AccuRay 1180 Winder wih 1100 m/min.
make: VariPlus 2000
Steam pressure: 2,8 bar
Number of dryier: 36 Precoater: BillBlade Two supercalenders available
Calender 1:
Nip: 11
Max. Speed: 650 m/min.
Make : Kleinwefers
Operationing Speed: 450 m/min.
Supercalender 2:
Nip: 9
Max. Speed: 500m/min.
Operating speed: 300 m/min.
Flat table section: (length 14.5 m; width 3.30 m).
Forming board; - N. 10 single foils; - N. 3 hydro foils - N. 4 vacu foils; - N. 1 enervac - N. 1 dandy roll, diameter F 1,000 mm; - N. 10 flat boxes (suction boxes)
Press section:
First pick-up and granite press; - Second fabric press; - Third reverse press; - Fourth smoothing press.
Coating section:
N. 3 dry patina filtration stations, with Ronnigen filters;
N. 2 Beloit scraping blade coating heads, with Training blades - floated nip (applicator + support);
N. 2 gas infrared ray stations;
N. 1 infrared ray station for lateral profile control;
N. 1 air hood on the felt;
N. 1 group with n. 2 drying cylinders;
N. 1 group with n. 4 drying cylinders |
— | Coated paper production with online coating 2.8m, | 2.8m | 730m/min. ca. 130 T/D. | ||||||||||||||||||||||||||||||
1 verfügbar |
Paper machine 3520mm, 120 tpd, VoithDesign speed: 800 m/min, Operating speed: 700 m/min, Basis weight: 30 upto 60 g/m² Hydraulic headbox, 14.5 m wire section with top former Press section: 606 press (750/750/750) + main press (1000/550) Dryer section with 28 dryer cylinders One film size press One four-roll soft calender, two scanners One pope reel, one rewinder (2200 m/min) Vacuum system, drive system, ABB frequency converters Production capacity: ca. 120 tons/day Complete paper machine (excluding pulping section) Scope: from approach flow screening system to rewinder Equipped with a Voith rewinder with design speed of 2000 m/min |
Voith | Light weight gsm fourdrinier machine | 3520mm | 120 TPD, 800 mpm | ||||||||||||||||||||||||||||||
1 verfügbar |
Paper machine 5.69m, 450 t/dayManufacturer: Beloit Walmsley Grammage range (g/m2) : 46-120 Grades: Copy paper, offset, script, envopost Max speed (m/min) : 1000 Production per year (t) max: 160000 Headboxes type: ConverFlo headbox Press configuration: Beloit TriNip Press Dryness after press: 44% Nr. cylinders before size press: 34 Nr. cylinders after size presss: 16 Cylinder diameter size press: 1260mm Calendar: Yes Quality control system: Metso QCS
Also, Stock Preparation plant for this machine is available. |
Beloit-Walmsley | Fourdrinier paper machine | 5.69 m | 1000 m/min speed and ca. 160000 Tons per year | ||||||||||||||||||||||||||||||
1 verfügbar |
Double layer paper machine 4640 mm trimmed w.Top headbox: 5180 mm outlet Bottom headbox: 5000mm outlet GSM range: 115-200 g/m2 Speed: upto 720 m/min. Max. drive speed: 750 m/min. Width after rewinder: 4640 m Production type: Brown paper for container board Press section: 2 Presses Press 1: Uni Press : 70Kg/cm Press 2: High impulse Press: 300kg/cm Cylinder dryers: 46 preheating section, 20 post dryers, 66 in total Design speed: 1000m/min. Starch press: roll dia: 700mm and 950 mm QCS: Manufacturer: Voith, year 2010s With rewinder
Stock preparation Stock Preparation Line (Optional) The stock preparation line is composed by - a set of high-density Cyclones, - 2 stages of coarse screening process.
The stock for each ply is treated also with 3 stages of fine screening. High Density Cyclon D2C-S Voith 4 Coarse Screening FS3B Escher Wyss 1 Coarse Screening FS2B Escher Wyss 1 Fine Sceening (Botom Ply) Sund Defbrator T9 Metso Paper 1 Fine Sceening (Botom Ply) Sund Defbrator T6 Metso Paper 2 Fine Sceening (Top Ply) Sund Defbrator T9 Metso Paper 1 Fine Sceening (Top Ply) Sund Defbrator T6 Metso Paper 2 Thickener Augers M70 Maule 8 Refners Major 30 " Black Clawson 1
Rewinder A slitter-winder (Valmet Win-Drum) installed in 2000s max working width of 5'300 mm. Max. parent roll diameter 2'700 mm Max. trimmed width parent roll 5'300 mm Max. operating speed 2'500 m/min Max. roll diameter 1'500 mm Max customer reel width 700 – 2'800 mm Max. Customer reel weight 3‘000 kg Customer Reels per hour 20 – 30
|
KMW Carcano | Double ply fourdrinier Machine | 4.64 meters trimmed width | 115-200 GSM and max. speed 750 m/min with Production: ca. 800 Tons per day | ||||||||||||||||||||||||||||||
1 verfügbar |
Tissue paper production line 60 t/day with stock prep. and rewinderManufacturer: Mitsubishi-Beloit + Stock preparation for virgin pulp
|
Mitsubishi Beloit | — | 2400 mm | 60 t/day | ||||||||||||||||||||||||||||||
1 verfügbar |
Tissue paper production line 60 t/day with stock prep. and rewinderlocation: Asia Manufacturer: Sulzer Escher Wyss (Germany) Type: Tisco Former Yankee Dryer Diameter: 4,7 m Paper width on reel: 2400mm Production speed: up to 1500m/min Grammage: 13 to 45gsm Drying capacity: 60 tpd Raw material: Virgin pulp Drive voltage: 440V, 60Hz DCS: Metso Key products: Toilet tissue, Facial tissue, Kitchen towel, Napkin, Handkerchief paper + Stock preparation for virgin pulp Rewinder with 2 unwind stands
|
Escher Wyss | — | 2400 mm | 60 t/day | ||||||||||||||||||||||||||||||
1 verfügbar |
Parts of tissue paper machine and related approach flow systemUsed tissue paper machine availabel in parts production capacity max 80 t/day, Headbox Yankee
with approach flow system
|
European | — | ca 2,7 m | ca 80 t/day |
