Papiermaschinen

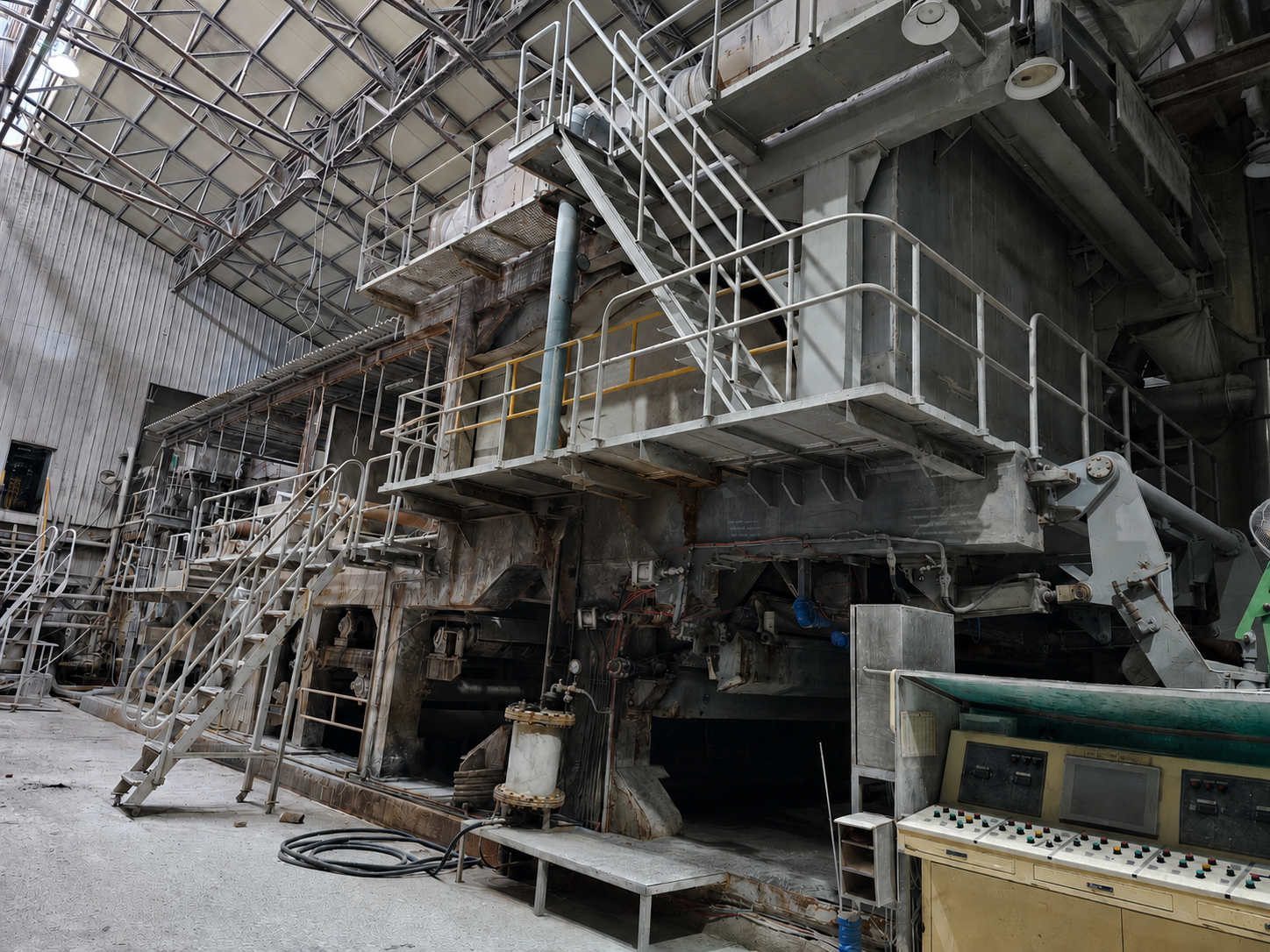

Used paper machine
Products: High performance fluting paper
Testliner 3 one lay
Wire width: ca 3360 mm
Net width: ca 2800 mm
Production capacity: ca 200 t/day
Grammage range: 90 – 150 GSM
Speed: mechanical 500 m/min, production 450 m/min
Paper machine efficiency 94 %
Predrying section installed: ca. 1990.
Postdrying section installed : 1960 ies, with replacements more recently.
Power requirement: Ca 4 MW for paper line
- No basement is required for installation. The entire paper machine is at level 0

Consisting of following main components:
Approach flow system 3 HD cleaner Black Clawson
3 Pressure screens Black Clawson / Ahlstrom
Fan pump / Stock pumps Made by Scanpump
In stainless steel
Headbox: Year ca 1990
Made by Allimand with
Cross flow distributor
22 spindle adjustments
Wire section: Made in stainless steel
Press section 1. Press
2. Press
Drying section Drying cylinders with 10 bar, casted by SAFEM /France
Size press
After dryer section
Hood Supplies by Bellmer
www.paptec.com ID: 5635 3/4
Measurex scanner Year 2002
Turn up System: Made by IBS Type RCS 3001
Pope reeler ca 5 units Tambours
Overhead crane
Vacuum system Hibon vacuum pumps
2 x size 140
2 x size 50
Size press kitchen
Rewinder Made by A Celli
Bale width 3100 mm
Refurbished ca 2015 by Thiry Belgium
Speed ca 1500 m/min
Steam and condensate
system: Continuously updated
Starch preparation
Hydraulic unit
Continuously updated controls
Lot of spare parts, for every press roll min 1 spare roll included
Big assortment of felts
Control system: The currently installed control system is connect-ed with the still running part of the mill and not available.
Stock preparation: The stock preparation is not available. Currently we can provide a stock preparation line from an-other location.

Used paper machine

Trim width:                                         2280 mm

Speed:                                               600 m/min - 900 possible

Grammage range:                             45 – 200 GSM

Scope of supply: Approach flow system, paper machine,

Second hand paper machine for fluting paper

Deckle/ pope reel width:                      2550 mm

GSM range:                           80 – 250 GSM

Speed:                                    800 m/min

Capacity:                                200  t /24 h

Refurbished:                          2016 – 2017

Consisting of:

Approach flow system           Included

Headbox:                               2  / Comer

Wire:                                       Twin wire

Press section:                        Binip press with suction roll Jumbo Press

Drying section:                       32 dryers / 5 bar

Size press:                             Included

Calendar:                               Voith / Küsters

Hood:                                     New Forbes Marshal steam & condensate with heat recovery

Drive:                                     AC silent drive

Rewinder:                               Included

Voltage:                                  380 V

Stock preparation:                 Included

Water treatment:                    Krofta Sedicell and Algas filters

PARTLY DISMANTLED

Gebrauchte Langsieb Papiermaschine

Antriebe 60 Hz!

Trim width: 2500 mm

Working speed: 150 - 350 m/min

Design speed: 400 m/min

Capacity: 120 t/d

Basis weight: 90 - 215 gsm

Drive: sectional drive BYDC and AC motor, belt pulley and reducer

 Kraftliner paper machine 2950 mm

Basis Weight: 170 g/m² - 500 g/m²

Machine speed: 120 m/min (200 g/m²)

Paper Width: 2,950 mm

Capacity: 100 tpd
