Verkaufsliste

Top headbox: 5180 mm outlet

Bottom headbox: 5000mm outlet

GSM range: 115-200 g/m2

Speed: upto 720 m/min.

Max. drive speed: 750 m/min.

Width after rewinder: 4640 m

Production type: Brown paper for container board

Press section: 2 Presses

Press 1: Uni Press : 70Kg/cm

Press 2: High impulse Press: 300kg/cm

Cylinder dryers: 46 preheating section, 20 post dryers, 66 in total

Design speed: 1000m/min.

Starch press: roll dia: 700mm and 950 mm

QCS: Manufacturer: Voith, year 2010s

With rewinder

Stock preparation

Stock Preparation Line (Optional)

The stock preparation line is composed by

- a set of high-density Cyclones,

- 2 stages of coarse screening process.

The stock for each ply is treated also with 3 stages of fine screening.

High Density Cyclon D2C-S Voith 4

Coarse Screening FS3B Escher Wyss 1

Coarse Screening FS2B Escher Wyss 1

Fine Sceening (Botom Ply) Sund Defbrator T9 Metso Paper 1

Fine Sceening (Botom Ply) Sund Defbrator T6 Metso Paper 2

Fine Sceening (Top Ply) Sund Defbrator T9 Metso Paper 1

Fine Sceening (Top Ply) Sund Defbrator T6 Metso Paper 2

Thickener Augers M70 Maule 8

Refners Major 30 " Black Clawson 1

Rewinder

A slitter-winder (Valmet Win-Drum)  installed in 2000s

max working width of 5'300 mm.

Max. parent roll diameter 2'700 mm

Max. trimmed width parent roll 5'300 mm

Max. operating speed 2'500 m/min

Max. roll diameter 1'500 mm

Max customer reel width 700 – 2'800 mm

Max. Customer reel weight 3‘000 kg

Customer Reels per hour 20 – 30

Flexible coating system for water- and solvent-based media, which is used for the manufacture of semi-finished products for flexible packaging and technical products.

Main application:

• Flexible packaging: Manufacture of semi-finished products for flexible packaging.
• Technical products: Coatings for technical applications.
• Labels/adhesive films: Manufacture of label materials
• Functional coatings: Application of barrier layers or pressure-sensitive adhesives.

Main features:

• Flexibility:
• Suitable for water-based and solvent-based coating processes.
• Sleeve change:
• Enables quick change of the application sleeve without tools and without interrupting the material web.
• Versatility:
• Processes materials such as paper, polymer films, and aluminum foils in roll form.
• Drying technique (conveyor belt dryer) permits converting of tension sensitive materials e.g. PP, PE
• Quick change of coating technique (trolley technique)
• Corona treatment
• Displaceable inline dosing system for high reactive 2-component systems available
• Inline measurement of coating weight (retrofit 2019)
• Ultrasonic cleaning system for coating rollers and devices

General specifications:

Speed: 5 - 80 m/min

Winding:

Reel change: manual

Max. reel width: 750 mm

Min. reel width: 600 mm

inner core diameter: 76er, 152er (3'' + 6'')

Max. web width: 400 ym

Min web width: 40 gr/m²

Max. outer diameter: 600 mm

Max. reel weight: 2500 kg

Cutting

Typ: silhouette cutting

possible cuts: depending on track and cutting width

Max. cutting width: 600 mm

Min. cutting width: about 10 mm

Stacking

Removal: manual

Quantity reel schafts: 2  (friction shaft possible)

Max. roll width: 650 mm

Min. roll width: 10 mm

Inner core diameter: 76er (3'')

Max. carrier thickness: 400 ym

Max.roll outer diameter: 400 mm

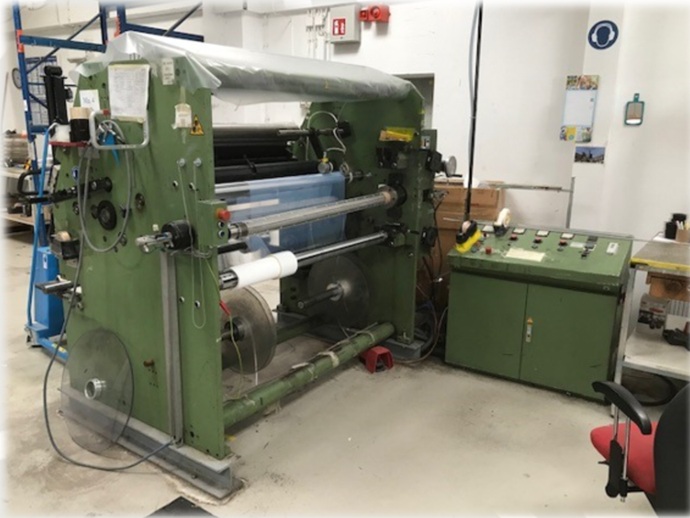

Second hand slitter rewinder 1370 mm

Speed: 5 - 80 m/min

Winding:

Reel change: manual

Max. reel width: 1370 mm

inner core diameter: 76er and152er (3'' + 6'')

Max. web width: 400 ym

Max. outer diameter: 750 mm

Cutting

Typ: silhouette cutting

possible cuts: depending on track and cutting width

Max. cutting width: 1370 mm

Min. cutting width: about 10 mm

Stacking

Removal: manual

Quantity reel schafts: 2 changing shafts (no friction shafts)

Max. roll width: 1370 mm

Min. roll width: 10 mm

Inner core diameter: 51er, 76er + 152er (2'', 3'' + 6'')

Max. carrier thickness: 400 ym

Max.roll outer diameter: 450 mm

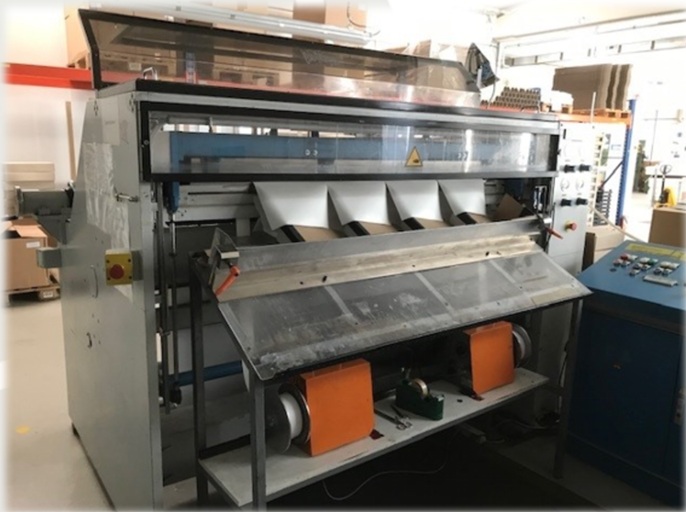

Second hand Slitter Rewinder 1420 mm

Speed: 5 - 80 m/min

Winding:

Reel change: manual

Max. reel width: 1420 mm

inner core diameter: 76er and152er (3'' + 6'')

Max. web width: 400 ym

Max. outer diameter: 750 mm

Cutting

Typ: silhouette cutting

possible cuts: depending on track and cutting width

Max. cutting width: 1370 mm

Min. cutting width: about 10 mm

Stacking

Removal: manual

Quantity reel schafts: 2 changing shafts (no friction shafts)

Max. roll width: 1370 mm

Min. roll width: 10 mm

Inner core diameter: 51er, 76er + 152er (2'',3''+6'')

Max. roll weight: 90 kg/shaft

Max. carrier thickness: 400 ym

Max.roll outer diameter: 450 mm
